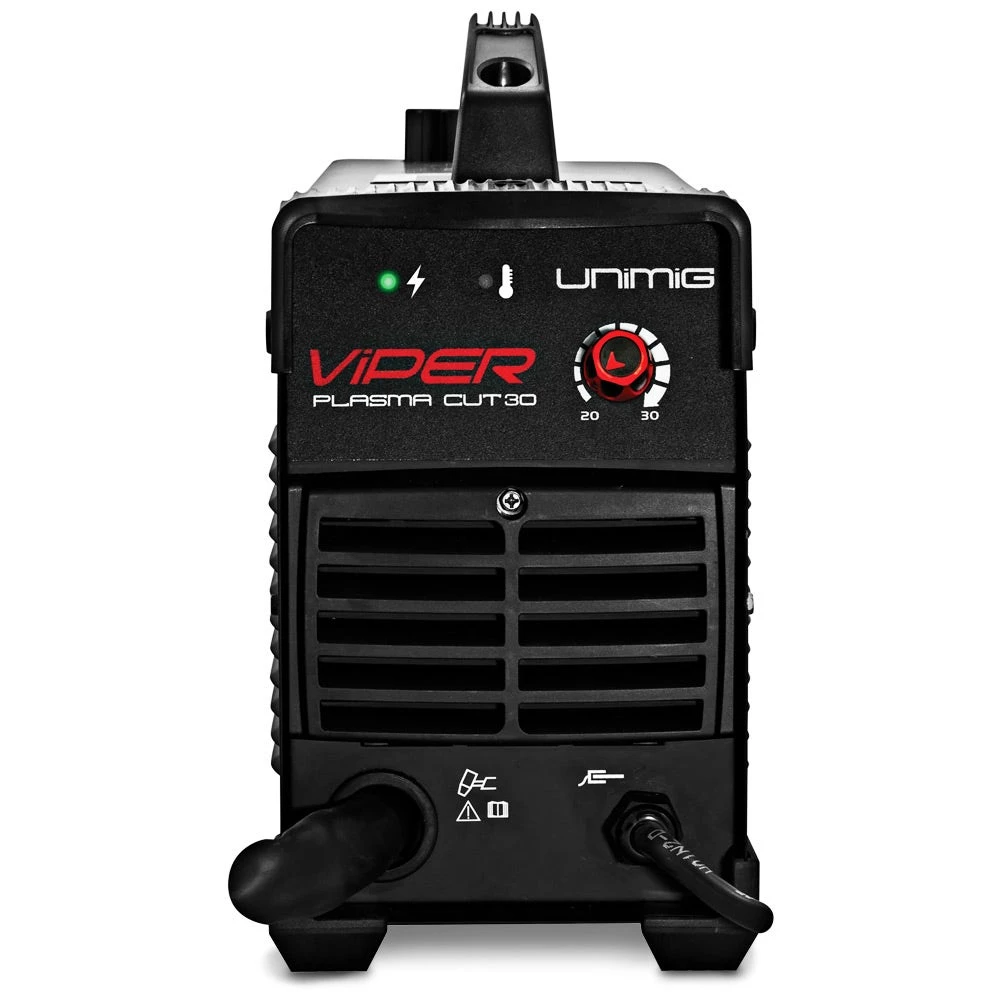

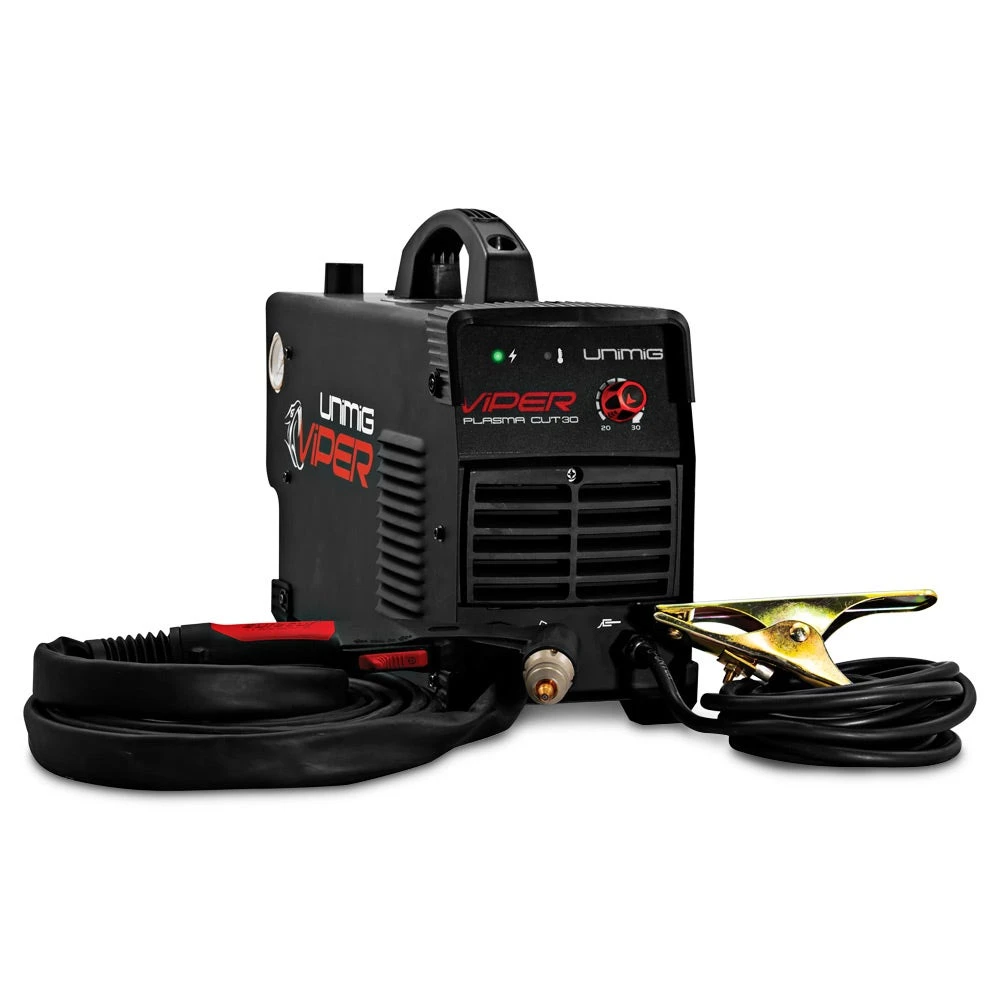

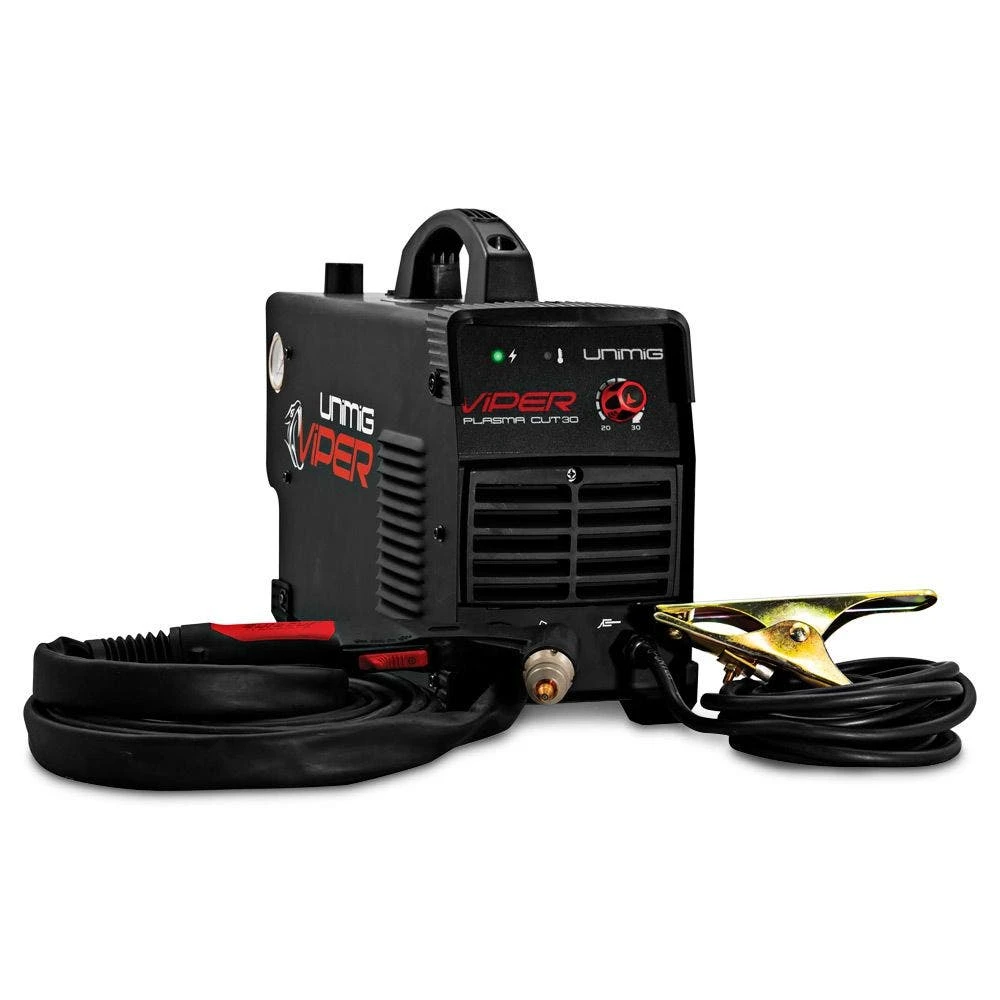

UNIMIG Viper Cut 30 Plasma Cutter KUPJRVC30

The all-new VIPER™ CUT 30 plasma cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.

Bigger doesn’t always mean better – a more effective output has allowed the VIPER™ CUT 30 to clean cut up to 12mm Mild Steel.

• 10 AMP Plug
• 12mm Clean Cut on Mild Steel
• 14mm Severance on Mild Steel
• Pilot Arc Start
• Thermal Overload Protection

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10a
• Rated Input Power (kVa): 7.5
• Rated Output Voltage (V): 310
• Air Flow Draw Off (L/Min): 170
• Air Flow Pressure (Bar): 5-6 (70-87 PSI)
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator (kVa): 6
• Dinse Connector: Direct Connect
• Standard: AS/NZ60974-1
• Plasma Cut Current Range: 20-30a
• Plasma Cut Duty Cycle @ 40°C: 15% @ 30a
• Mild Steel Cut Thickness: 12mm
• Mild Steel Severance Thickness: 14mm
• Aluminium Cut Thickness: 6mm
• Aluminium Severance Thickness: 8mm
• Stainless Steel Cut Thickness: 6mm
• Stainless Steel Severance Thickness: 8mm

Includes:

• 1 x VIPER CUT 30 Power Source
• 1 x 4 metre Direct Connect SC30 Plasma Torch
• 1 x 4 metre Direct Connect 3M Earth Lead
• Instruction Manual
