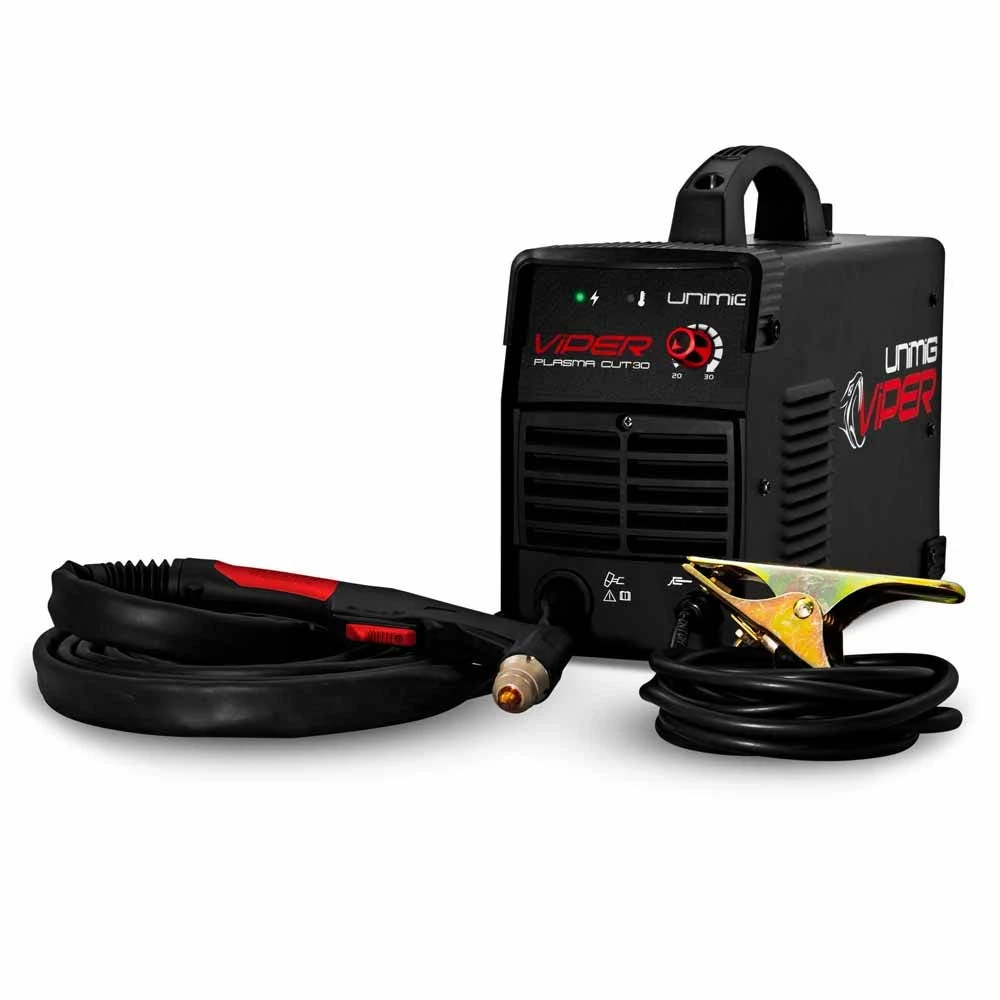

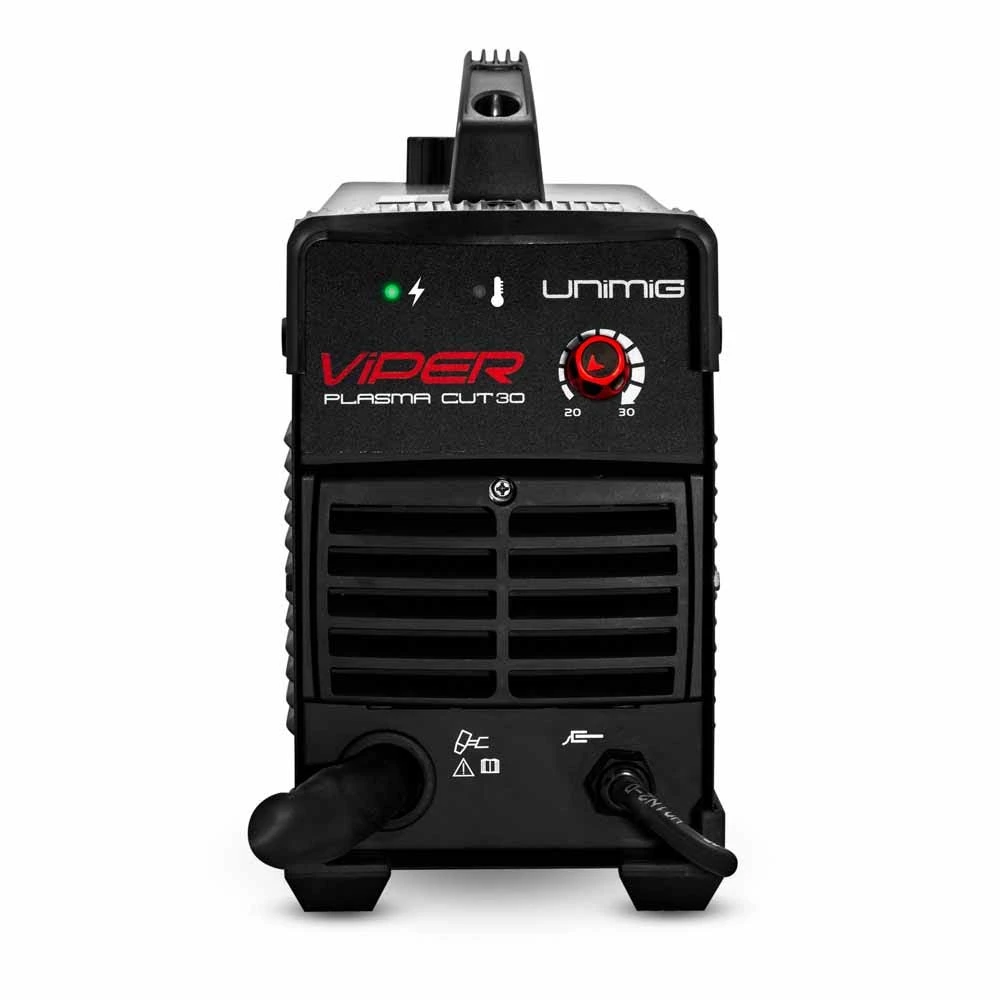

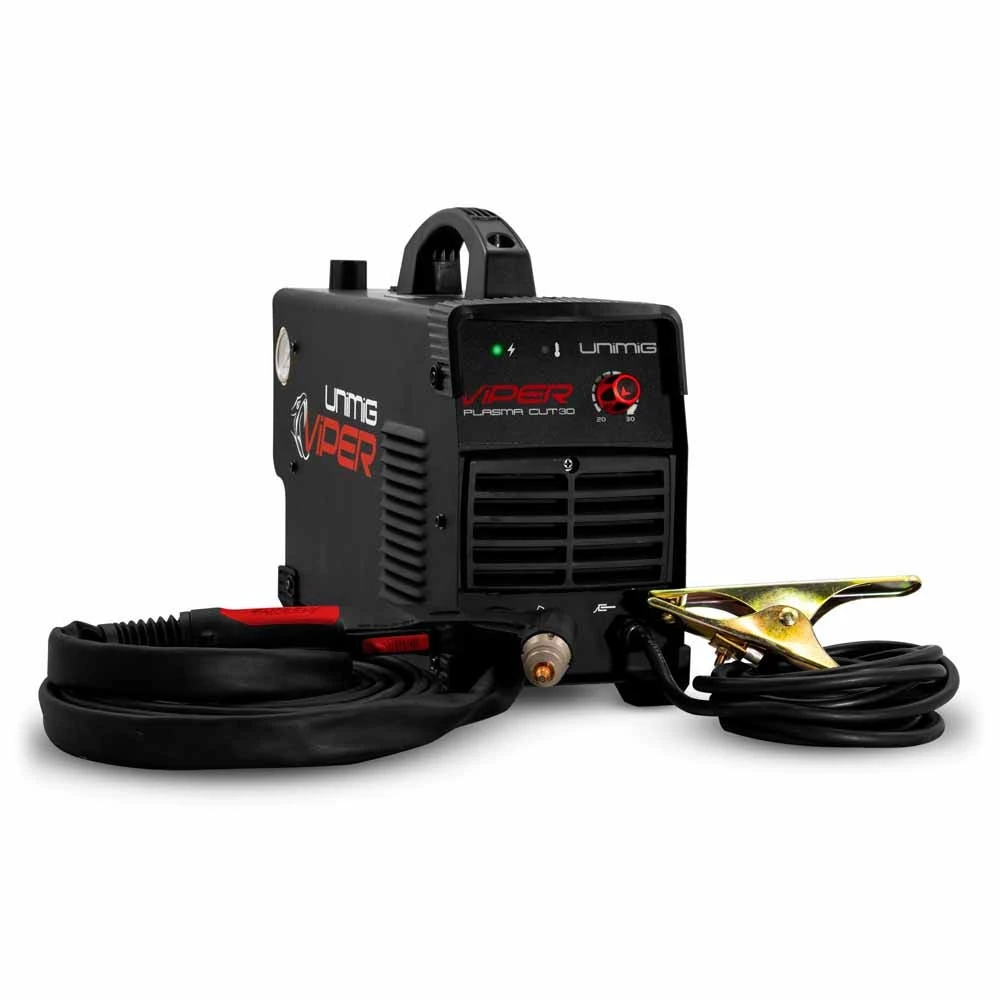

UNIMIG VIPER Cut 30 Plasma Cutter Kit PK11025

The all-new VIPER™ CUT 30 plasma cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.

Bigger doesn’t always mean better – a more effective output has allowed the VIPER™ CUT 30 to clean cut up to 12mm Mild Steel.

Specifications:

• Primary Input Voltage: 240v Single Phase
• Supply Plug: 10 Amp
• Rated Input Power: 7.5kva
• Rated Output: 92v
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator: 8.0kva
• Dinse Connector: Direct Connect
• Standard: AS/NZ60974-1
• Thermal Overload Protection: Over Temperature Warning
• Plasma Cut Current Range: 20-30a
• Plasma Cut Duty Cycle @ 40°C: 15% @ 30a
• Mild Steel Cut Thickness: 12mm
• Mild Steel Severance Thickness: 14mm
• Aluminium Cut Thickness: 6mm
• Aluminium Severance Thickness: 8mm
• Stainless Steel Cut Thickness: 6mm
• Stainless Steel Severance Thickness: 8mm
• Air Flow Draw Off: 170 L/Min
• Air Flow Pressure: 70-87 Psi
• Plasma Arc Start: Pilot Arc

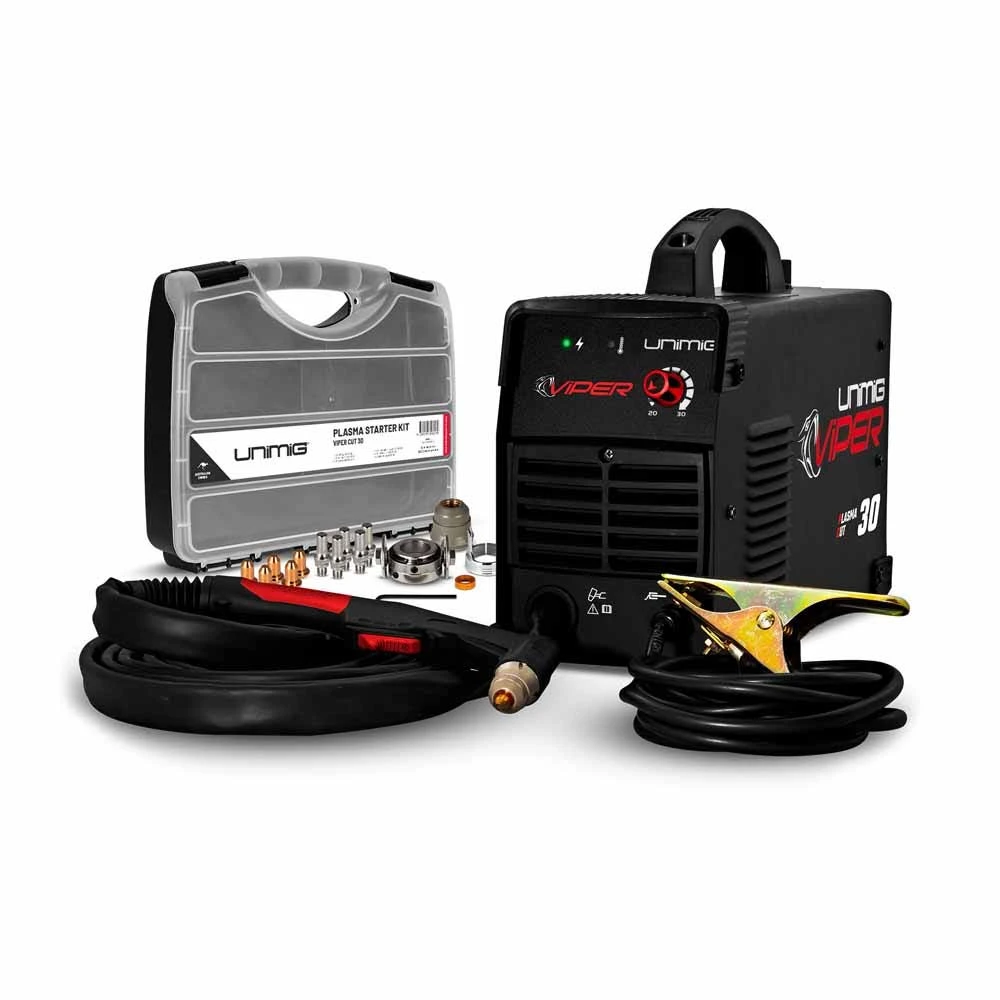

Includes:

• VIPER™ CUT 30 Plasma Cutter
• 4m Direct Connect SC30 Plasma Torch
• 4m Direct Connect Earth Clamp
• Air Regulator
• Operating Manual

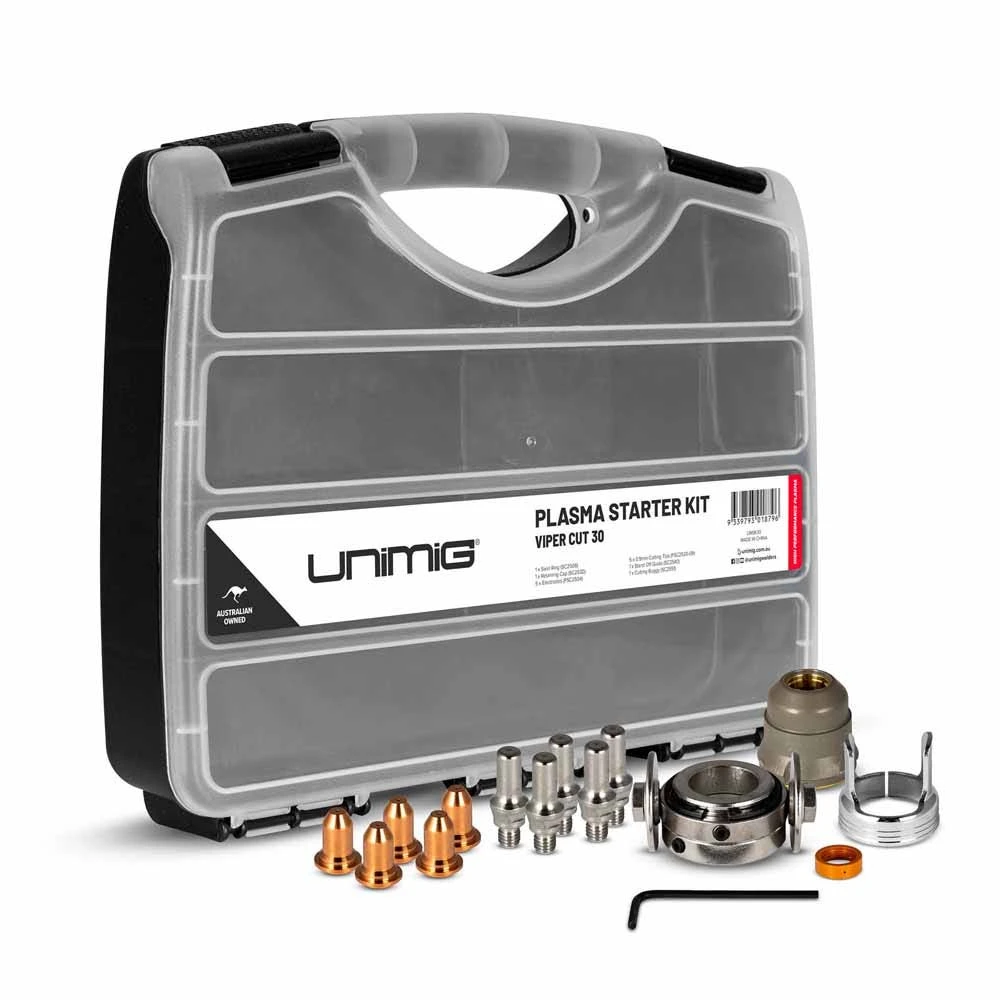

• SC30 Plasma Torch Consumable Starter Kit (UMSK30)
