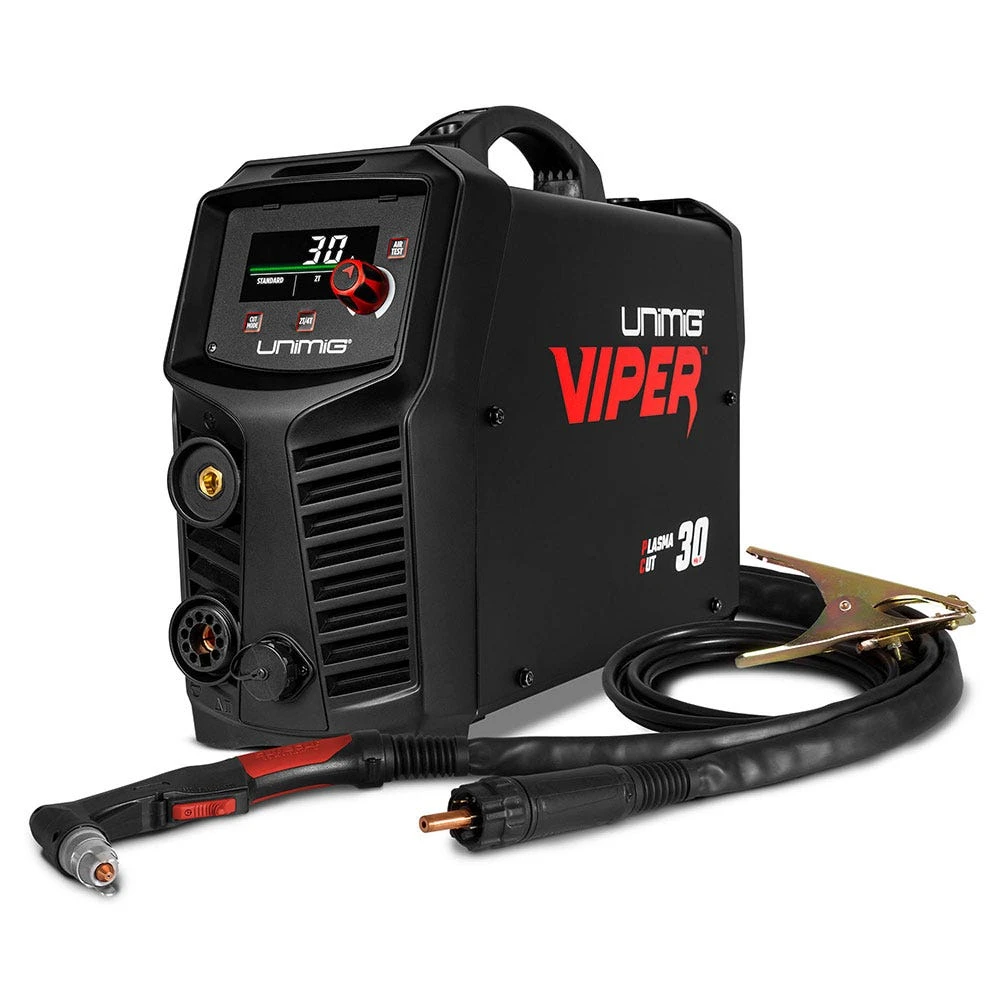

UNIMIG Viper Cut 30 Mk II Plasma Cutter U14005K

Cut anything, anywhere. Whether it’s a solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the Viper Cut 30 Mk II can handle anything you throw at it.

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10A
• Rated Input Power (kVA): 7.5
• Rated Output Voltage (V): 92
• Ieff (A): 10
• Air Flow Draw Off (L/min): 170
• Air Flow Pressure (Bar): 5-6 (70-87 psi)
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator (kVA): 8
• Dinse Connector: 45931
• Standard: AS/NZ60974-1
• Plasma Cut Current Range: 20-30A
• Plasma Cut Duty Cycle @ 40°C : 15% @ 30A, 60% @ 23A, 100% @ 20A
• Mild Steel Cut Thickness: 12mm
• Mild Steel Severance Thickness: 14mm
• Aluminium Cut Thickness: 6mm
• Aluminium Severance Thickness: 8mm
• Stainless Steel Cut Thickness: 6mm
• Stainless Steel Severance Thickness: 8mm
• Plasma Arc Start: Pilot Arc
• Thermal Overload Protection: Over Temperature Warning
