UNIMIG Viper Arc 140 Bundle PK11041

Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality UNIMIG is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG, in case you needed another excuse to purchase.

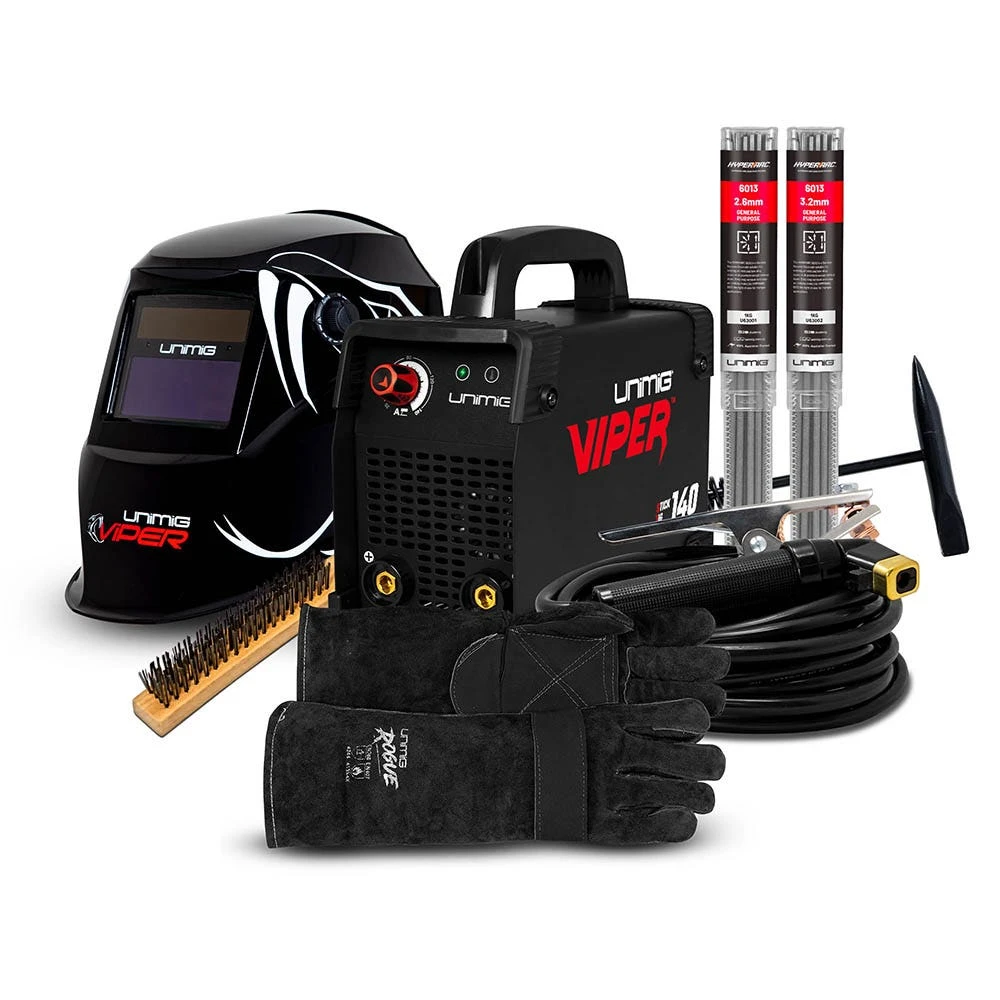

Bundle Contents:

• VIPER ARC 140 STICK Welder (KUMJRVA140)
• VIPER Welding Helmet (UMVWH)
• ROGUE Heavy Duty Welding Gloves (UMWG8)
• 2.6mm HYPERARC 6013 Electrodes 1kg (U63001)
• 3.2mm HYPERARC 6013 Electrodes 1kg (U63002)
• 4 Row Wire Brush (WB4R)
• Chipping Hammer (UMCH-HD)

Specifications:

• PRIMARY INPUT VOLTAGE – 240V Single Phase
• SUPPLY PLUG – 10 AMP
• RATED INPUT POWER (kVA) – 6.5
• NO LOAD VOLTAGE (V) – 62.9

Includes:

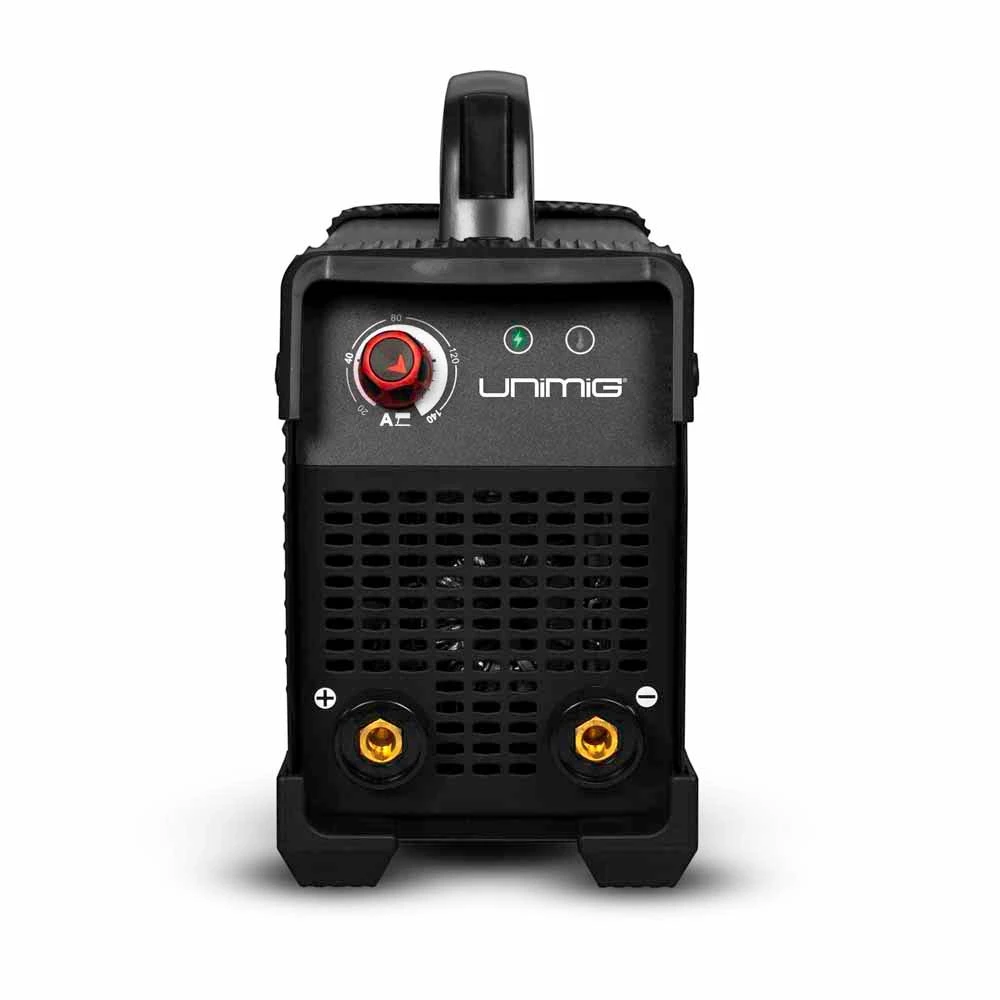

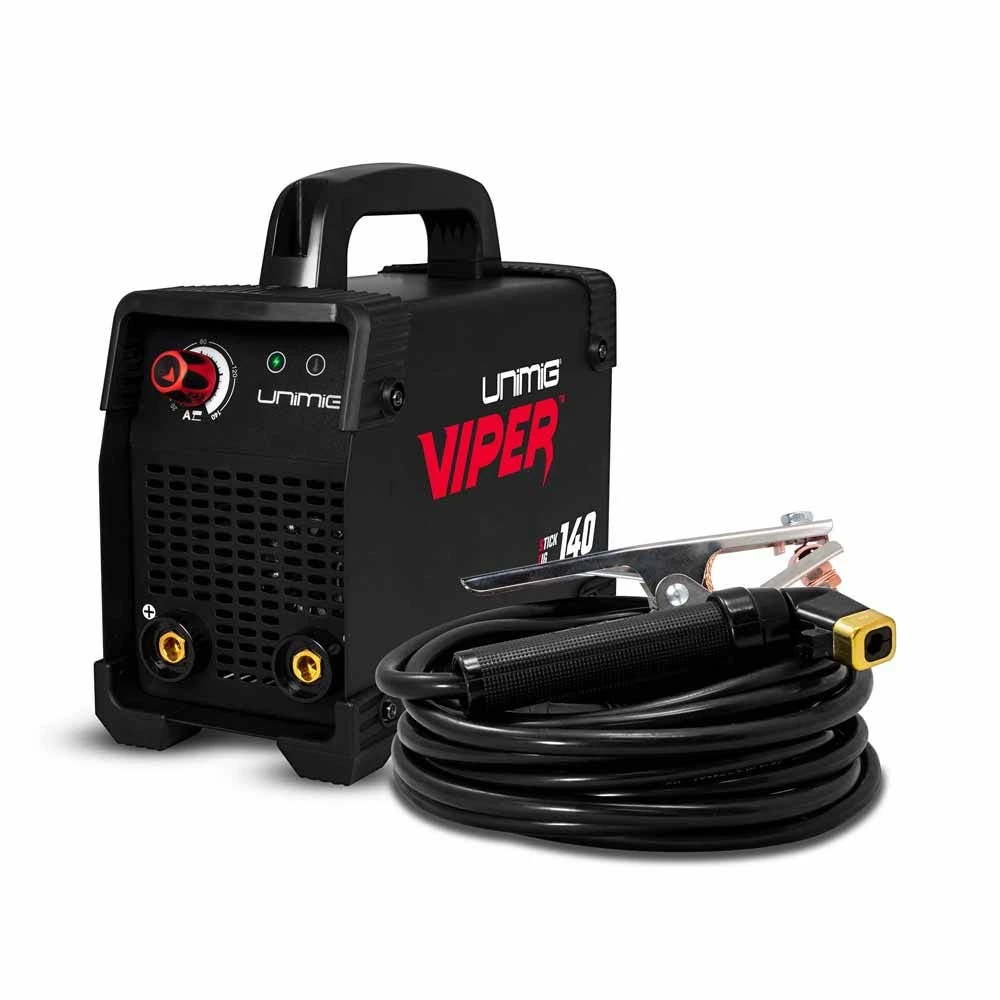

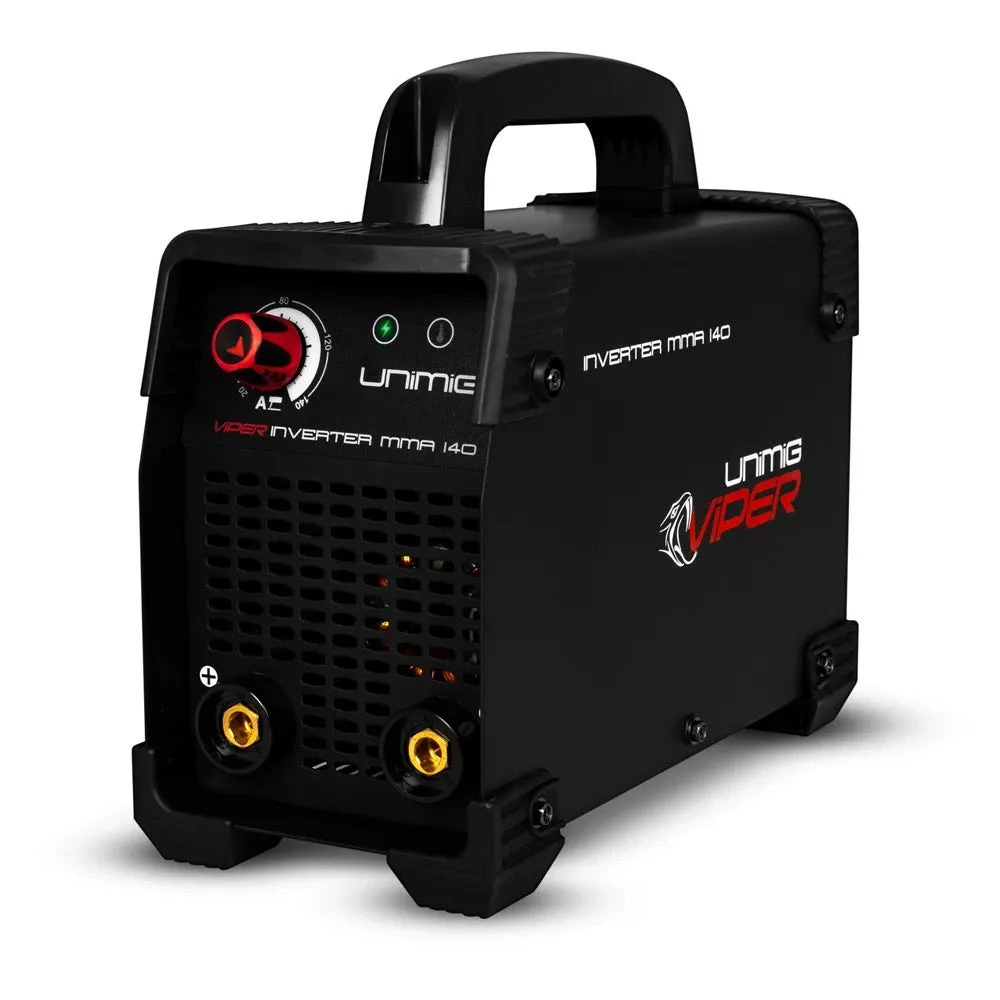

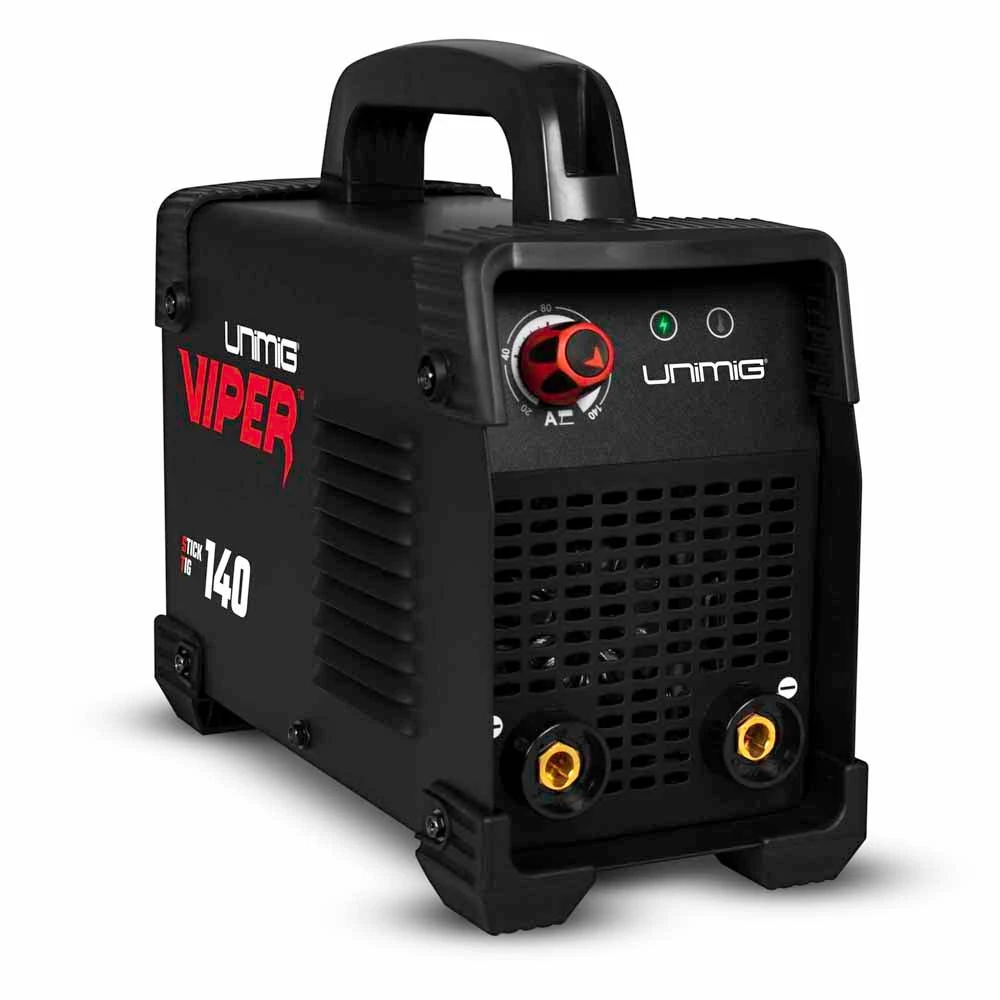

VIPER ARC 140 STICK Welder (KUMJRVA140)

Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality UNIMIG is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG, in case you needed another excuse to purchase.

10 AMP PLUG – Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

Specifications:

• Machine
  – PRIMARY INPUT VOLTAGE: 240V Single Phase
  – SUPPLY PLUG: 10 AMP
  – RATED INPUT POWER (kVA): 6.5
  – Ieff (A): 100
  – RATED OUTPUT: 10-140A
  – NO LOAD VOLTAGE (V): 62.9
  – PROTECTION CLASS: IP21S
  – INSULATION CLASS: F
  – POWER FACTOR: 0.65
  – MINIMUM GENERATOR (kVA): 8.0
  – DINSE CONNECTOR: 10/25
  – STANDARD: AS/NZ60974-1
  – SUITABLE MATERIAL: Mild Steel, Stainless Steel, Copper, Cast Iron



• TIG
  – TIG FUNCTION TYPE: DC Scratch Start
  – TIG WELDING THICKNESS RANGE: 1-5mm



• Stick
  – STICK WELDING CURRENT RANGE: 20-140A
  – STICK DUTY CYCLE @ 40°C: 15% @ 140A
  – STICK ELECTRODE RANGE: 2.5-3.2mm
  – STICK WELDING THICKNESS RANGE: 2-8mm

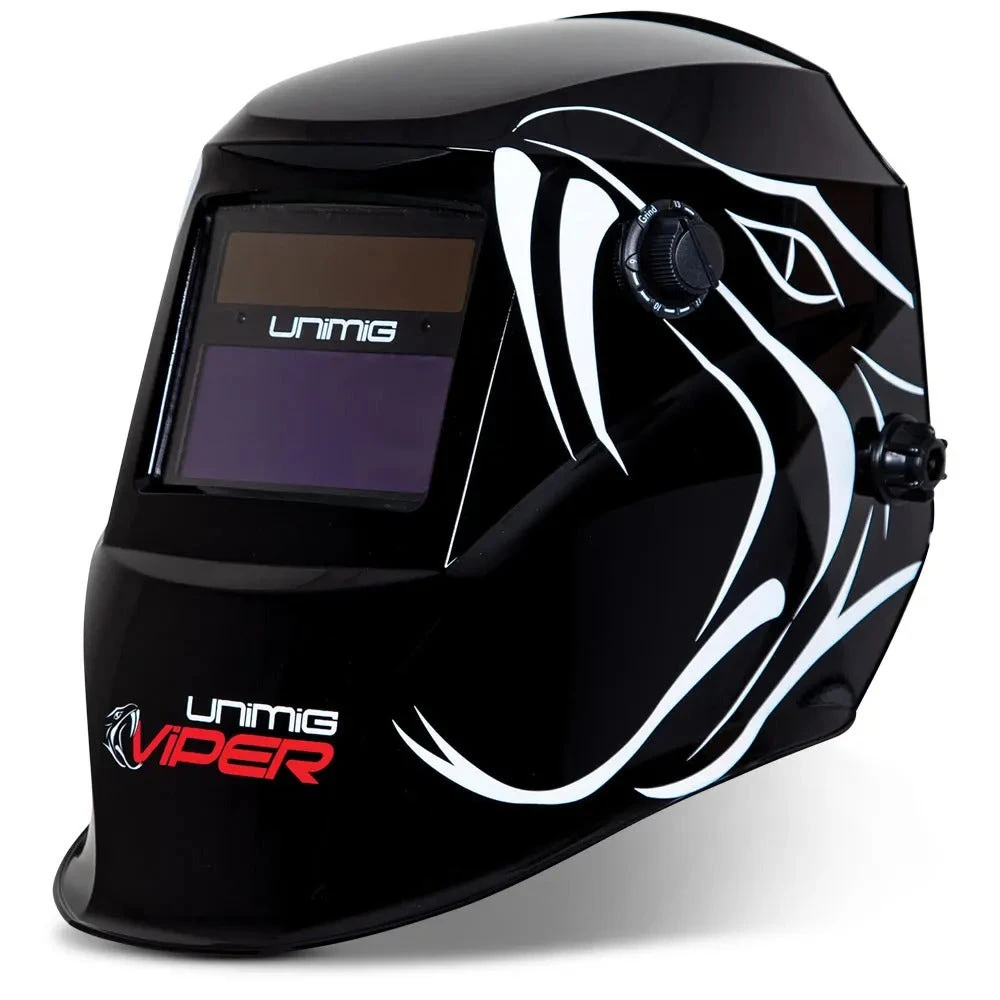

VIPER Welding Helmet (UMVWH)

The VIPER Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 2 arc sensors, the VIPER Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding.

The VIPER Welding Helmet comes with TRUE COLOUR VIEW lens technology to ensure you always get a clear and natural view of your surroundings and work piece.

• 96x42mm View Size
• 9-13 Shade Control
• 2 Arc Sensors
• Grind Mode

ROGUE Heavy Duty Welding Gloves (UMWG8)

The ROGUE™ Heavy Duty Welding Gloves are built for high heat and intensity MIG welding and plasma cutting. Made from heat and flame-resistant premium split cowhide and high-strength Kevlar stitching which adds durability and comfort when you need it most.

• Premium cowhide leather
• Reinforced palm
• High-strength Kevlar
• 400mm length / 680mm Length

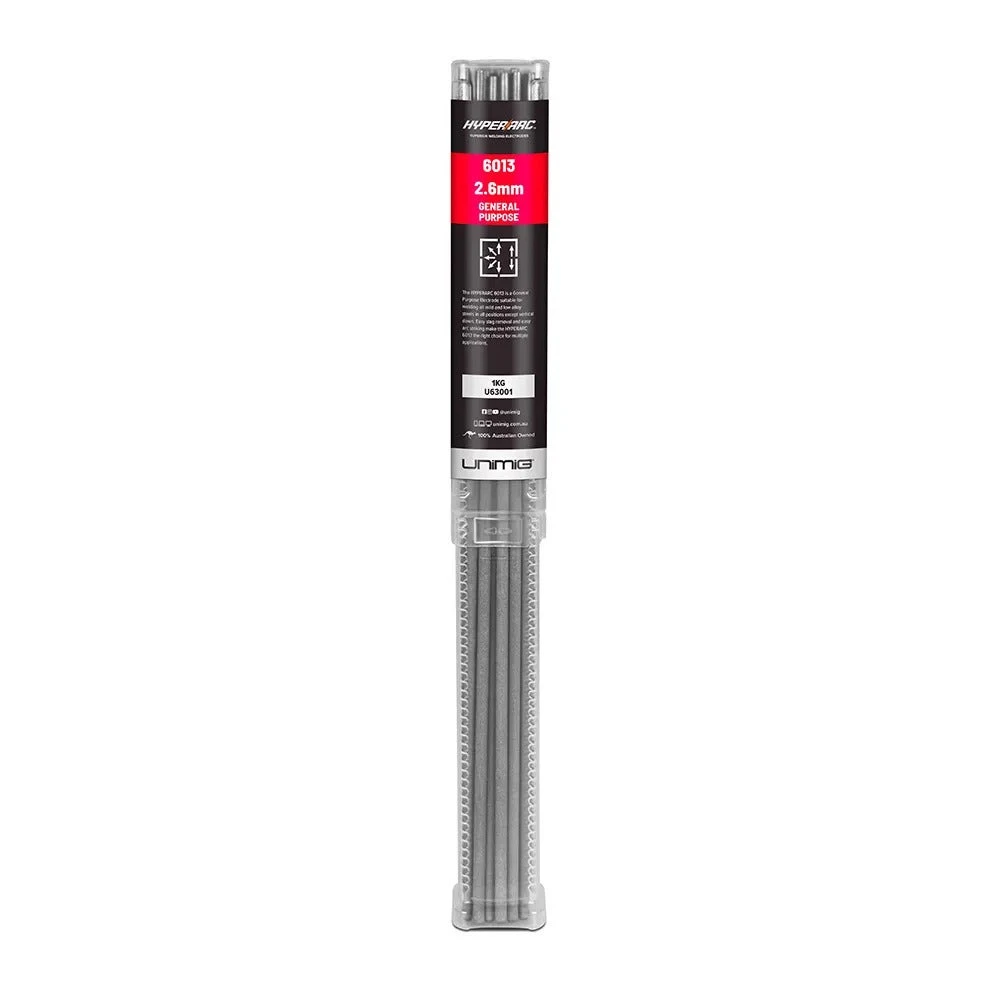

2.6mm HYPERARC 6013 Electrodes 1kg (U63001)

The HYPERARC 6013 is a General Purpose Electrode suitable for welding all mild and low alloy steels in all positions. Easy slag removal and easy arc striking make the HYPERARC 6013 the right choice for multiple applications.

• All positional
• High penetration and easy direction
• Easy slag removal
• Easy arc striking
• General mild steel fabrication work
• Repair work, fencing, gates, and balustrading
• Agricultural machinery
• Structural and general workshop use
• STICK Electrode Diameter: 2.6mm
• STICK Electrode Weight: 1.0kg

3.2mm HYPERARC 6013 Electrodes 1kg (U63002)

The HYPERARC 6013 is a General Purpose Electrode suitable for welding all mild & low alloy steels in all positions. Easy slag removal & easy arc striking make the HYPERARC 6013 the right choice for multiple applications.

• General mild steel fabrication work
• Repair work, fencing, gates, & balustrading
• Agricultural machinery
• Structural & general workshop use

4 Row Wire Brush (WB4R)

Specifications:

• Material: Steel wire
• Type: Brush

Chipping Hammer (UMCH-HD)

The UNIMIG Chipping Hammer consists of a hardened steel head supported by a heat resistant and shock dampening spring handle, along with an eye loop for pegboard hanging. The hammer features a cone shaped head, with a sharp, flattened point and a dual bevelled tail. The chipping hammer is ideal for removing slag and spatter clean up.

• Hardened steel head for tough slag and spatter removal
• Comfortable handle design for vibration dampening and heat resistance
• Eye loop for pegboard hanging
