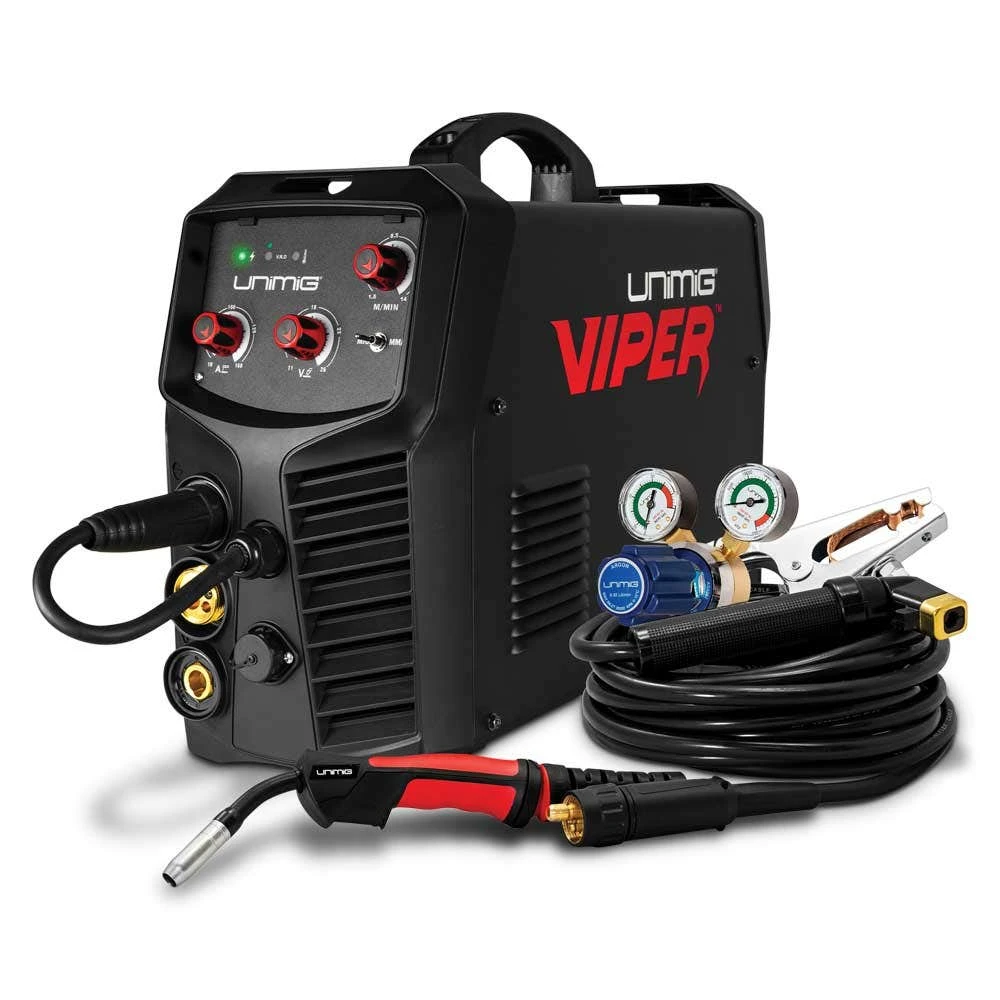

UNIMIG Viper 182 MKII MIG/STICK Welder U11002K

The All-new VIPER 182 Mk II builds on the success of the VIPER 182. With an added Geared Wire Drive and Spool Gun connection, this welder features everything you need for high-quality welds on a 10 AMP machine.

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 AMP
• Rated Input Power (kVa): 7.1
• Ieff (A): 9.8
• Rated Output: 30A/15.5V – 180A/23.0V
• No Load Voltage (V): 62
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator (kVa): 10
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
• Mig Welding Current Range: 30-180A
• Mig Duty Cycle @ 40°C: 10% @ 180A
• Mig Wire Size Range: 0.6-0.9mm
• Mig Wire Spool Size: 1kg / 5kg
• Mig Welding Thickness Range: 1-10mm
• Drive Roller Size: 30/22
• Stick Welding Current Range: 10-160A
• Stick Duty Cycle @ 40°C: 10% @ 160A
• Stick Electrode Range: 2.5-4.0mm
• Stick Welding Thickness Range: 2-10mm

Includes

• 1 x VIPER 182 Mk II MIG Welder
• 1 x 3m SB15 MIG Torch
• 1 x 3m Twist Lock Electrode Holder
• 300 Amp Earth Clamp & Lead
• 1 x Twin Gauge Argon Regulator
• 1 x 2m Gas Hose Complete with fittings
• Operating Manual
