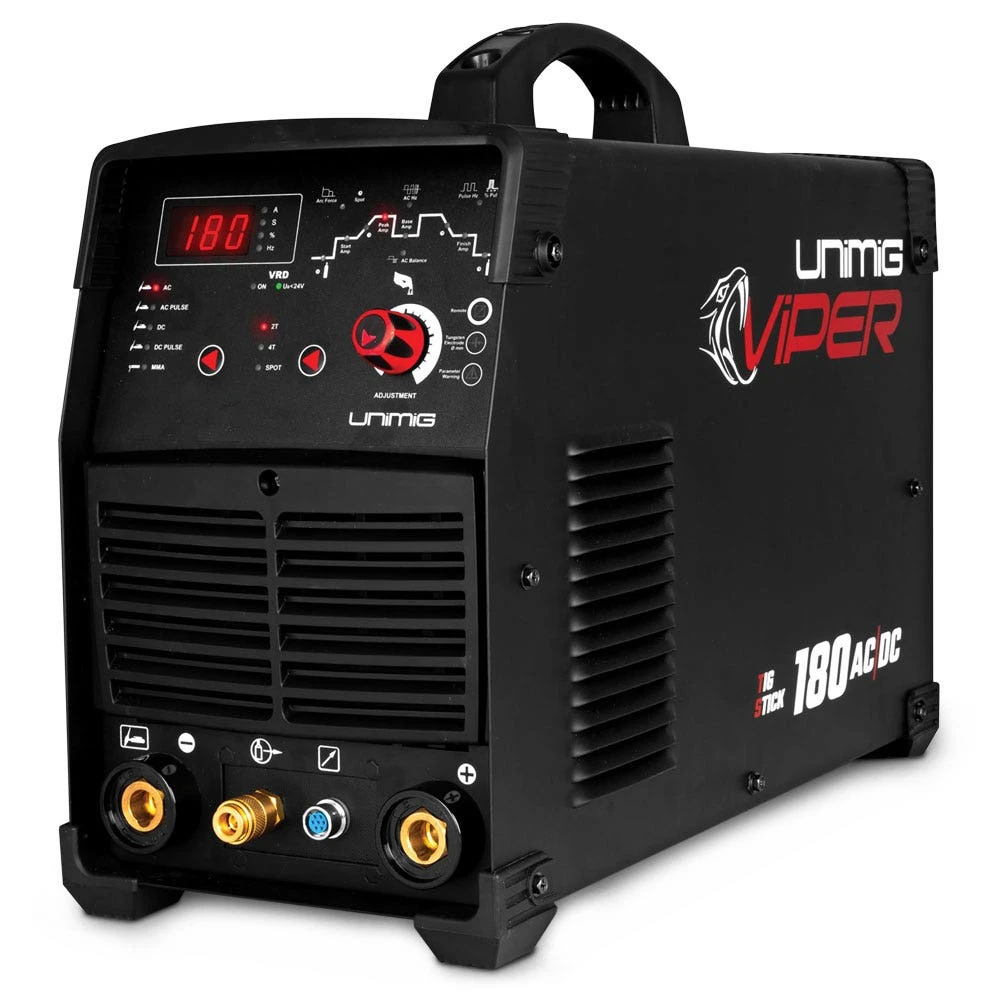

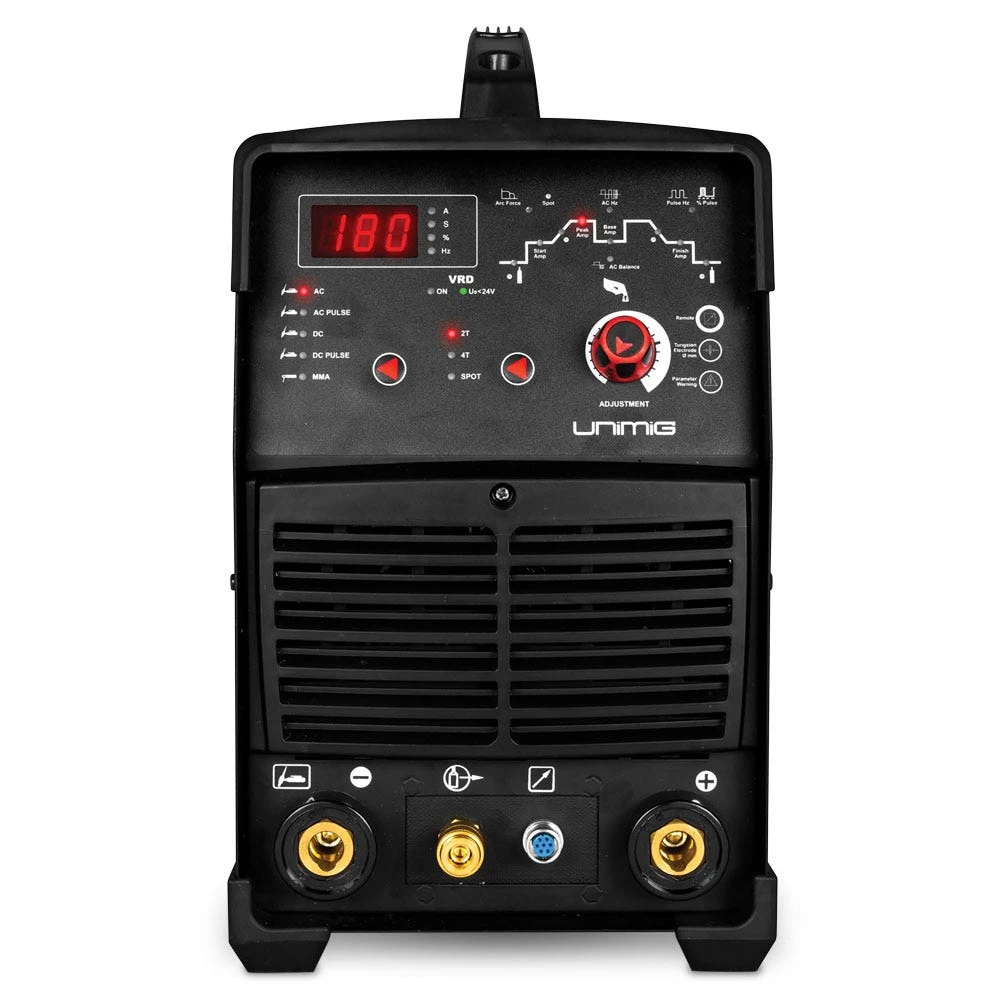

UNIMIG Viper 180 180A AC/DC TIG/STICK Welder KUM-M-VT180ACDC

The VIPER™ 180 AC/DC TIG & STICK Welder was made for the handyman who wants both AC and DC TIG welding at a good price. Fitted with your standard 10 AMP plug, it makes itself at home in any workshop.

The VIPER™ 180 AC/DC allows for full control over the High-Frequency TIG welding process to ensure you can maximise your results from start to finish. Controllable parameters include Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time, among many others.

The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the VIPER™ 180 AC/DC, offering up to 30% more power and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.

With all of these features packed into an affordable package, the VIPER™ 180 AC/DC is a must-have for any DIY TIG enthusiast.

• 10 AMP Plug
• AC/DC H/F TIG/STICK
• Pulse TIG Function
• Foot Control Ready

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 Amp
• Rated Input Power (kVa): 5.20
• Ieff (A): 8.9
• Rated Output: 10-180A / 17.2V
• No Load Voltage (V): 7-55
• Protection Class: IP21S
• Insulation Class: B
• Power Factor: 0.7
• Minimum Generator (kVa): 9.0
• Dinse Connector: 35/50
• Standard: As/Nz60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
• TIG Function Type: AC/DC HF TIG / Ac/Dc Pulse
• TIG Welding Current Range: 5-180A
• TIG Duty Cycle @ 40°C: 15% @ 180A
• Stick Welding Current Range: 10-130A
• Stick Duty Cycle @ 40°C: 10% @ 130A
• Stick Electrode Range: 2.5-3.2mm
• Arc Force: 0-40

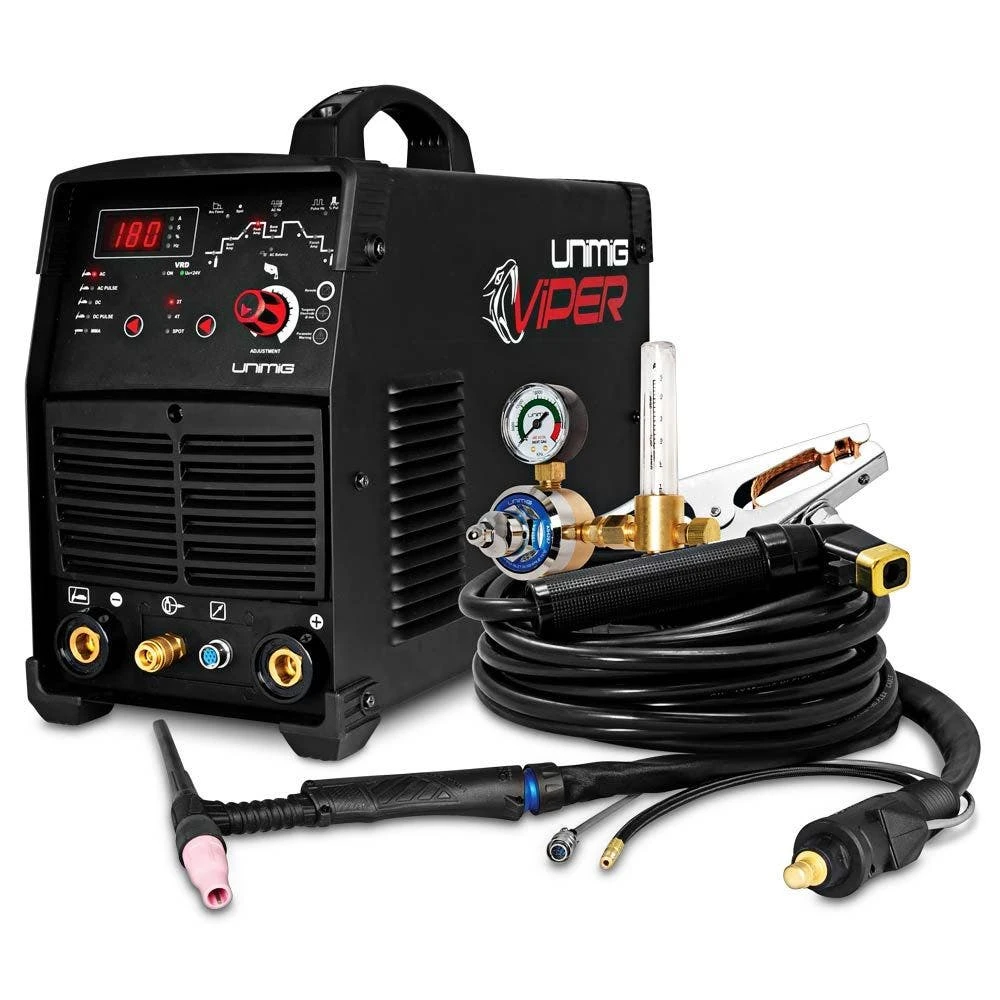

Includes:

• 1 x VIPER™ 180 AC/DC TIG Welder
• 1 x 4m High-Performance T2 TIG Torch
• 1 x 4m Twist Lock Electrode Holder
• 1 x 300 Amp Earth Clamp & Lead
• 1 x Argon Flowmeter Regulator
• 1 x 2m Gas Hose Complete with fittings
• Operating Manual
