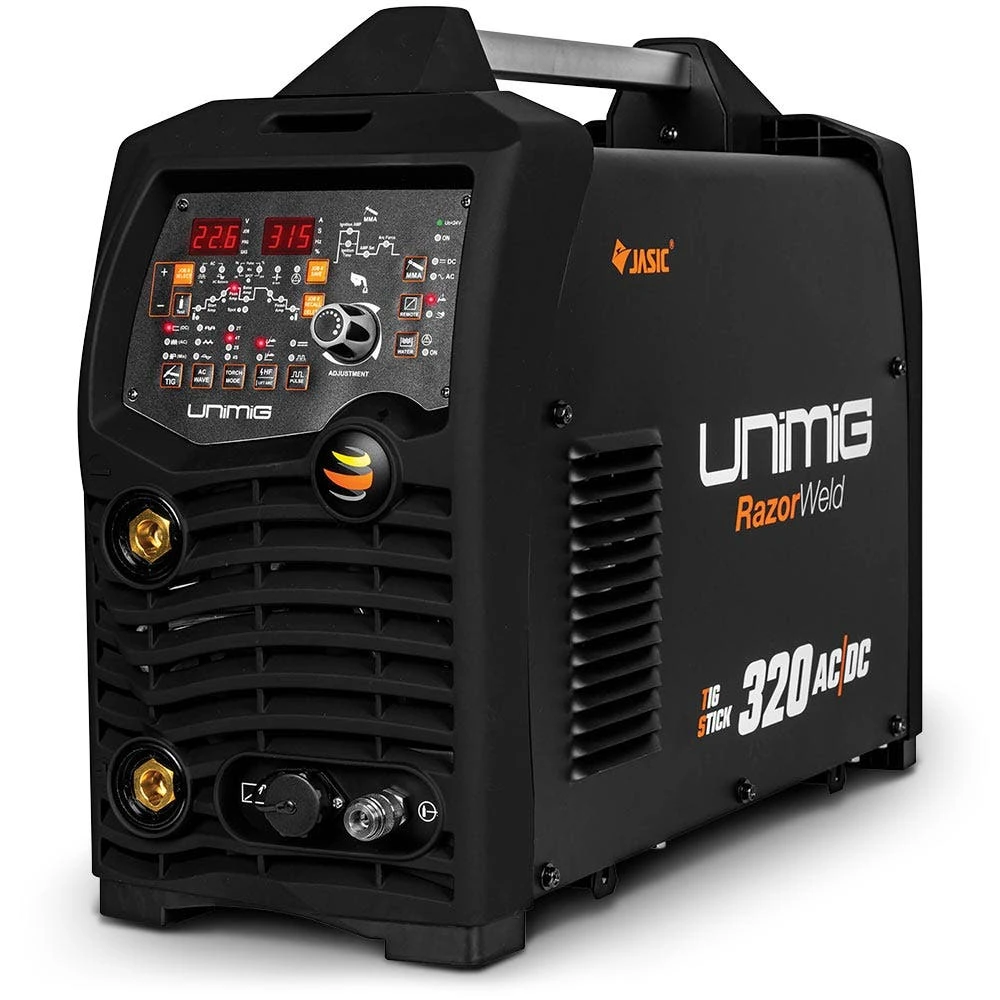

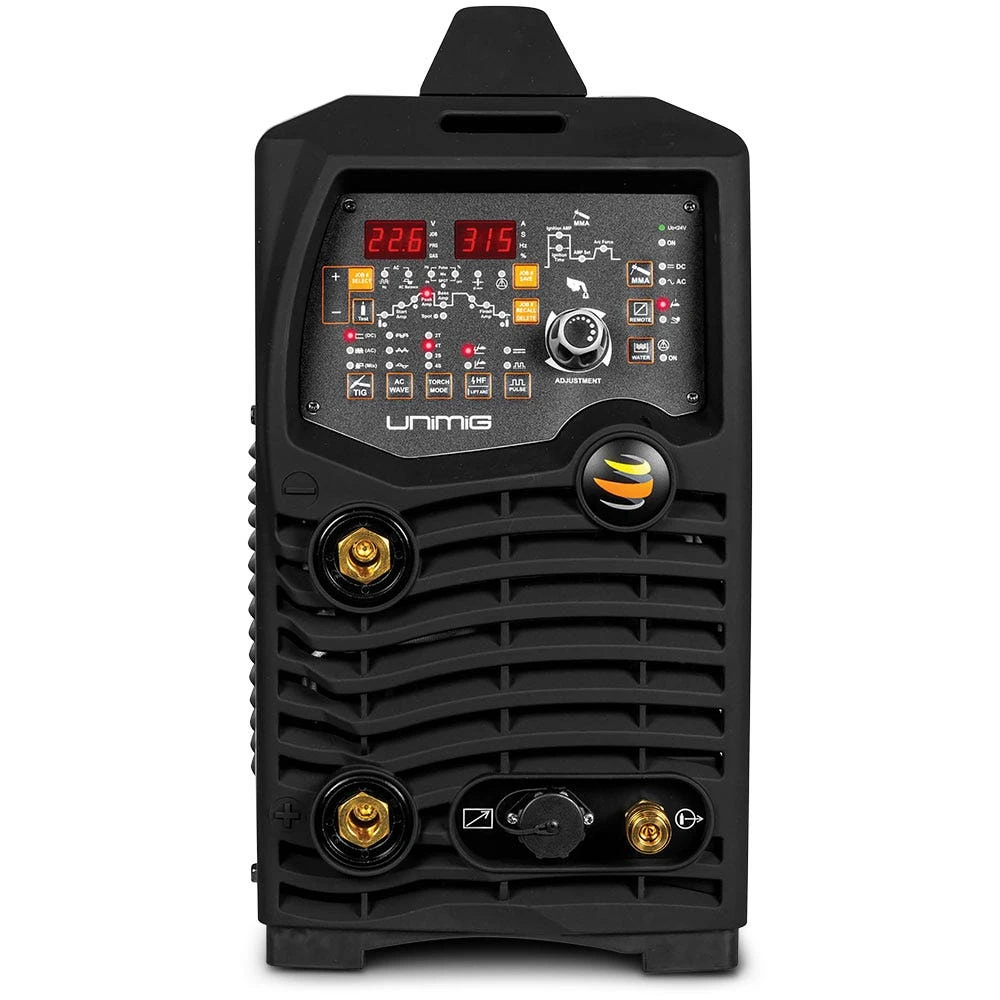

UNIMIG Razorweld 320 320A AC/DC 3 Phase TIG/STICK Welder KUMJRRW320ACDC

The RAZOR 320 AC/DC is a complete and professional TIG /MMA welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations. Designed and built to our speci?cation and manufactured in compliance with AS/NZ60974-1.

• 415V Three-Phase
• AC/DC H/F TIG
• Mix ARC TIG
• STICK
• Weld Sequence Control
• 2T/2S/4T/4S Torch Mode
• Foot Control Ready
• Water Cooler Ready

Specifications:

• Primary Input Voltage: 415V Three Phase
• Rated Input Power (kVa): 9.0
• Ieff (A): 10
• Imax (A): 18.0
• Rated Output: 10a – 315A/22.6V
• No Load Voltage (V): 9-73
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator (kVa):
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1, AS/NZ60974-10
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
• TIG Function Type: AC/DC HF TIG & AC/DC Pulse
• TIG Welding Current Range: 10-315A
• TIG Duty Cycle @ 40°C: 30% @ 315A
• Stick Welding Current Range: 10-270A
• Stick Duty Cycle @ 40°C: 30% @ 270A
• Stick Electrode Range: 2.5-4.0mm
• Arc Force: 0-40

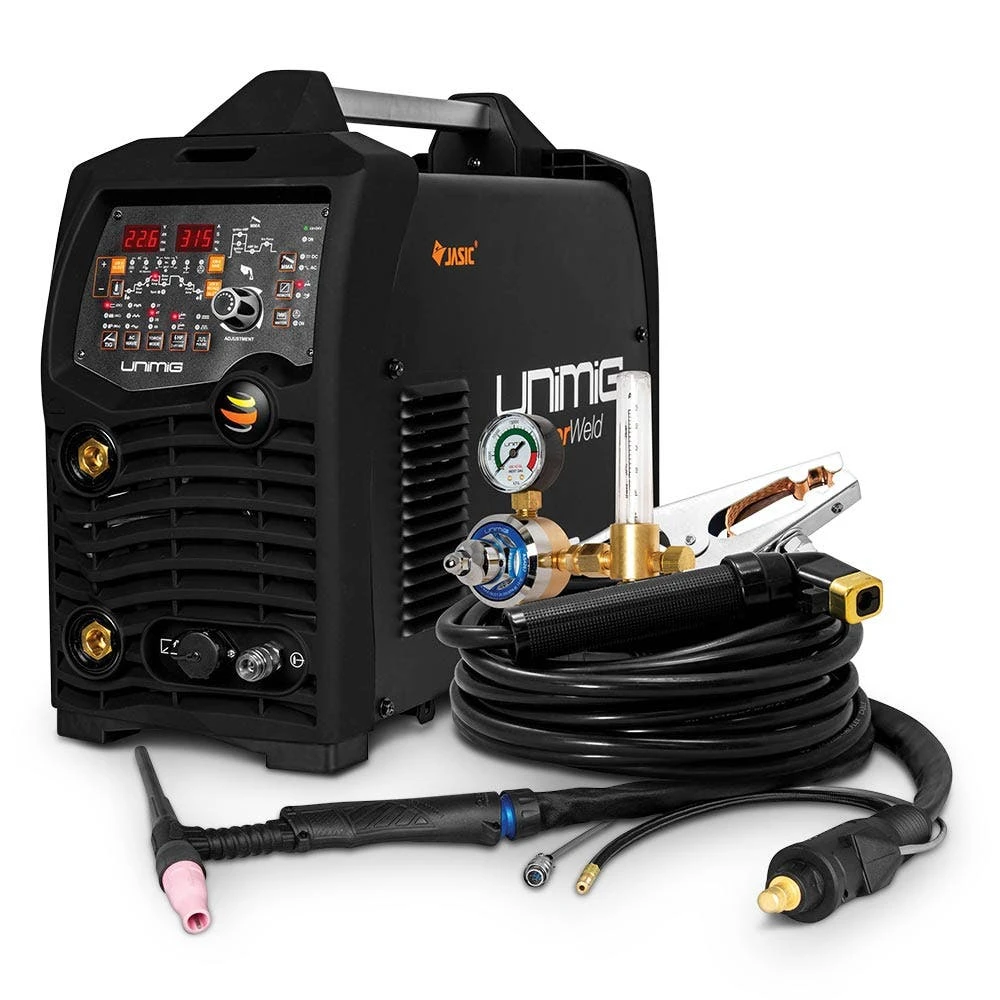

Includes:

• 1 x RAZOR™ 320 AC/DC TIG Welder
• 1 x 4m High-Performance T3 TIG Torch
• 1 x 4m Twist Lock Electrode Holder
• 1 x 500 Amp Earth Clamp & Lead
• 1 x Argon Flowmeter Regulator
• 1 x 2m Gas Hose Complete with fittings
• Operating Manual
