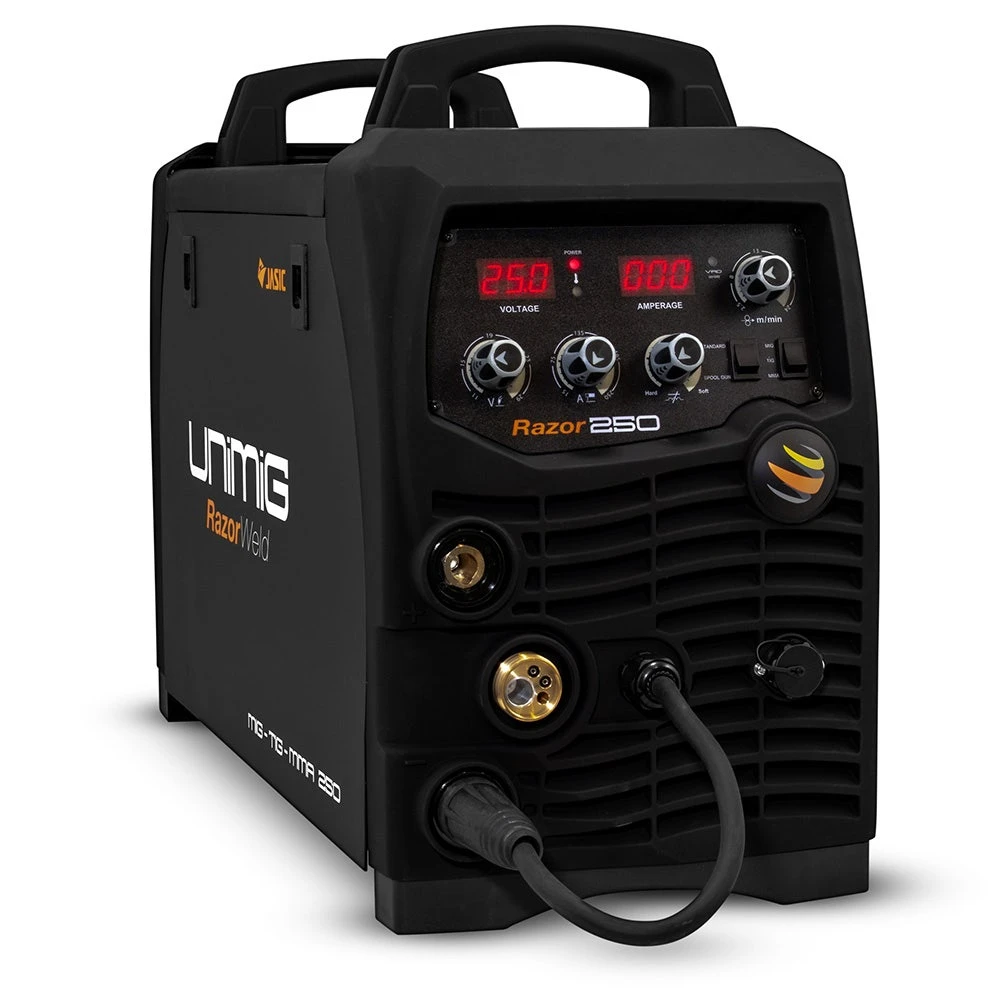

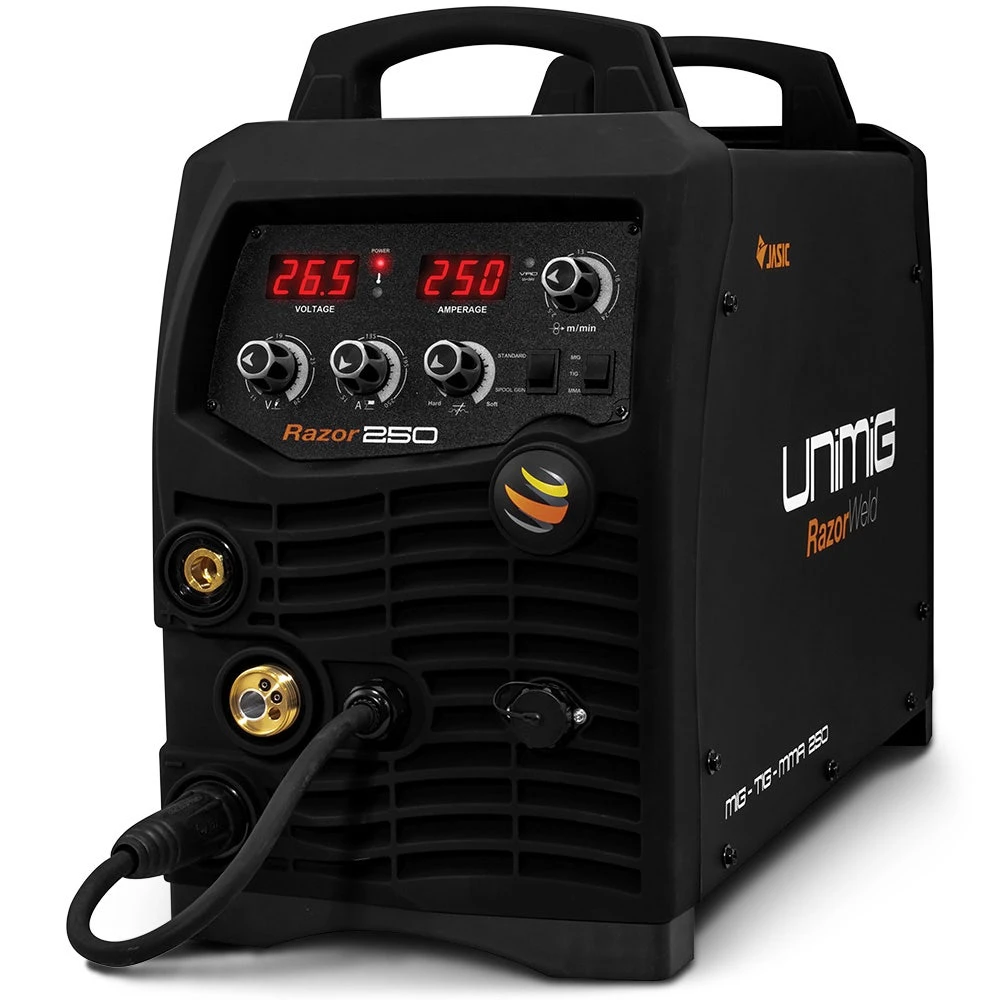

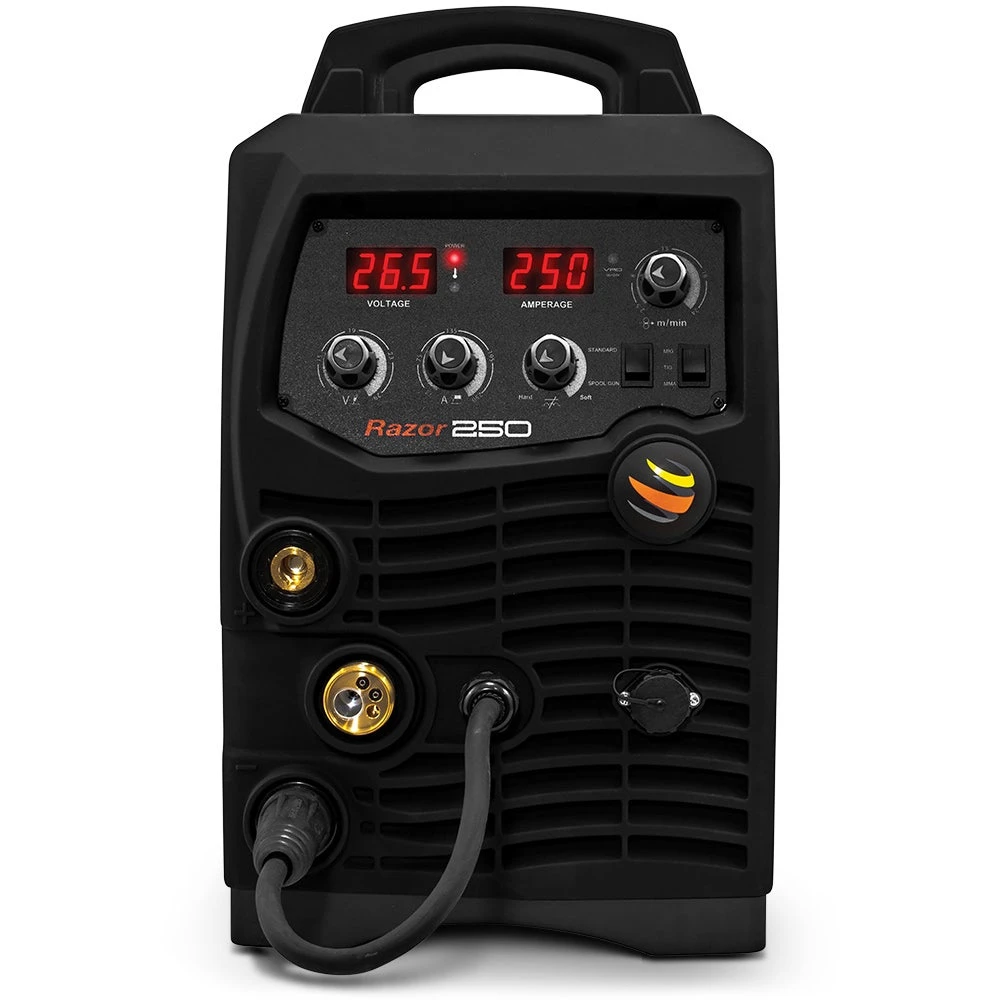

UNIMIG Razorweld 250A Arc/Tig Inverter Welder W. Lead Set, Torch And Regulator KUMJRRW250MIG

Looking for portability and performance? The RAZOR™ 250 is the perfect match for welders needing powerful performance both in the workshop and on their worksite. With a spool gun connection – and a geared wire drive – the RAZOR™ 250 is a must-have for the serious welder.

• Single Phase 240V
• Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK
• Spool Gun Ready
• Geared Wire Drive

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: Single Phase (32 Amp Recommended) Or 15 Amp
• Rated Input Power (kVa): 11
• Ieff (A): 28.0
• Rated Output: 30a/15.5V – 250A/26.5V
• No Load Voltage (V): 54
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.72
• Minimum Generator (kVa): 13.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• Mig Welding Current Range: 30-250A
• Mig Duty Cycle @ 40°C: 30% @ 250A
• Mig Wire Size Range: 0.6-1.2mm
• Mig Wire Spool Size: 1kg / 5kg
• Drive Roller Size: 30/22
• Tig Function Type: Dc Lift Arc
• Tig Welding Current Range: 10-250A
• Tig Duty Cycle @ 40°C: 30% @ 250A
• Tig Welding Thickness Range: 1mm – 6mm
• Stick Welding Current Range: 10-250A
• Stick Duty Cycle @ 40°C: 30% @ 250A
• Stick Electrode Range: 2.5-4.0mm

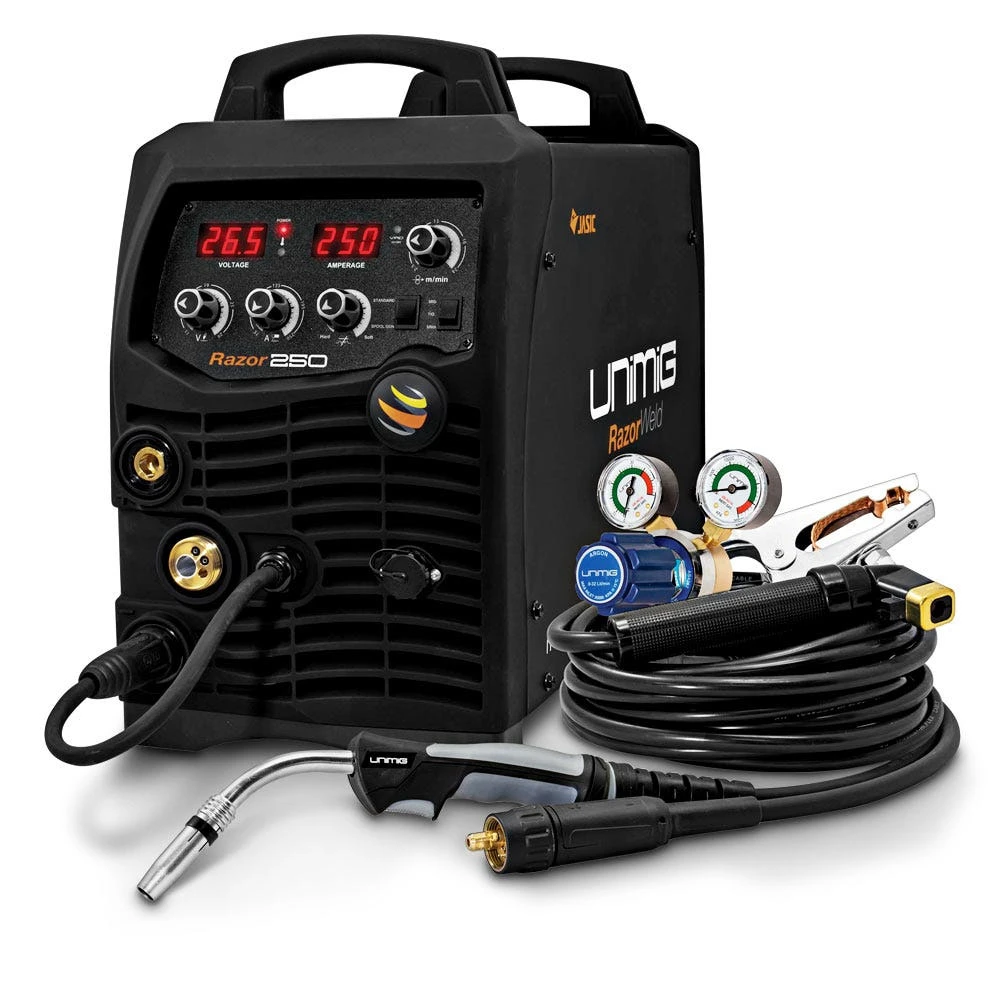

Includes:

• 1 x Razor MIG 250 Power Source
• 1 x 4 metre SB24 MIG Torch
• 1 x 4 metre Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
• 1 x UNIMIG Twin Gauge Argon Regulator
• 1 x 2 metre Gas Hose with connections
• Instruction Manual
