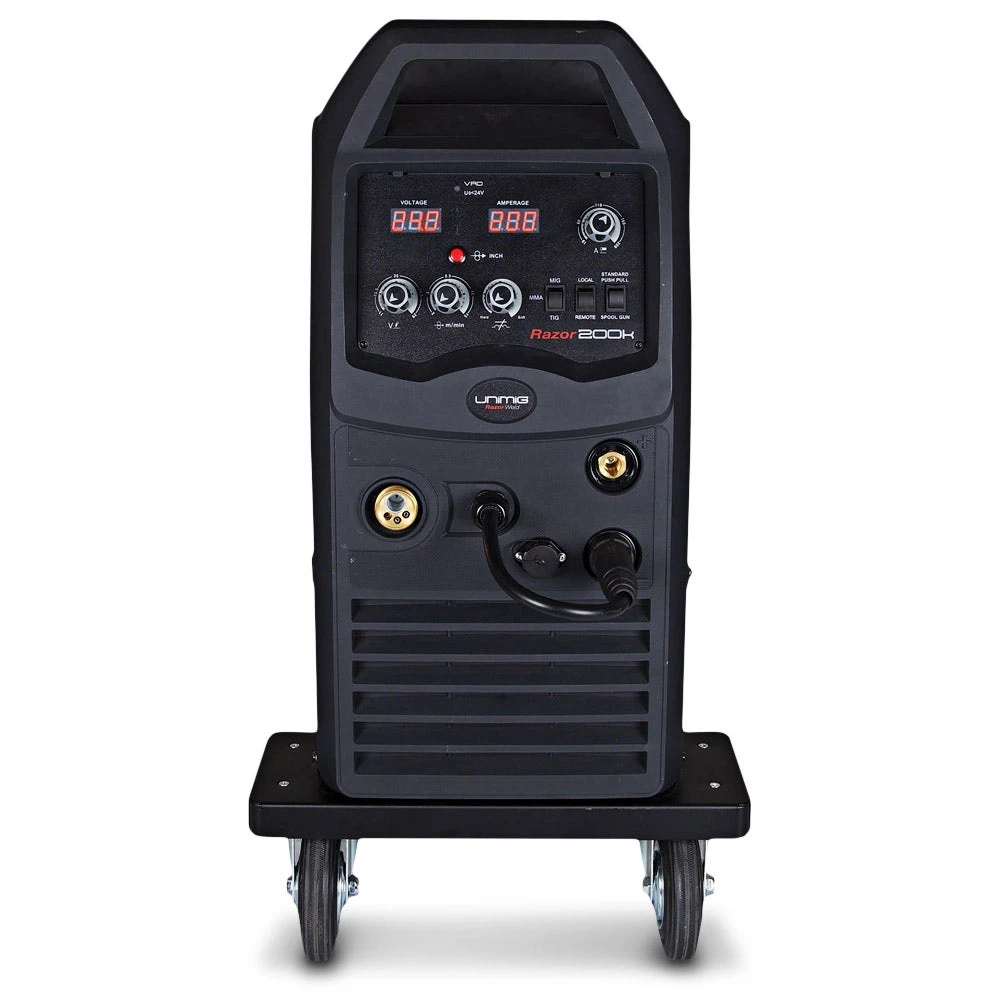

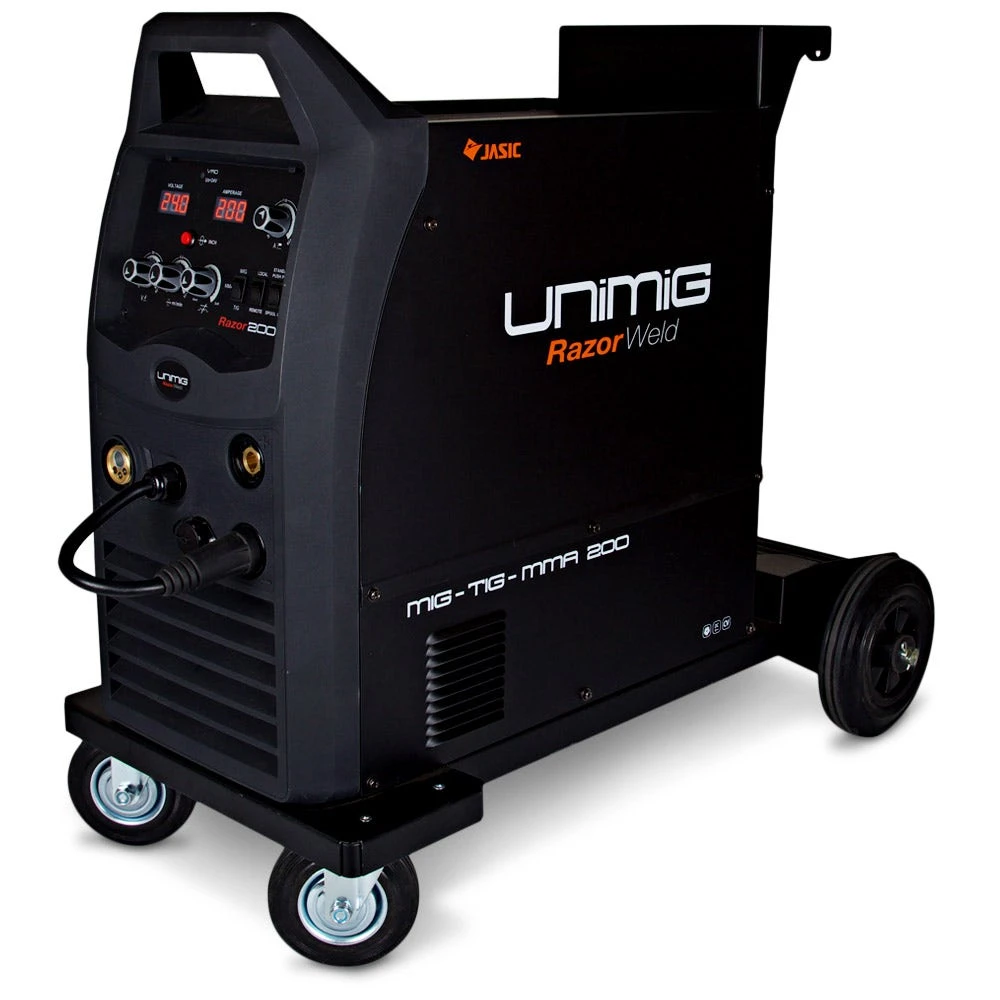

UNIMIG Razorweld 200A MIG/TIG/STICK Multi Process Inverter Welder KUMJR200K-SG

The RAZOR™ 200 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 200 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.

• 15 AMP Plug
• Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK
• Geared Wire Drive
• Spool Gun Ready
• Push-Pull Gun Ready

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 Amp
• Rated Input Power (kVa): 9.4
• Ieff (A): 15.0
• Rated Output: 30a/15.5 – 200a/24.0V
• No Load Voltage (V): 52
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.75
• Minimum Generator (kVa): 11.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• Mig Welding Current Range: 30-200a
• Mig Duty Cycle @ 40°C: 15% @ 200a
• Mig Wire Size Range: 0.6-1.0mm
• Mig Wire Spool Size: 1kg / 5kg / 15kg
• Drive Roller Size: 35/25
• Tig Function Type: DC Lift Arc
• Tig Welding Current Range: 10-200a
• Tig Duty Cycle @ 40°C: 15% @ 200a
• Stick Welding Current Range: 10-200a
• Stick Duty Cycle @ 40°C: 15% @ 200a
• Stick Electrode Range: 2.5-4.0mm

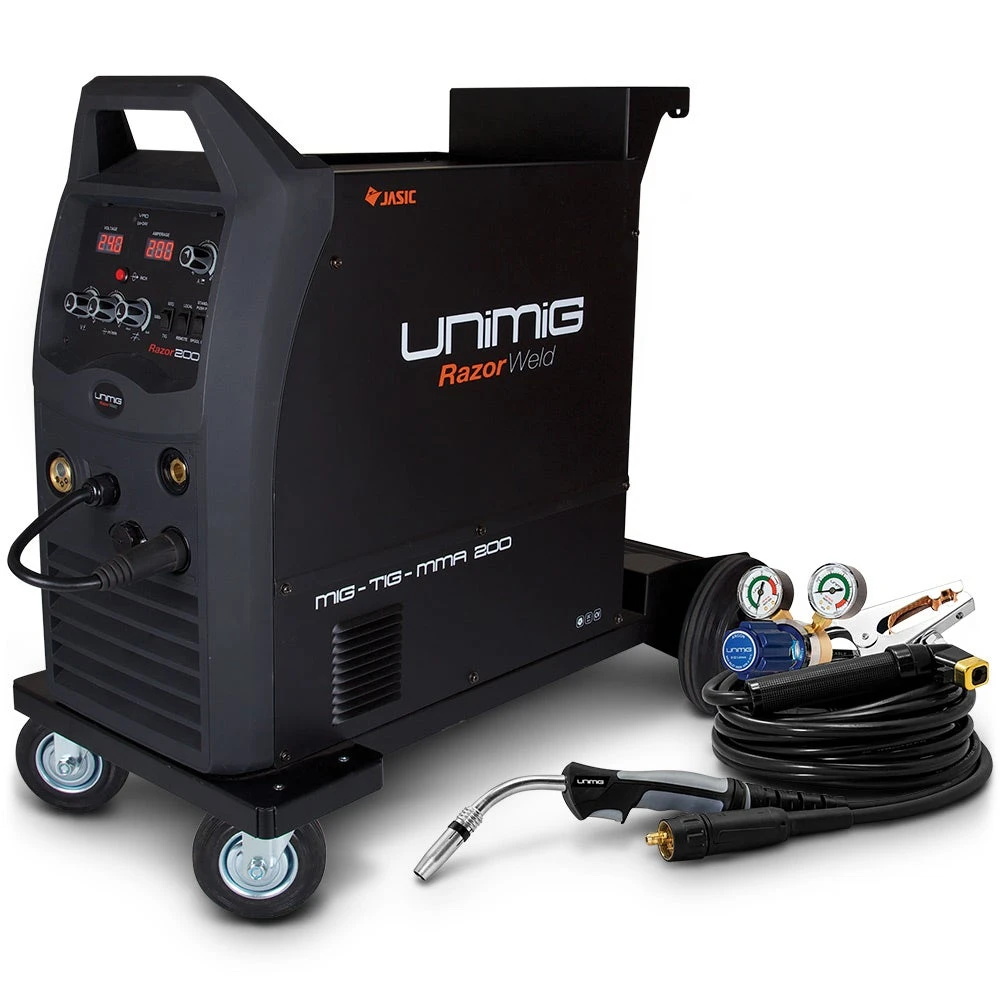

Includes:

• 1 x RAZOR™ 200 COMPACT MIG/TIG/STICK Welder
• 1 x 4m SB24 MIG Torch (including consumables)
• 1 x 4m Twist Lock Electrode Holder
• 1 x 300 Amp Earth Clamp & Lead
• 1 x Twin Gauge Argon Regulator
• 1 x 2m Gas Hose Complete with fittings
• Operating Manual
