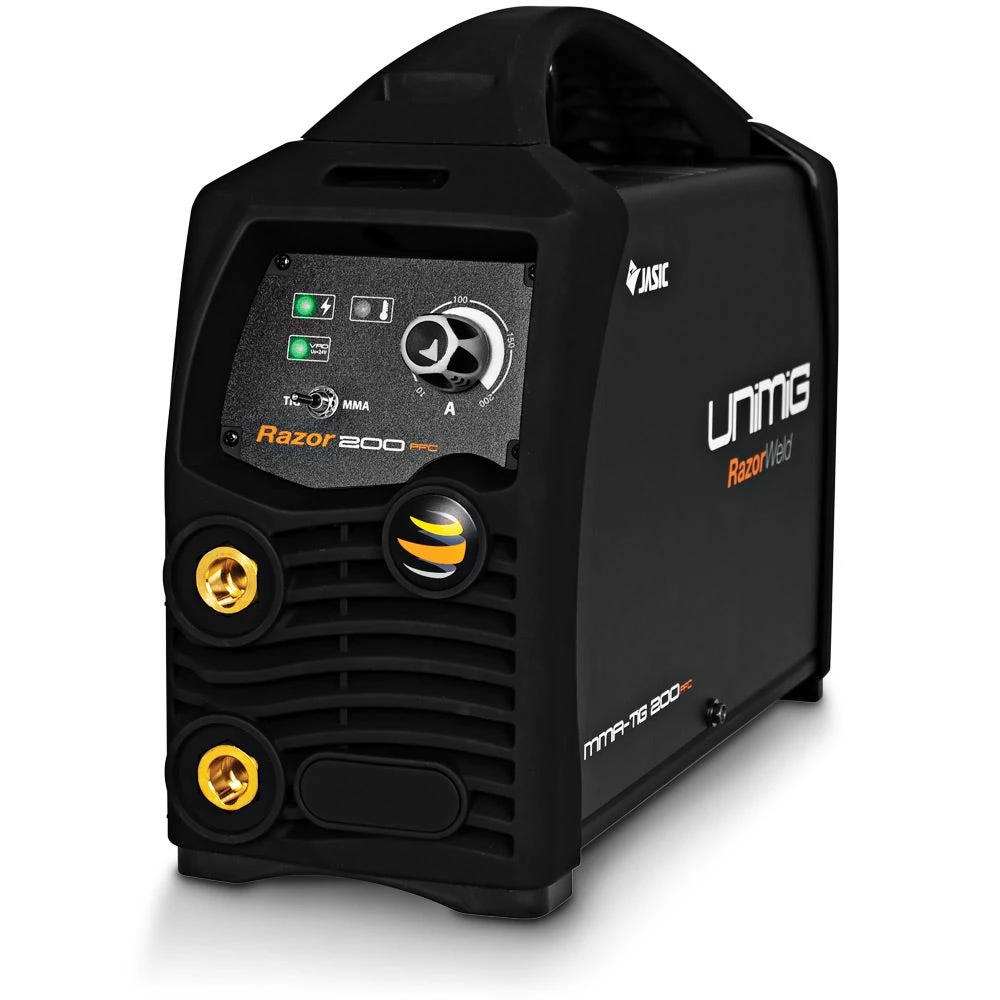

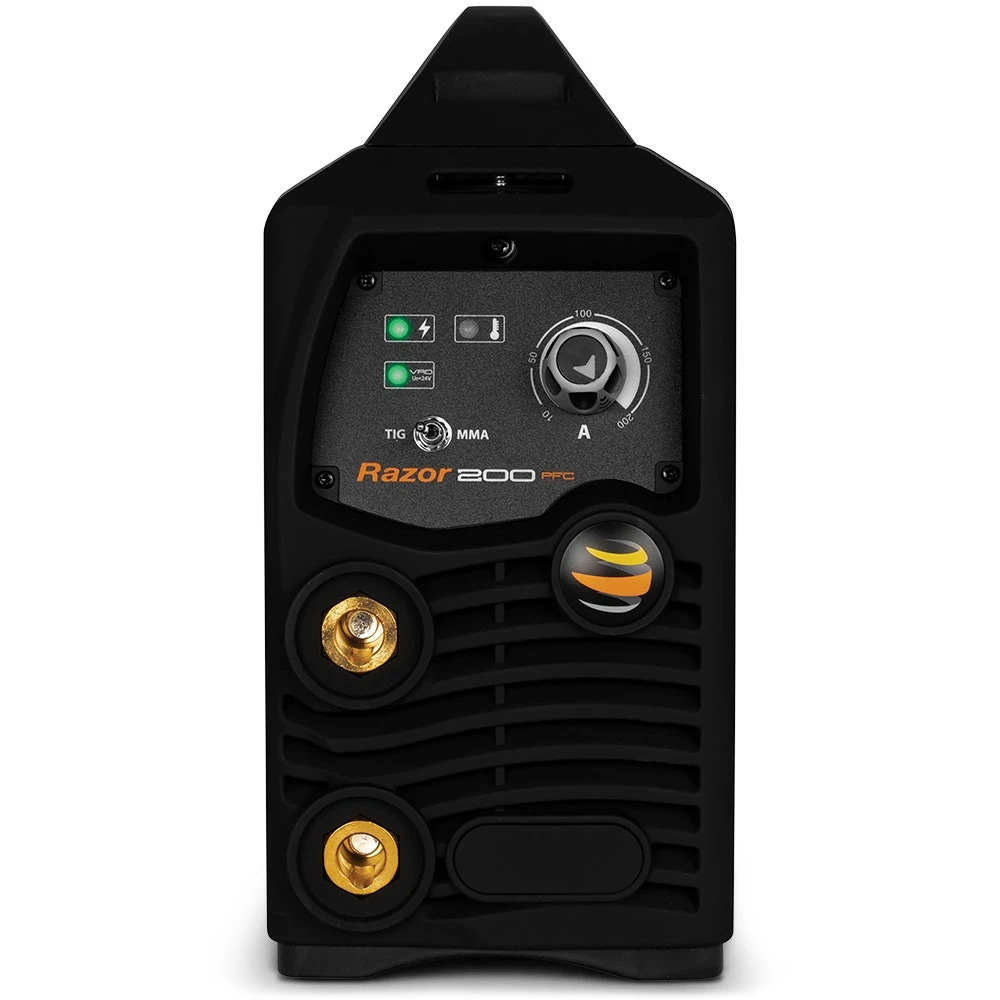

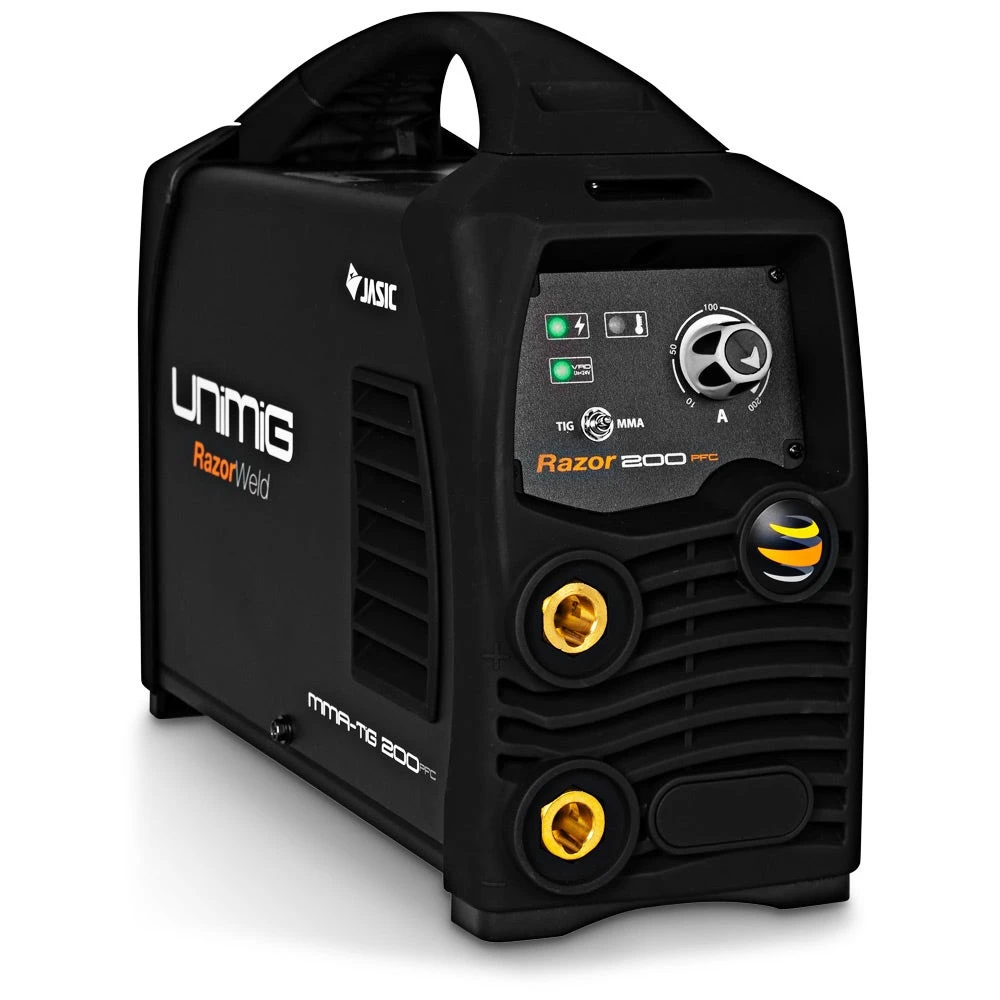

UNIMIG Razorweld 200A Arc/Tig Inverter Welder KUMJRRW200CA

The RAZOR™ ARC 200 PFC is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

The RAZOR™ ARC 200 PFC features Power Factor Correction (PFC) for maximum electrical efficiency.

• 15 AMP Plug
• STICK / DC Lift Arc TIG
• Power Factor Correction
• Thermal Overload Protection

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 Amp
• Rated Input Power (kVa): 9.0
• Ieff (A): 15.0
• Rated Output: 200A/28V
• No Load Voltage (V): 78
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.99
• Minimum Generator (kVa): 9.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Welds: Mild Steel, Stainless Steel, Copper, Cast Iron
• TIG Function Type: Dc Lift Arc
• TIG Welding Current Range: 10-200A
• TIG Duty Cycle @ 40°C: 45% @ 200A
• Stick Welding Current Range: 10-200A
• Stick Duty Cycle @ 40°C: 30% @ 200A
• Stick Electrode Range: 2.5-4.0mm

Includes

• RAZOR™ ARC 200 PFC STICK Welder
• 4m Twist Lock Electrode Holder
• 300 Amp Earth Clamp & Lead
• Operating Manual
