Description
The RAZORâ„¢ 200 DC gives you full control over High Frequency DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite. Tailor your TIG settings with a wide range of controllable parameters including Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post-Gas Time.
- 15 AMP Plug
- DC H/F TIG / STICK
- Pulse TIG Function
- Foot Control Ready
Specifications:
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 15 Amp
- Rated Input Power (kVa): 7.0
- Ieff (A): 14.6
- Rated Output: 10-200A/18.0V
- No Load Voltage (V): 9-75
- Protection Class: IP21S
- Insulation Class: F
- Power Factor: 0.7
- Minimum Generator (kVa): 10.0
- Dinse Connector: 35/50
- Standard: AS/NZ60974-1
- Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- TIG Function Type: DC HF TIG / Dc Pulse
- TIG Welding Current Range: 10-200A
- TIG Duty Cycle @ 40°C: 25% @ 200A
- Stick Welding Current Range: 10-180A
- Stick Duty Cycle @ 40°C: 25% @ 180A
- Stick Electrode Range: 2.5-4.0mm
- Arc Force: 0-180

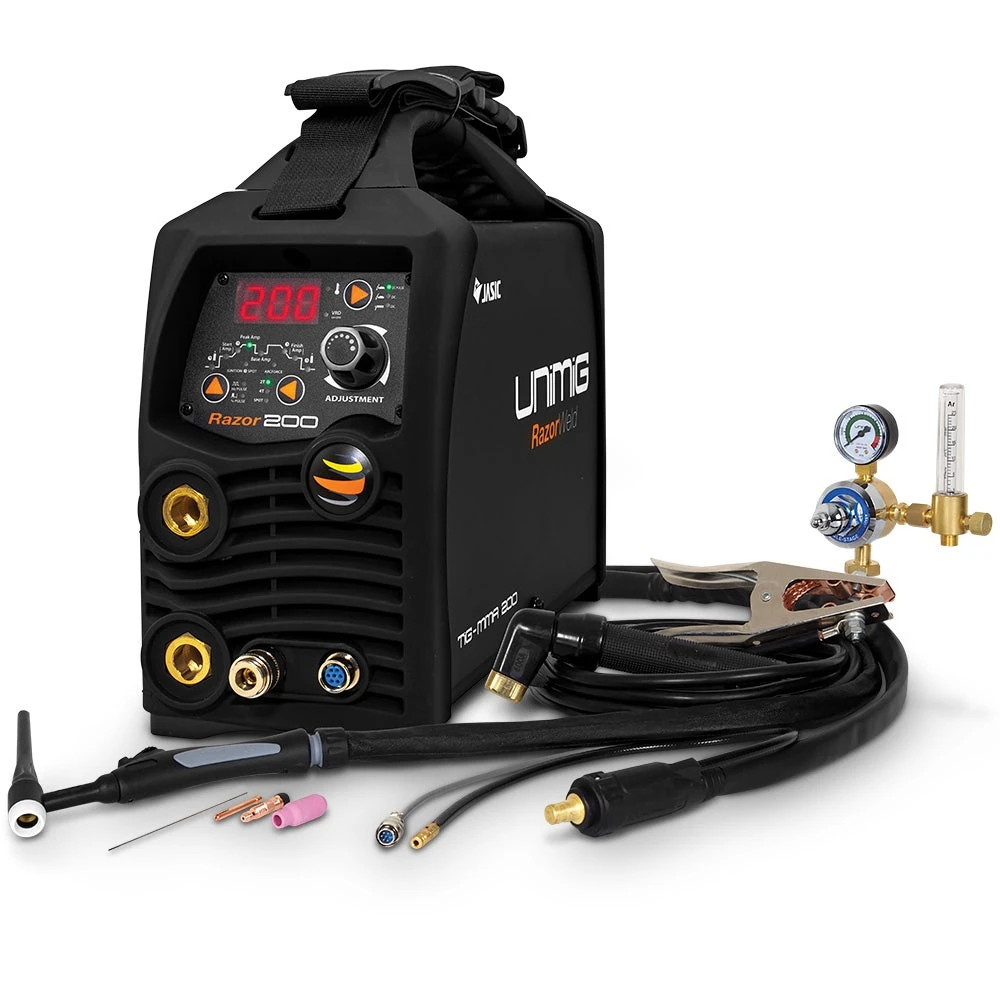

Includes:
- 1 x Razor 200 DC HF Power Source
- 1 x 4 metre Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
- 1 x SR26 4 metre TIG Torch
- 1 x UNIMIG Argon Flowmeter Regulator
- 1 x Razorweld Carry Bag
- Instruction Manual
