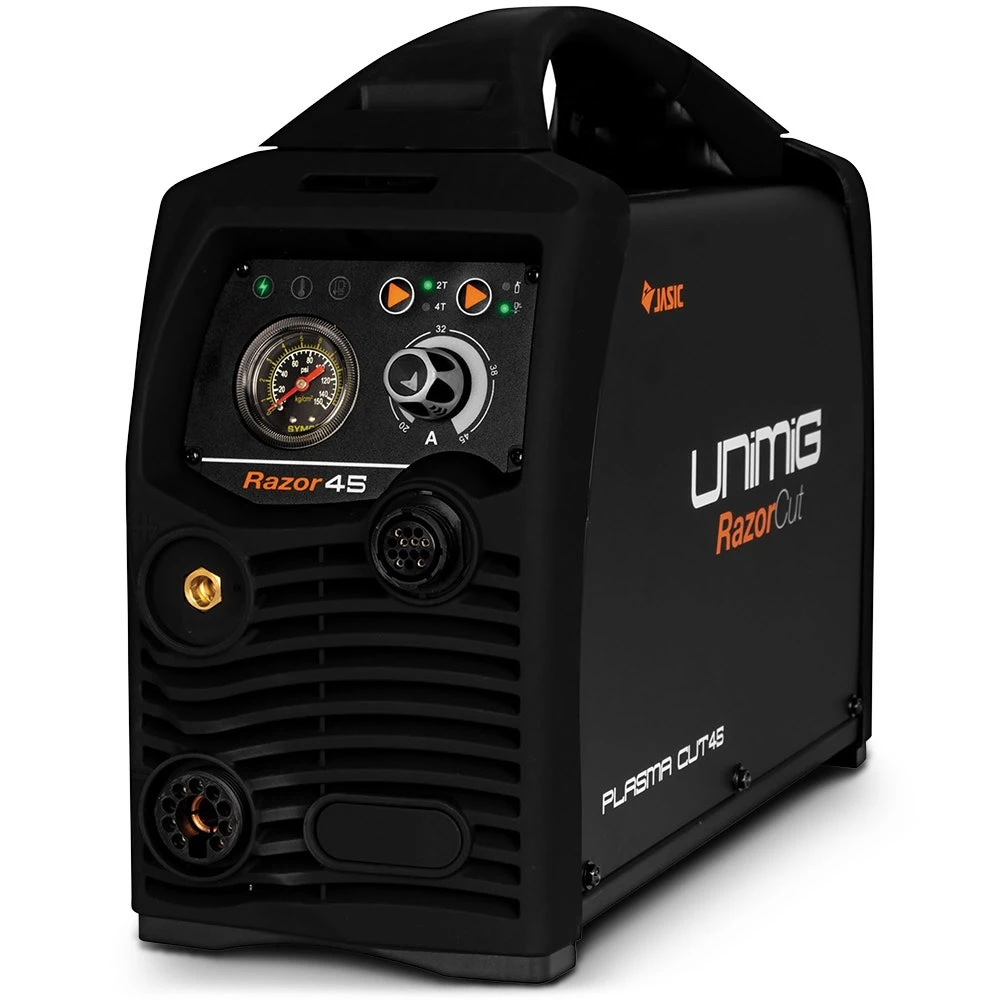

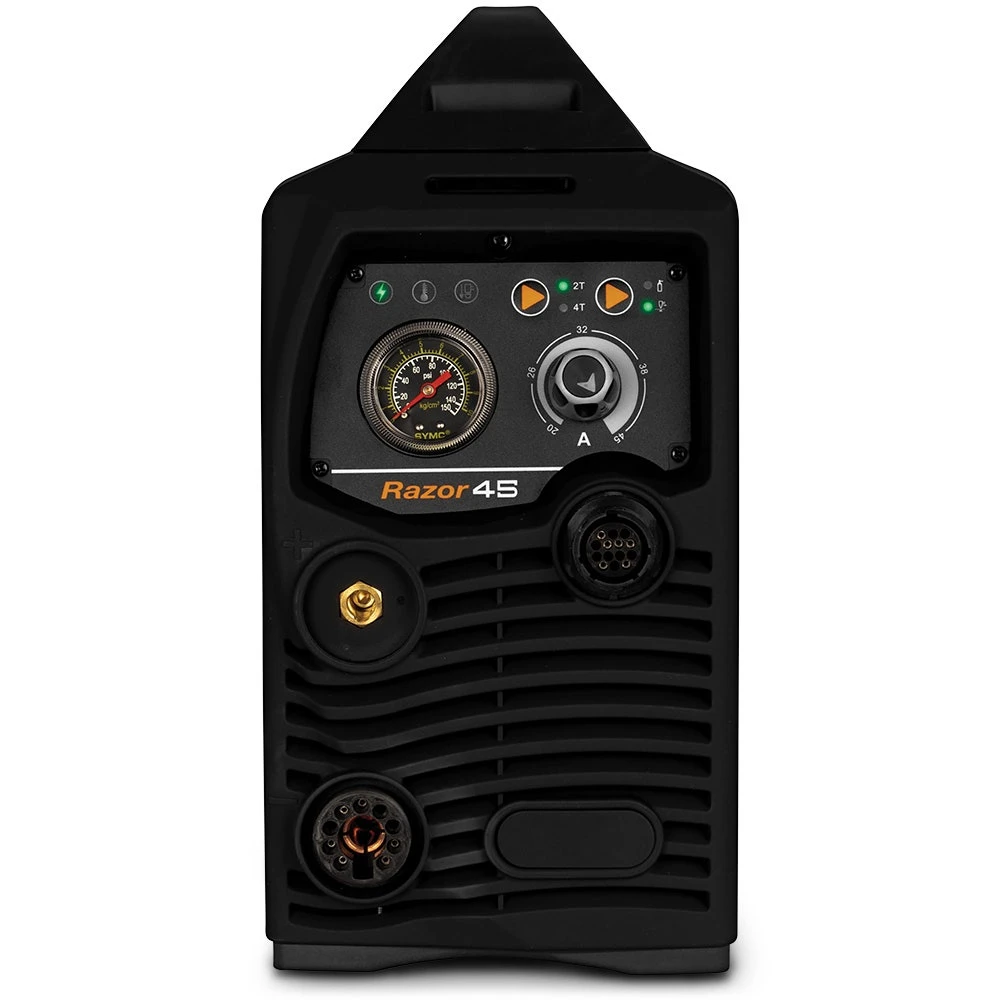

UNIMIG Razorcut 45 Plasma Cutter KUPJRRW45

The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.

• 15 AMP Plug
• 16mm Clean Cut on Mild Steel
• 20mm Severance on Mild Steel
• Pilot Arc Start
• Thermal Overload Protection
• CNC Connection

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15a
• Rated Input Power (kVa): 5.5
• Rated Output Voltage (V): 98
• Ieff (A): 15.0
• Imax (A): 29.2
• Air Flow Draw Off (l/min): 189
• Air Flow Pressure (Bar): 5.17 (75 PSI)
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator (kVKva): 7
• Dinse Connector: 10/25
• Standard: AS/NZ60974-1
• Plasma Cut Current Range: 20-45a
• Plasma Cut Duty Cycle @ 40°C: 25% @ 45a
• Mild Steel Cut Thickness: 16mm
• Mild Steel Severance Thickness: 20mm
• Aluminium Cut Thickness: 8mm
• Aluminium Severance Thickness: 10mm
• Stainless Steel Cut Thickness: 8mm
• Stainless Steel Severance Thickness: 10mm

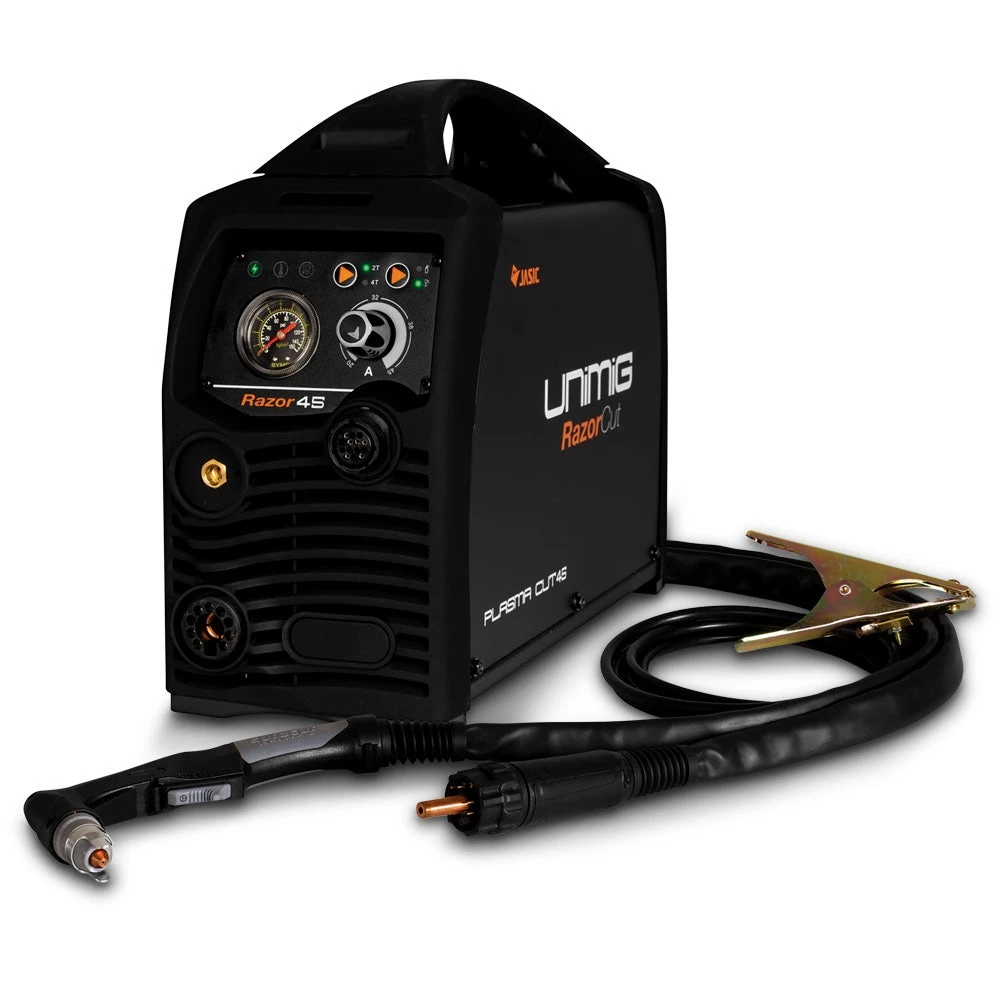

Includes:

• 1 x RAZOR™ CUT 45 Plasma Cutter
• 1 x 6m SC80 Plasma Torch
• 1 x 4m 300 AMP Earth Clamp
• 1 x Air Regulator
• Operating Manual
