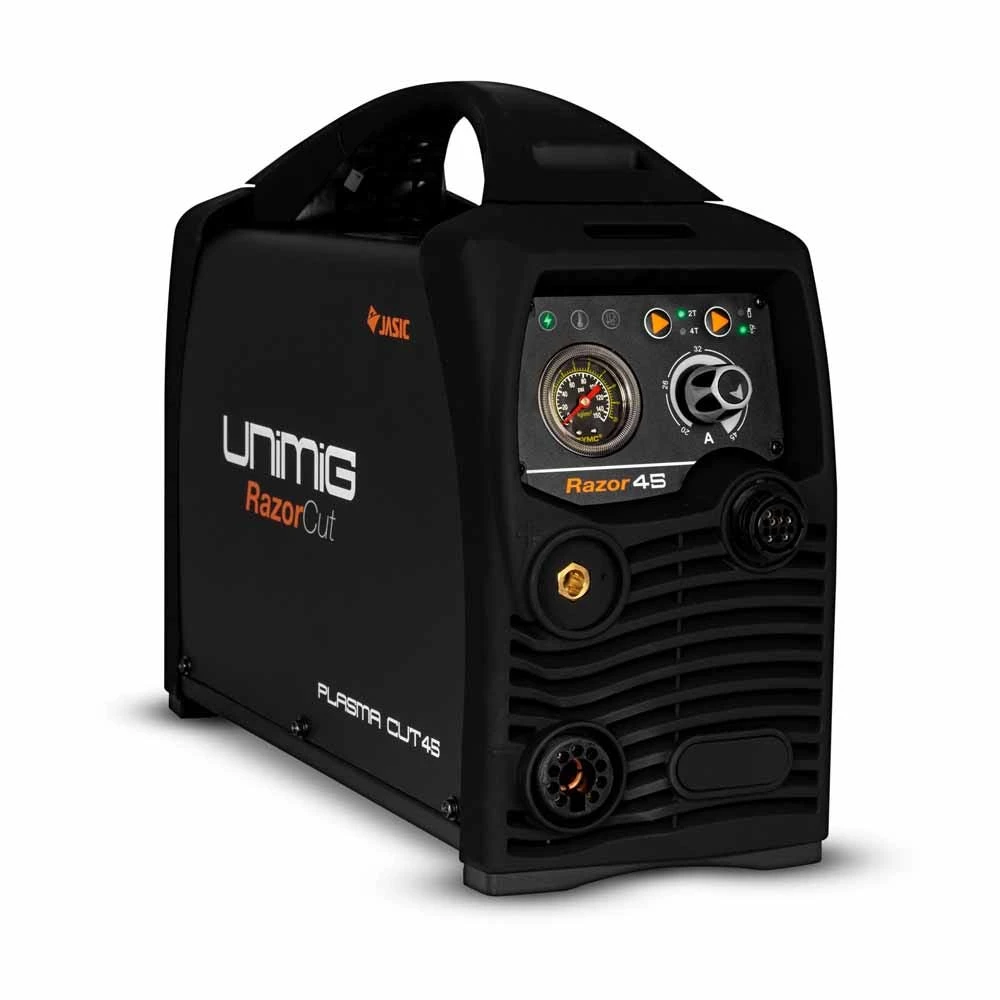

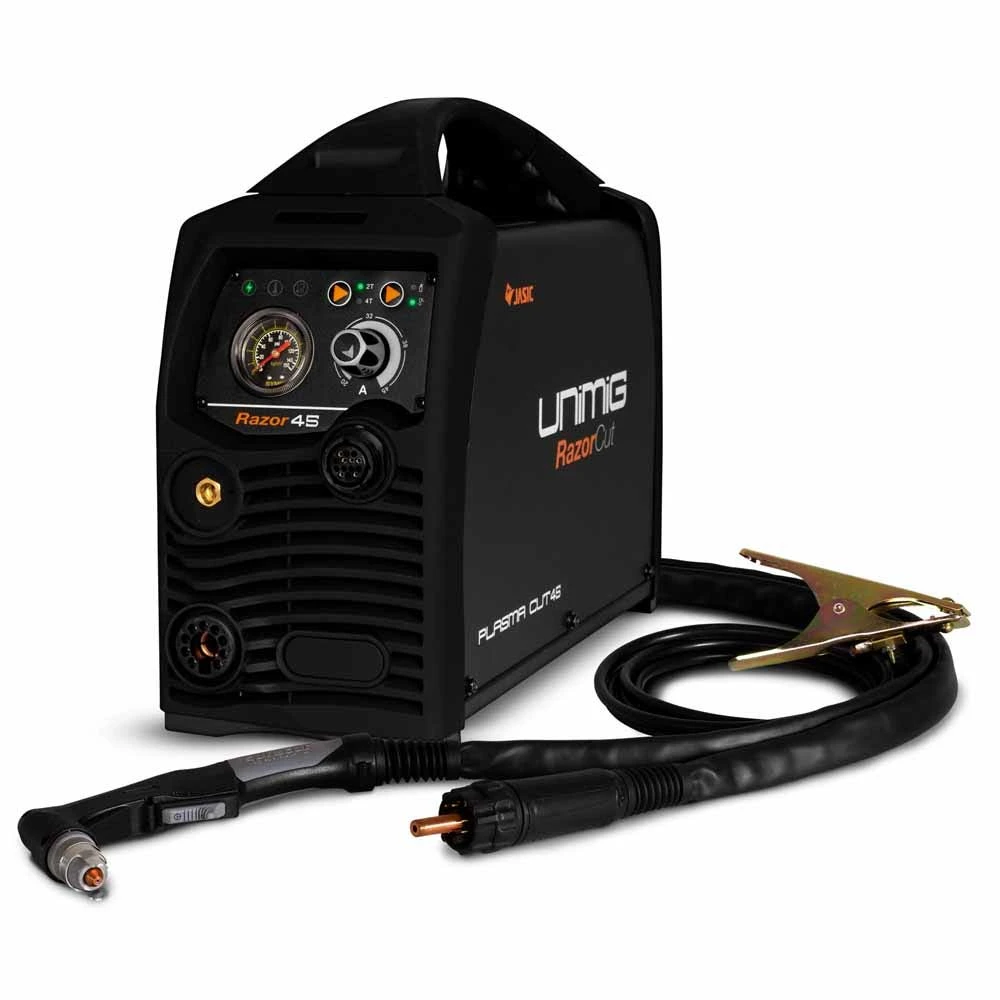

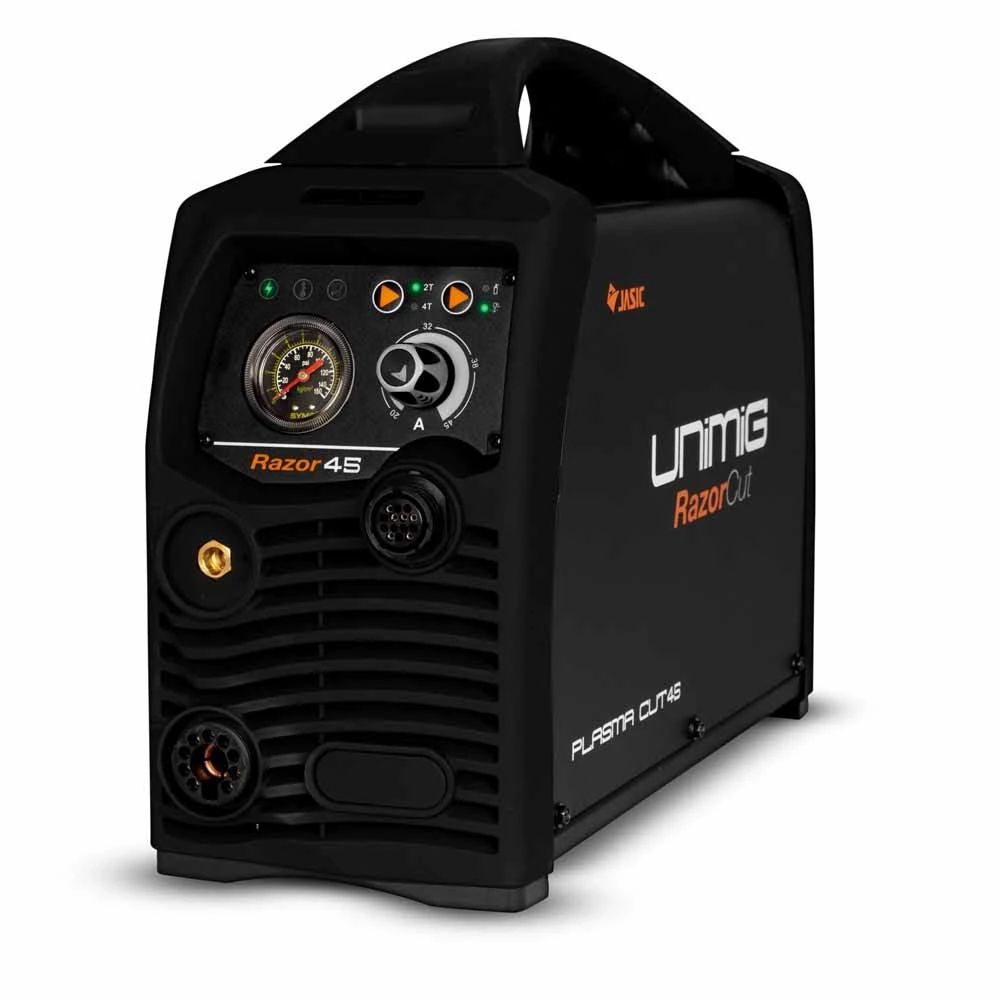

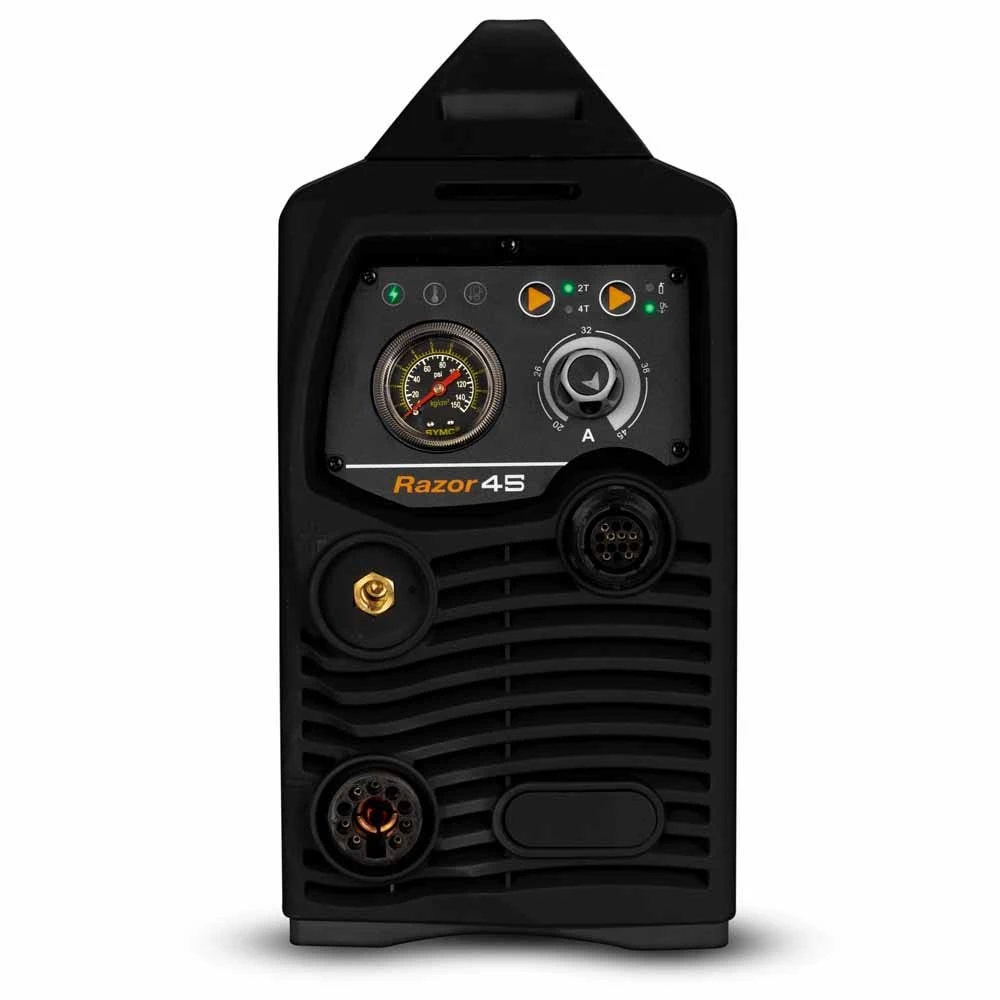

UNIMIG RAZOR Cut 45 Plasma Cutter Kit PK11024

The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.

Specifications:

• Primary Input Voltage: 240v Single Phase
• Supply Plug: 15 Amp
• Rated Input Power: 5.5kva
• Rated Output: 98v
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator: 10.0kva
• Dinse Connector: 10/25
• Standard: AS/NZ60974-1
• Thermal Overload Protection: Over Temperature Warning
• Plasma Cut Current Range: 20-45a
• Plasma Cut Duty Cycle @ 40°C: 25% @ 45a
• Mild Steel Cut Thickness: 16mm
• Mild Steel Severance Thickness: 20mm
• Aluminium Cut Thickness: 8mm
• Aluminium Severance Thickness: 10mm
• Stainless Steel Cut Thickness: 8mm
• Stainless Steel Severance Thickness: 10mm
• Air Flow Draw Off: 189 L/Min
• Air Flow Pressure: 75 Psi
• Plasma Arc Start: Pilot Arc

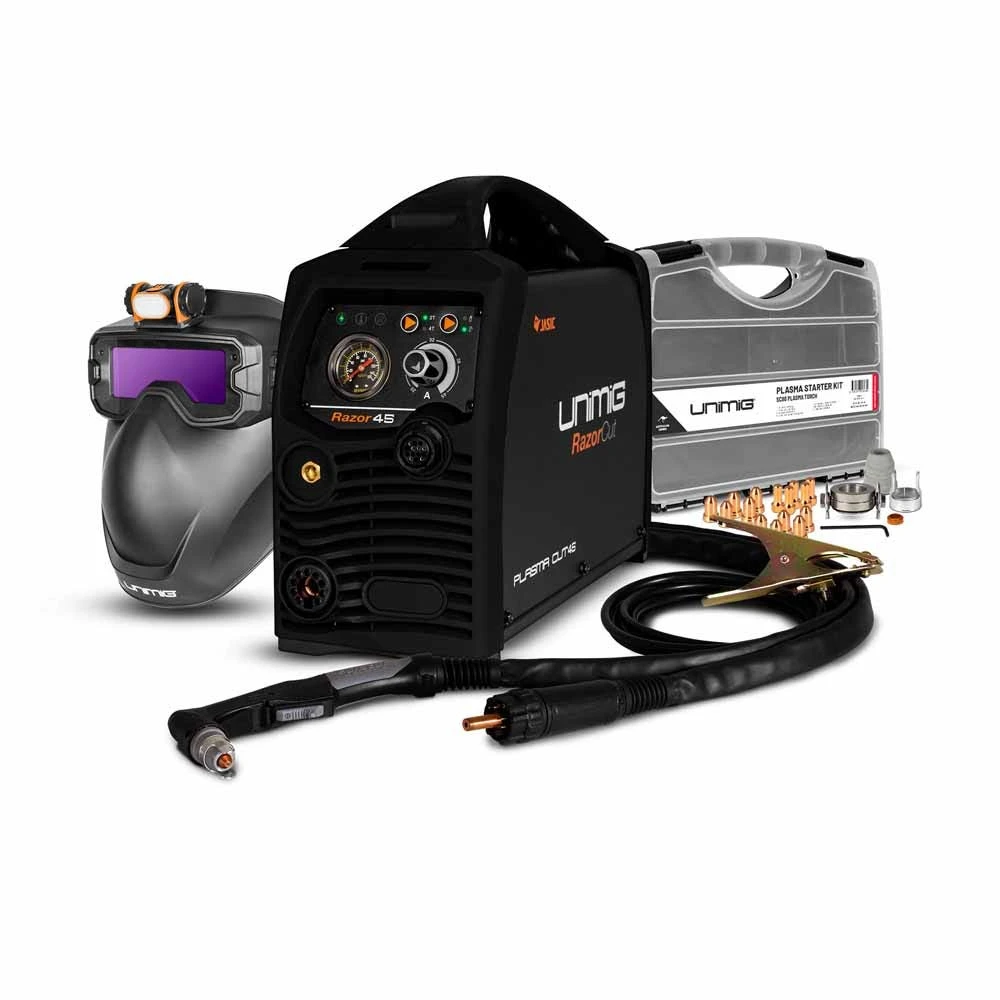

Includes:

• RAZOR™ CUT 45 Plasma Cutter
• 6m SC80 Plasma Torch
• 4m 300 AMP Earth Clamp
• Air Regulator
• Operating Manual
• UNIMIG Auto Welding Goggles (U21001K)
• SC80 Plasma Torch Consumable Starter Kit (UMSK45)
