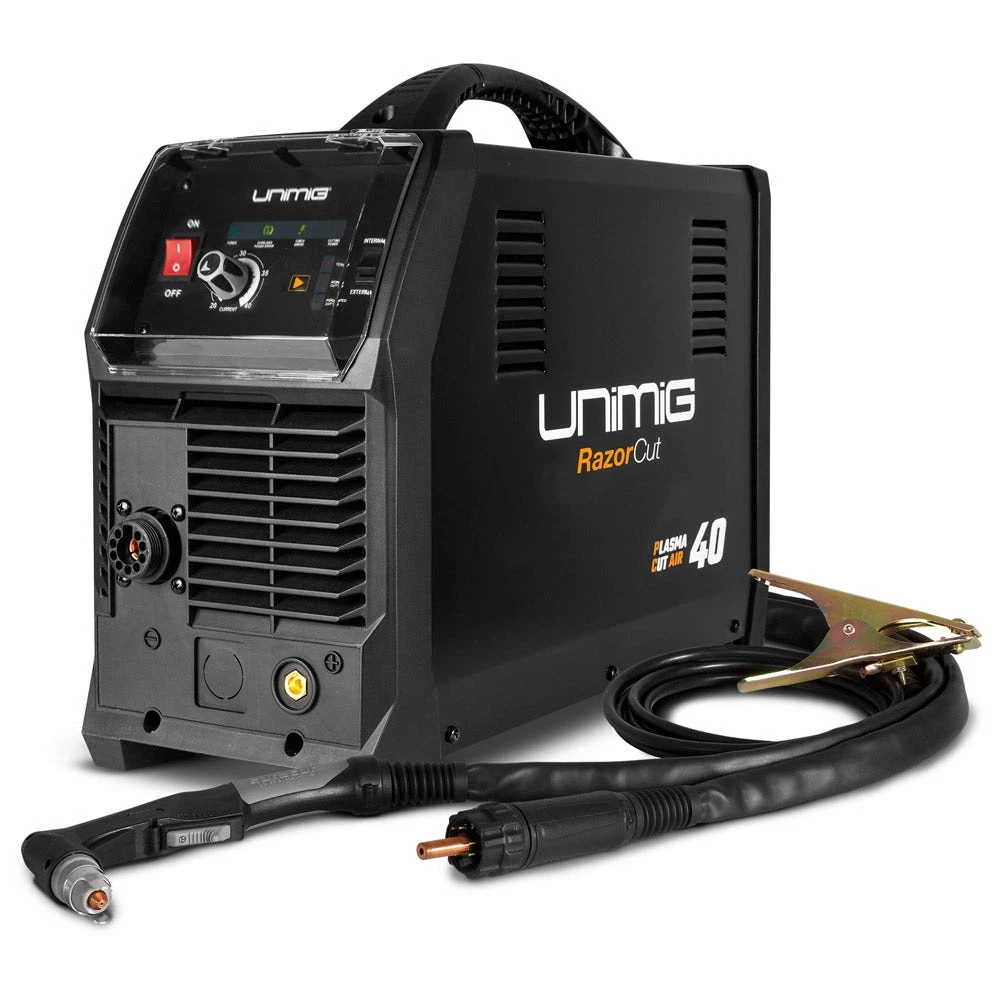

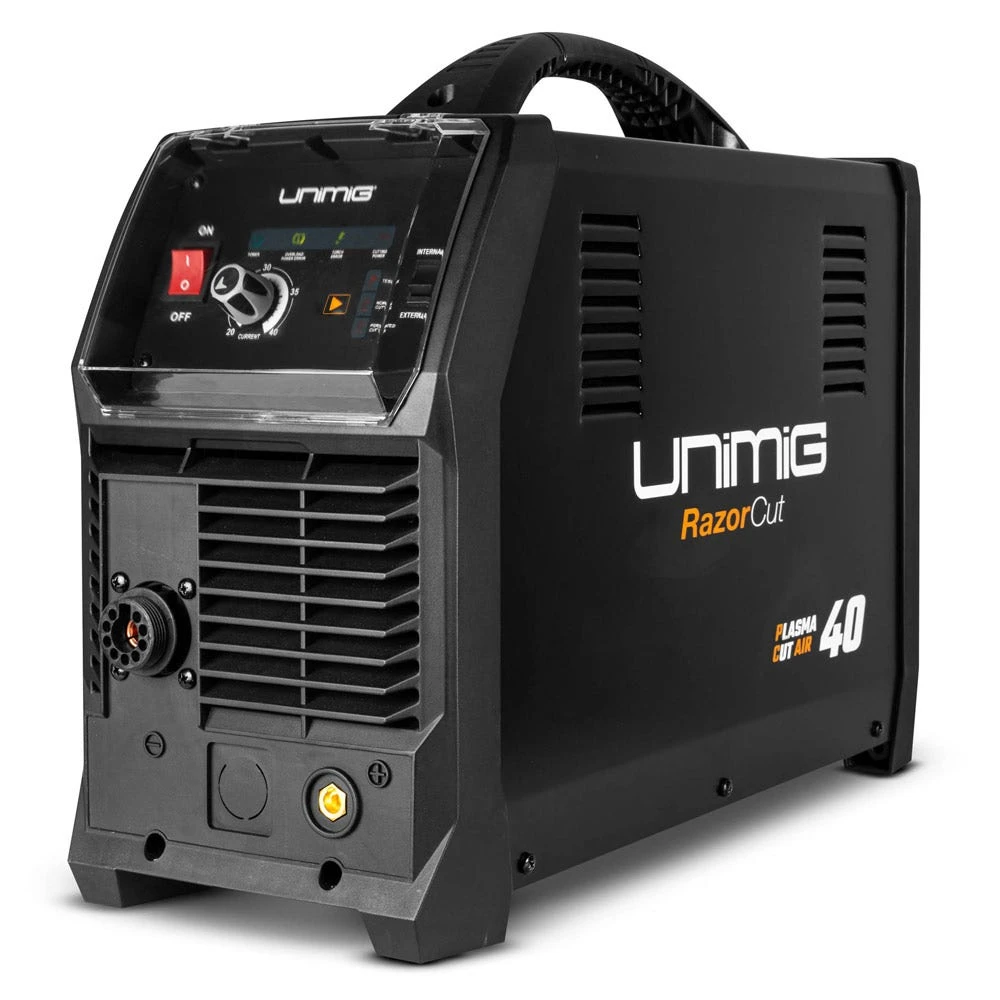

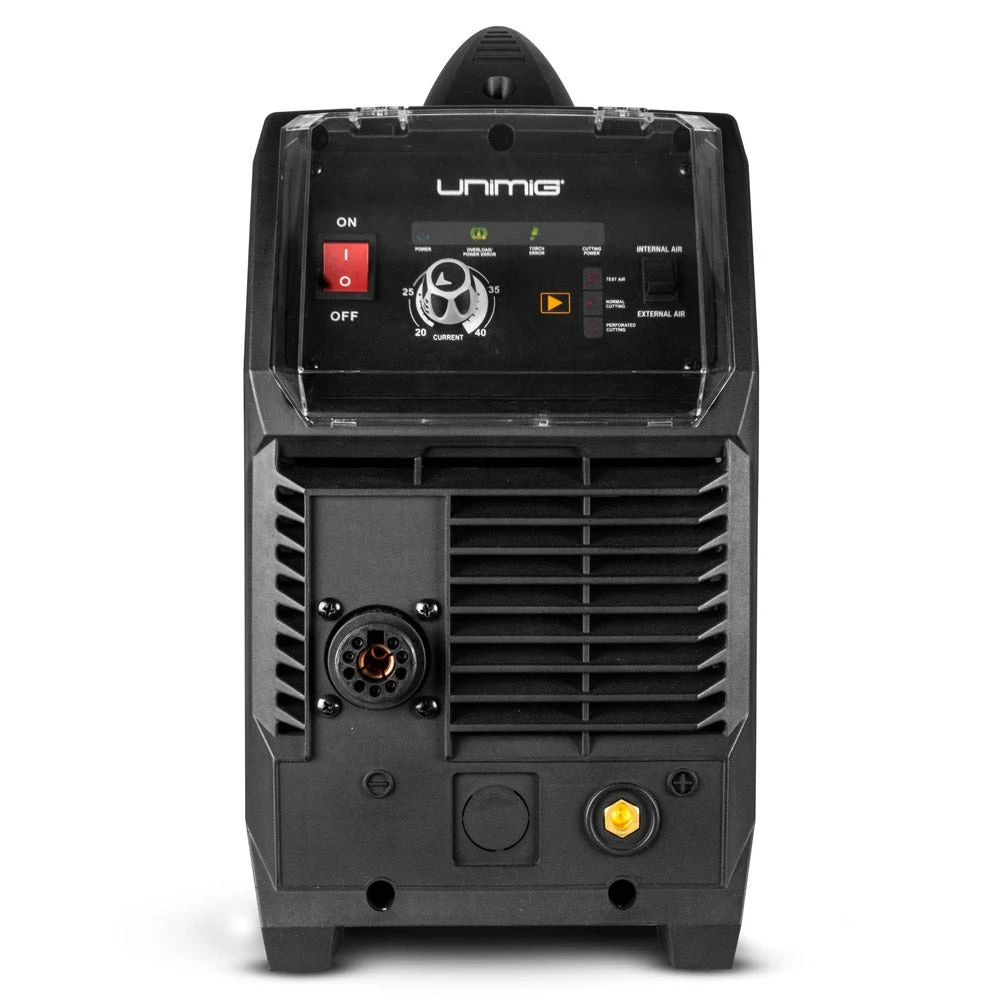

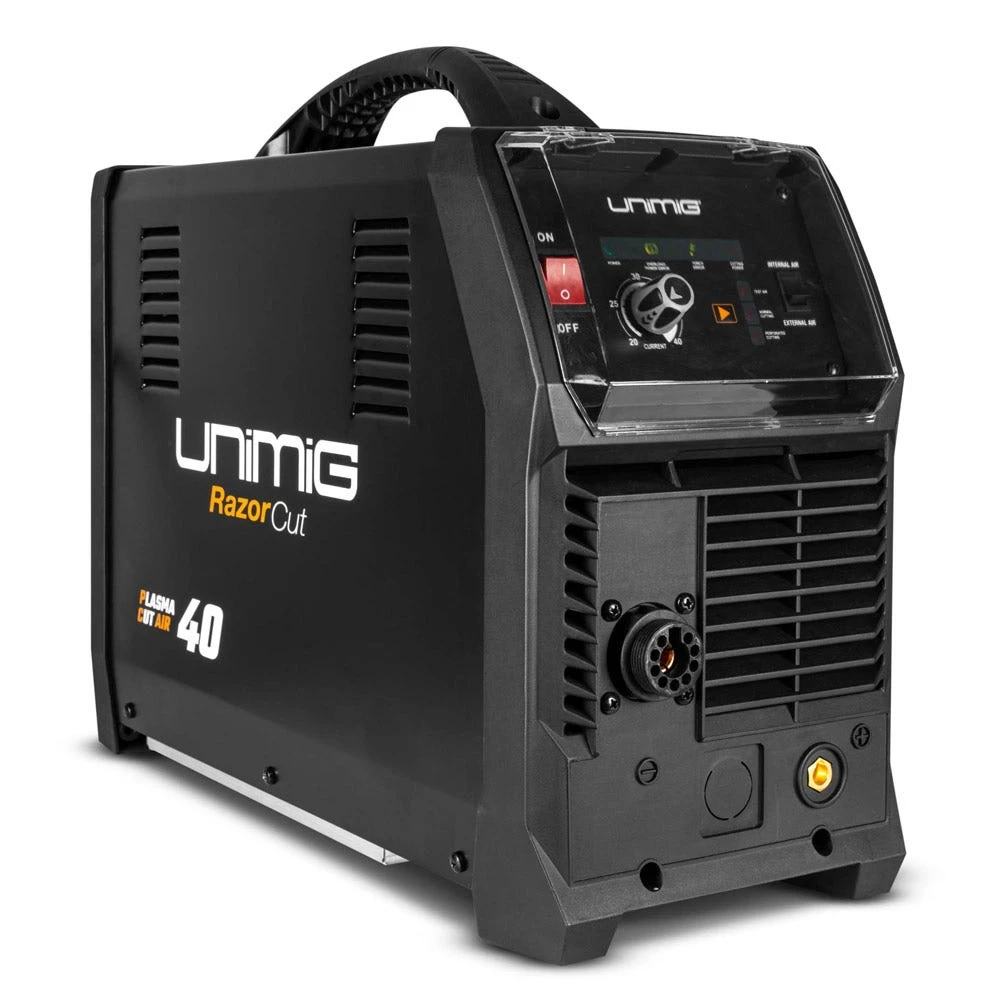

UNIMIG RAZOR CUT 40 AIR Plasma Cutter U14001K

The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.

BUILT-IN AIR COMPRESSOR

The RAZOR CUT 40 AIR comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.

PERFORATED CUTTING MODE

Cuts both solid material and perforated materials with ease.

PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

Machine Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 AMP
• Rated Input Power (kVA): 7.2
• Ieff (A): 15
• Rated Output: 96V
• No Load Voltage (V): 210
• Protection Class: IP21
• Insulation Class: H
• Minimum Generator (kVA): 10.0
• Dinse Connector: 10/25
• Standard: AS/NZ60974-1

Plasma Specifications

• Plasma Cut Current Range: 20-40A
• Plasma Cut Duty Cycle @ 40°C: 25% @ 40A / 60% @ 26A / 100% @ 20A
• Mild Steel Cut Thickness: 12mm (INTERNAL) / 16mm (EXTERNAL)
• Mild Steel Severance Thickness: 14mm (INTERNAL) / 18mm (EXTERNAL)
• Aluminium Cut Thickness: 6mm (INTERNAL) / 8mm (EXTERNAL)
• Aluminium Severance Thickness: 8mm (INTERNAL) / 10mm (EXTERNAL)
• Stainless Steel Cut Thickness: 6mm (INTERNAL) / 8mm (EXTERNAL)
• Stainless Steel Severance Thickness: 8mm (INTERNAL) / 10mm (EXTERNAL)
• Air Flow Draw Off (L/min): 120
• Air Flow Pressure (Bar): 5.17 (75 psi)
• Plasma Arc Start: Pilot Arc
