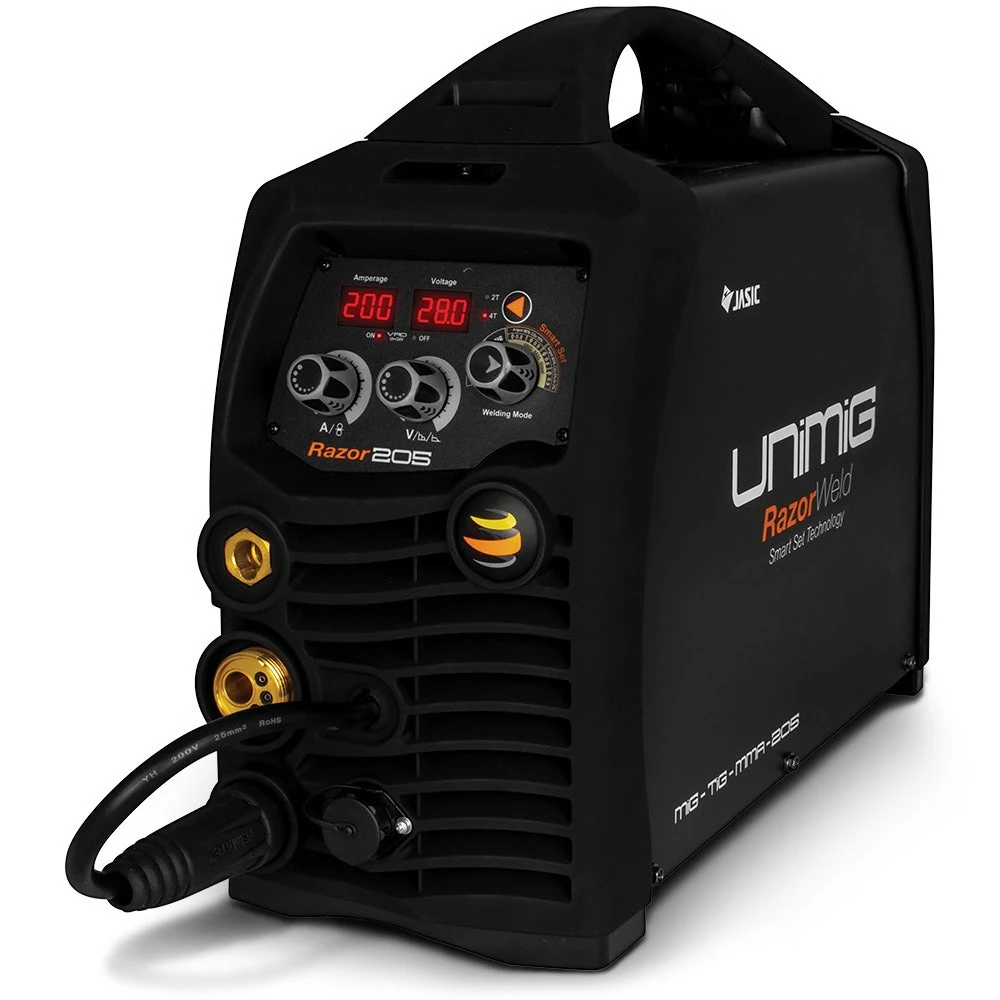

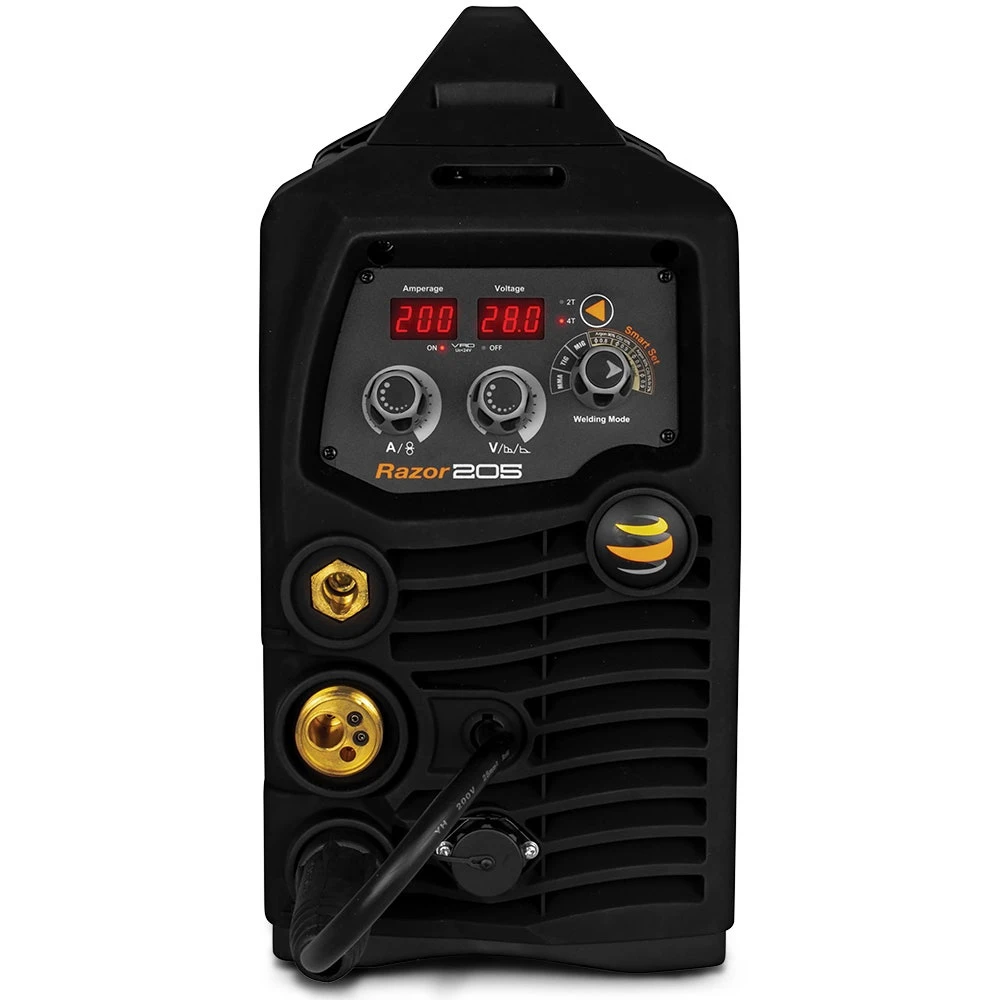

UNIMIG Razor 2005SS Multi-Process Welder KUMJRRW205SSMIG

The RAZOR™ 205 SMART SET™ is one of the easiest multi-process welders available, offering MIG, TIG and STICK welding functions. The SMART SET™ Synergic MIG technology takes the guesswork out of MIG welding, so you get more done in less time. With the inclusion of a Spool Gun connection and lightweight construction, the RAZOR™ 205 SMART SET™ goes from worksite to workshop with ease.

• 15 AMP Plug
• Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK
• 4 Synergic MIG Welding Programs
• Geared Wire Drive
• Spool Gun Ready
• Push-Pull Gun Ready

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 Amp
• Rated Input Power (Kva): 9.4
• Ieff (A): 15.0
• Rated Output: 30a/15.5V – 200a/24.0V
• No Load Voltage (V): 53
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator (kVa): 11.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• Mig Welding Current Range: 30-200a
• Mig Duty Cycle @ 40°C: 20% @ 200a
• Mig Wire Size Range: 0.6-1.0mm
• Mig Wire Spool Size: 1kg / 5kg
• Drive Roller Size: 30/22
• Tig Function Type: Dc Lift Arc
• Tig Welding Current Range: 10-200a
• Tig Duty Cycle @ 40°C: 35% @ 200a
• Stick Welding Current Range: 10-200a
• Stick Duty Cycle @ 40°C: 15% @ 200a
• Stick Electrode Range: 2.5-4.0mm

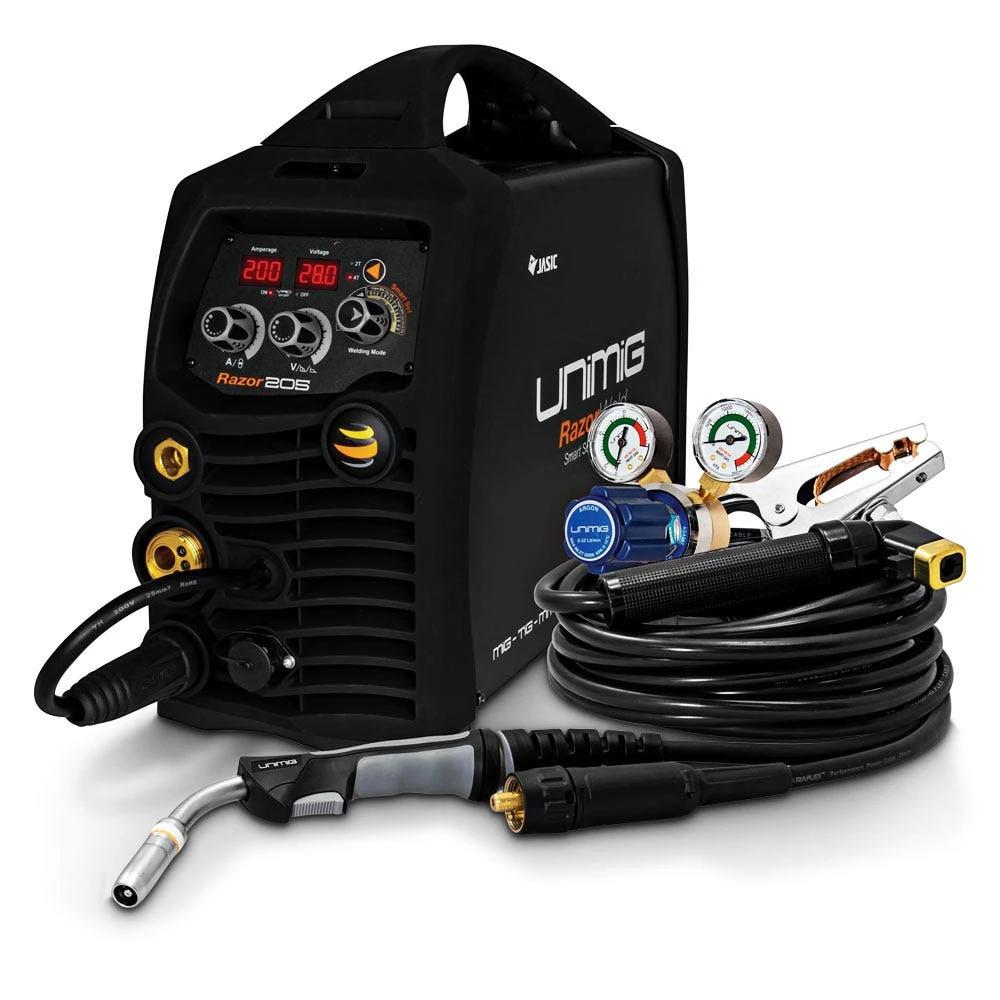

Includes:

• 1 x RAZOR 205 SMART SET MIG/TIG/STICK Welder
• 1 x 4m SB25 MIG Torch (including consumables)
• 1 x 4m Twist Lock Electrode Holder
• 1 x 300 Amp Earth Clamp & Lead
• 1 x Twin Gauge Argon Regulator
• 1 x 2m Gas Hose Complete with fittings
• Operating Manual
