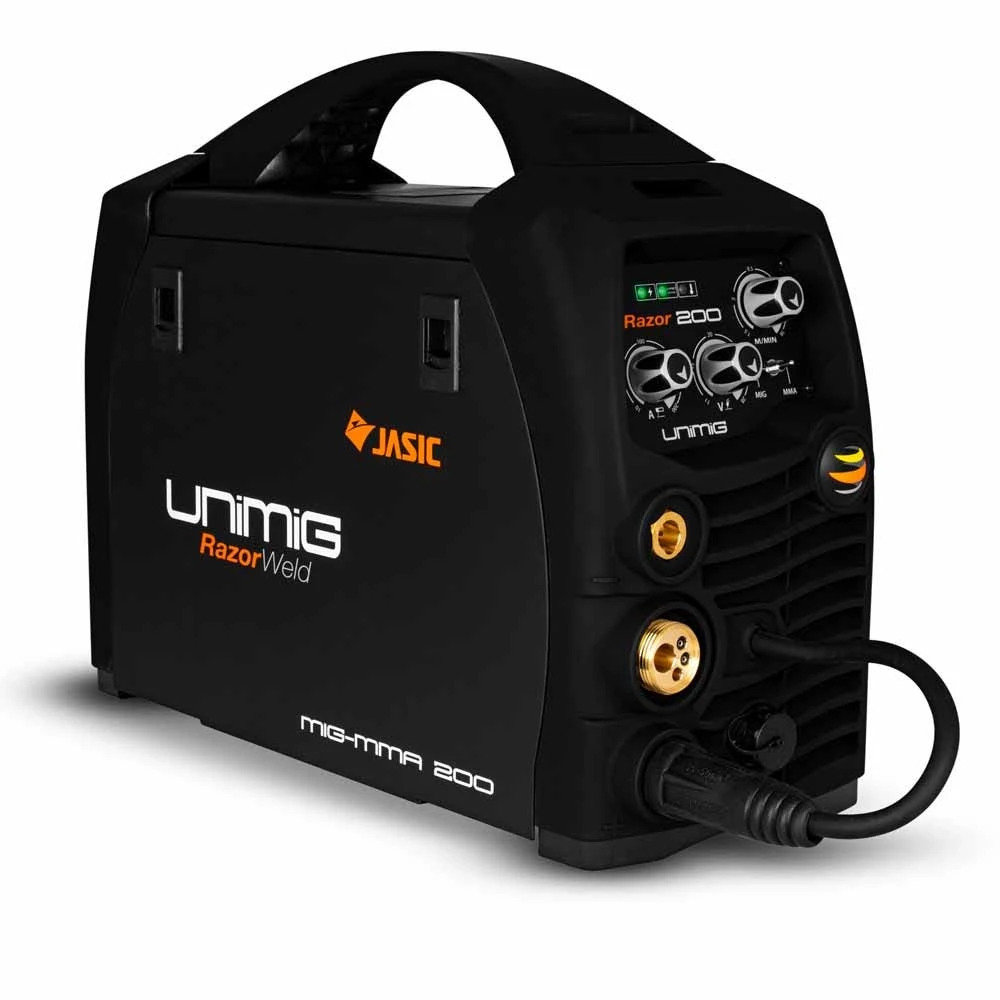

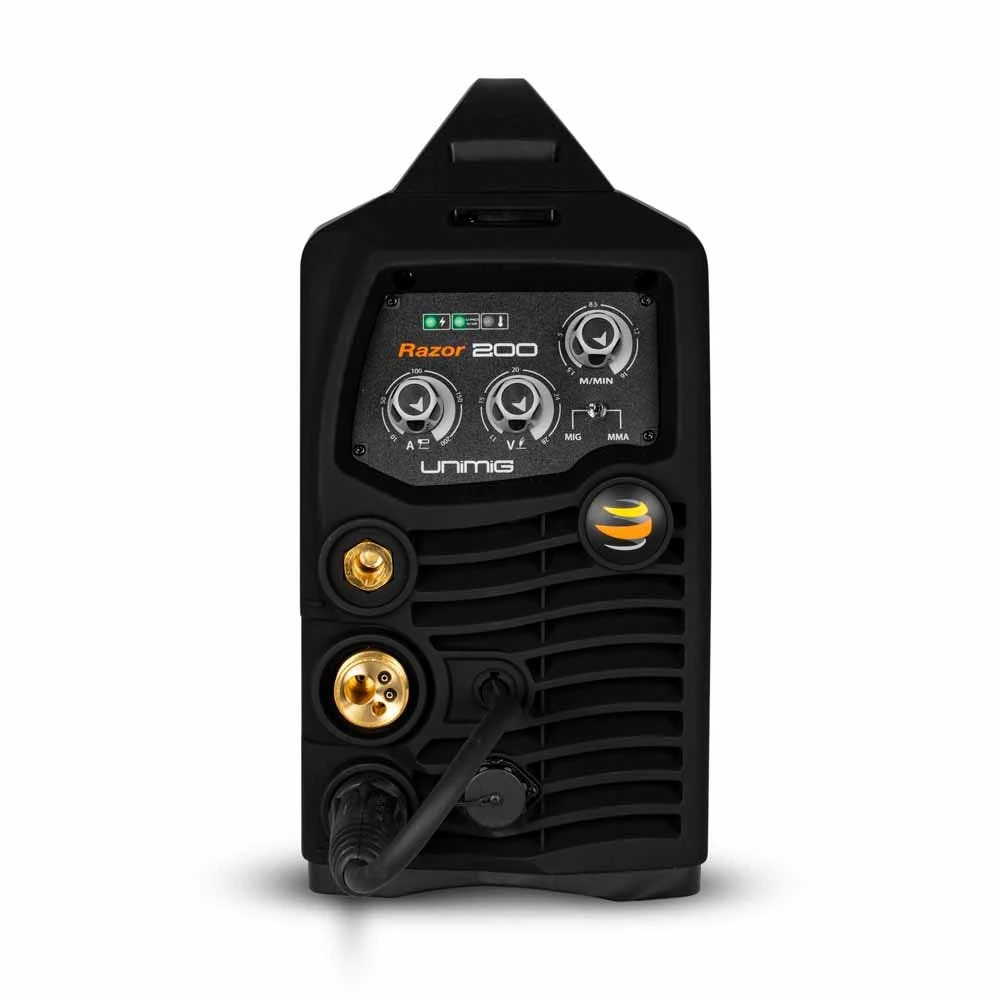

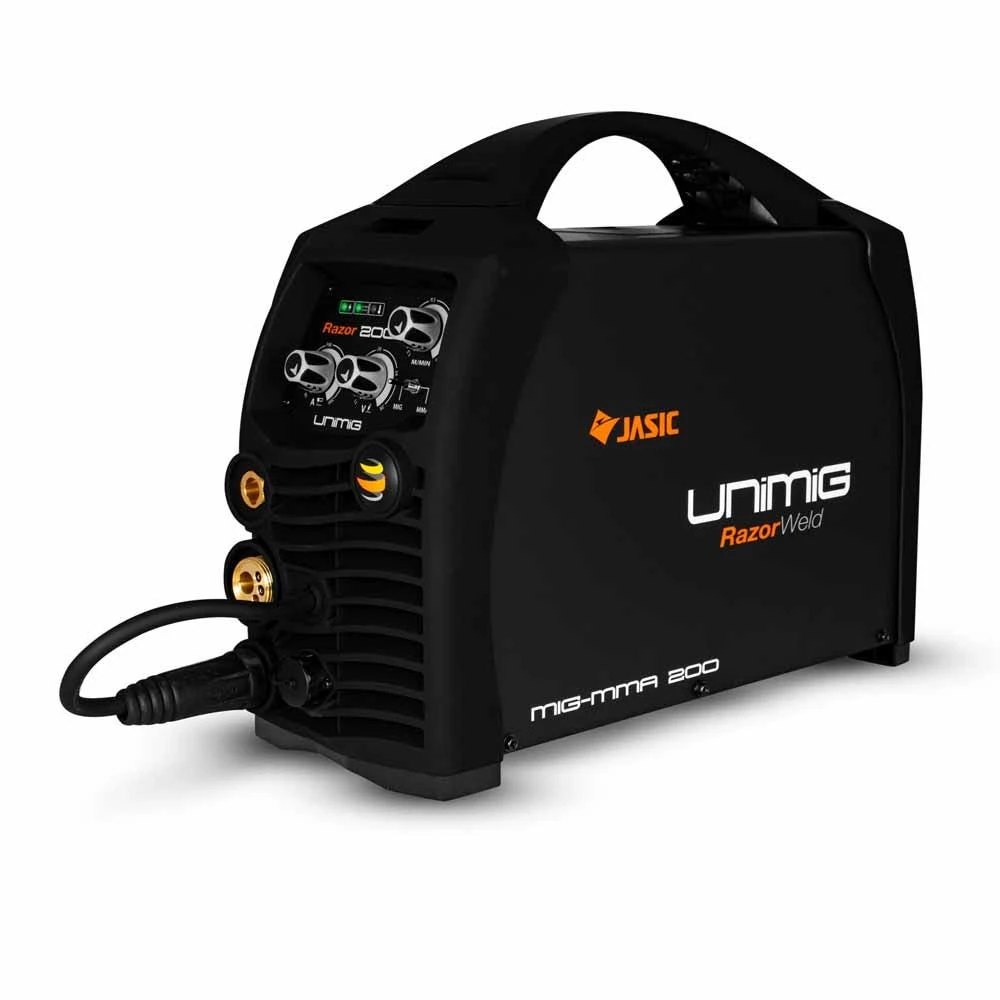

UNIMIG Razor 200 MIG/STICK Welder Bundle PK11053

The RAZOR™ 200 is the perfect MIG and STICK welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed for the workshop and for site work. The Spool Gun connection gives you the added flexibility of using softer wires and smaller spools, giving you all the features you need in a lightweight machine.

Specifications

• Primary Input Voltage: 240v Single Phase
• Supply Plug: 15 Amp
• Rated Input Power (Kva): 9.4
• Ieff (A): 15.0
• Rated Output: 30A/15.5V – 200A/24.0V
• Protection Class: Ip21s
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator (Kva): 11.0
• Dinse Connector: 35/50
• Standard: As/Nz60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
• Mig Welding Current Range: 30-200a
• Mig Duty Cycle @ 40°C: 20% @ 200a
• Mig Wire Size Range: 0.6-1.0mm
• Mig Wire Spool Size: 1kg / 5kg
• Mig Welding Thickness Range: 3-12mm
• Drive Roller Size: 30/22
• Stick Welding Current Range: 10-200a
• Stick Duty Cycle @ 40°C: 15% @ 200a
• Stick Electrode Range: 2.5-4.0mm
• Stick Welding Thickness Range: 5-12mm
• Wire Drive: Geared
• Vrd: Yes
• Spool Gun Connection: Yes
• Burnback Adjustment: Yes
• Wire Inch: Yes
• Thermal Overload Protection: Over Temperature Warning

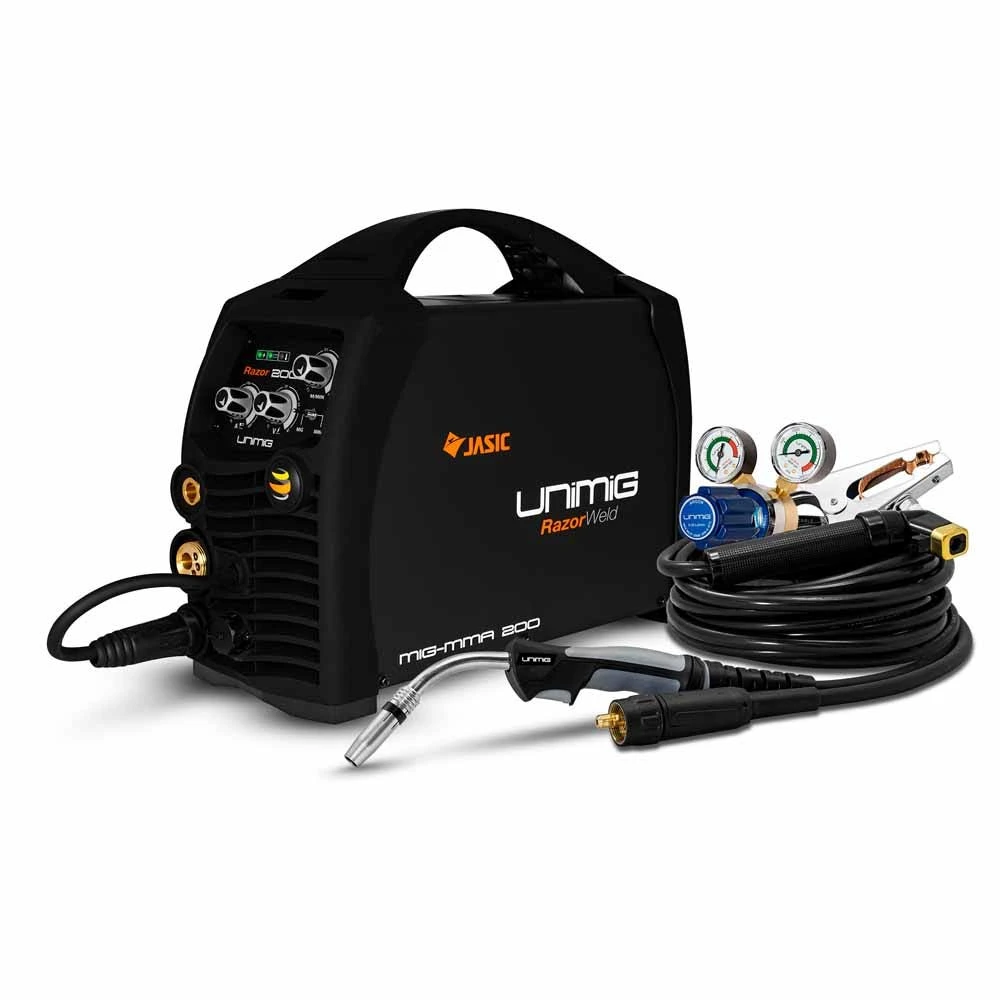

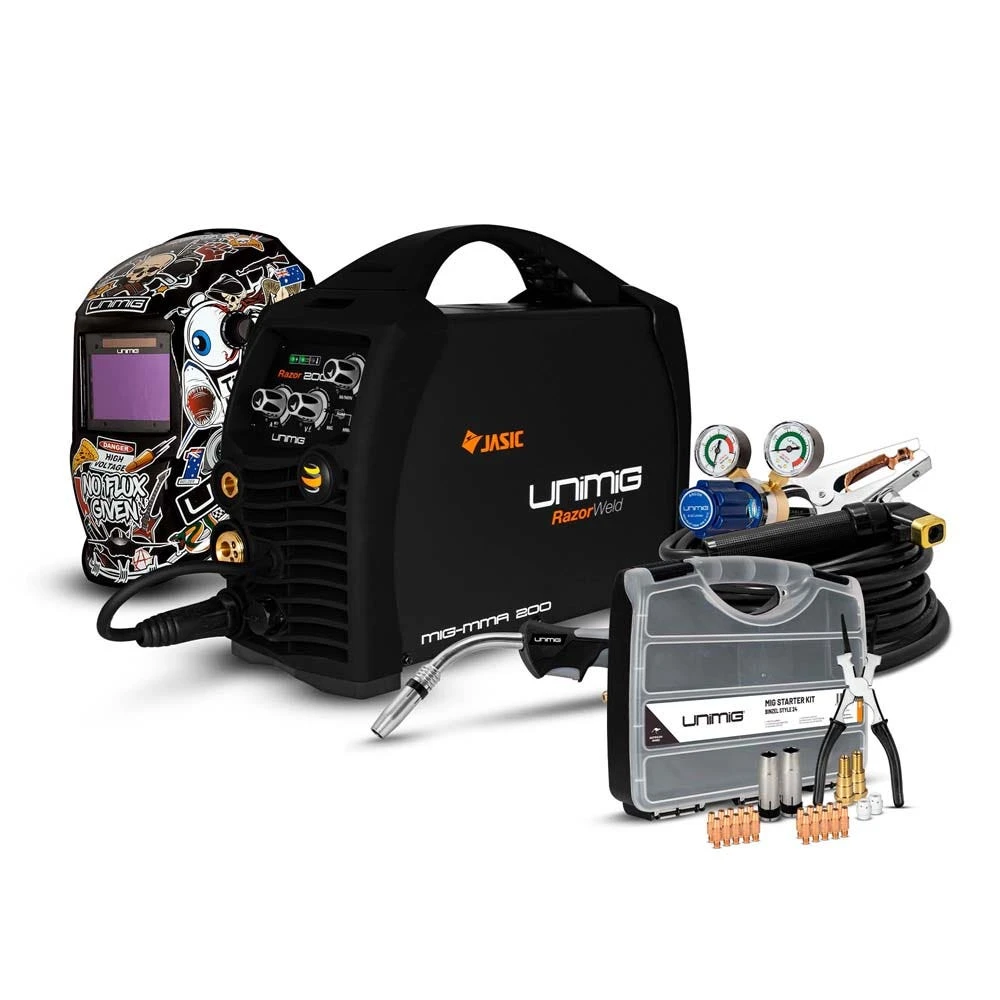

Includes

• RAZOR 200 MIG/STICK Power Source
• SB24 Sure Grip MIG Torch (including consumables)
• 4m Twist Lock Electrode Holder
• 300 Amp Earth Clamp & Lead
• Twin Gauge Argon Regulator
• 2m Gas Hose Complete with fittings
• Operating Manual
• CHAOS Welding Helmet (UM-H-CHAOS)
• Binzel Style 24 Consumable Starter Kit (UMSK24)
