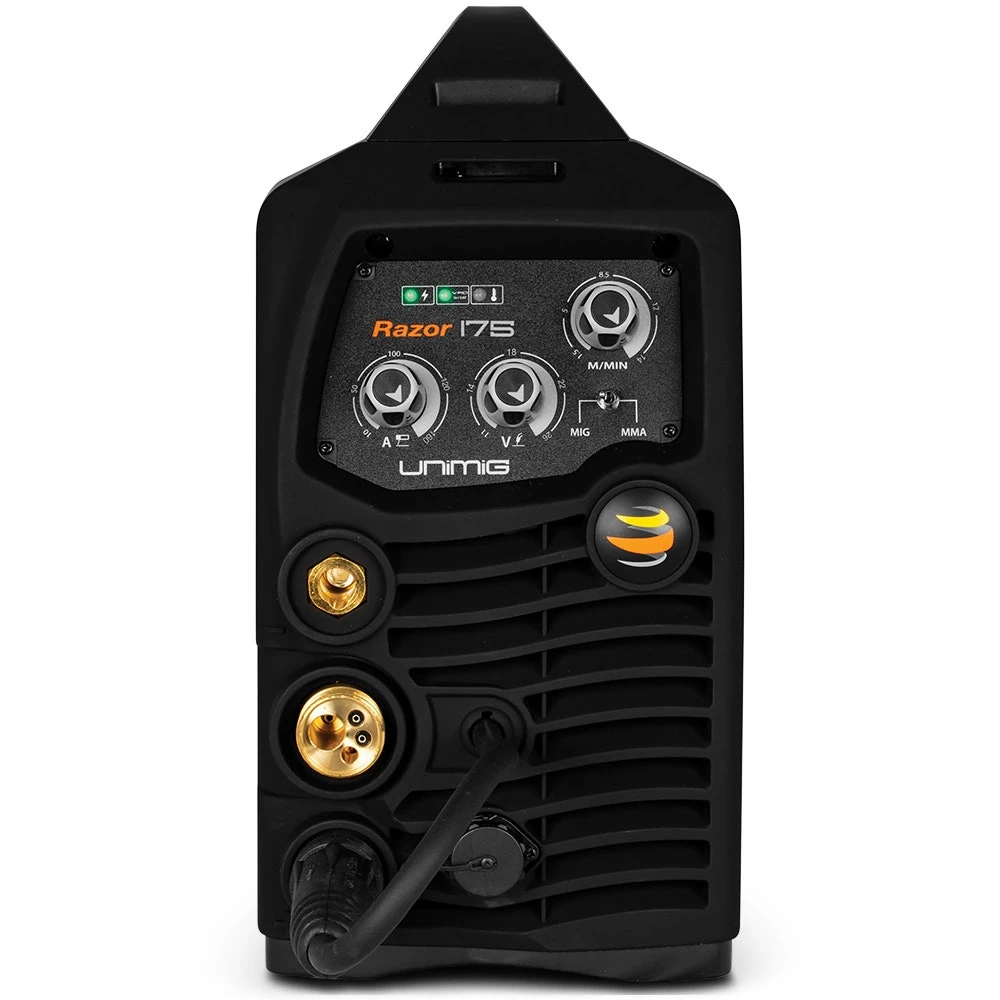

UNIMIG Razor 175A MIG Inverter Welder KUMJRRW175MIG

The RAZOR™ 175 is the perfect MIG and STICK welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed for the workshop and for site work. The Spool Gun connection gives you the added flexibility of using softer wires and smaller spools, giving you all the features you need in a lightweight machine.

• 15 AMP Plug
• Gas-shielded & Gasless MIG / STICK
• Geared Wire Drive
• Spool Gun Ready

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 Amp
• Rated Input Power (kVa): 6.7
• Ieff (A): 14.8
• Rated Output: 30a/15.5V – 175A/22.8V
• No Load Voltage (V): 53
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator (kVa): 11.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
• Mig Welding Current Range: 30-175A
• Mig Duty Cycle @ 40°C: 25% @ 175A
• Mig Wire Size Range: 0.6-0.9mm
• Mig Wire Spool Size: 1kg / 5kg
• Drive Roller Size: 30/10
• Stick Welding Current Range: 10-160A
• Stick Duty Cycle @ 40°C: 25% @ 160A
• Stick Electrode Range: 2.5-4.0mm

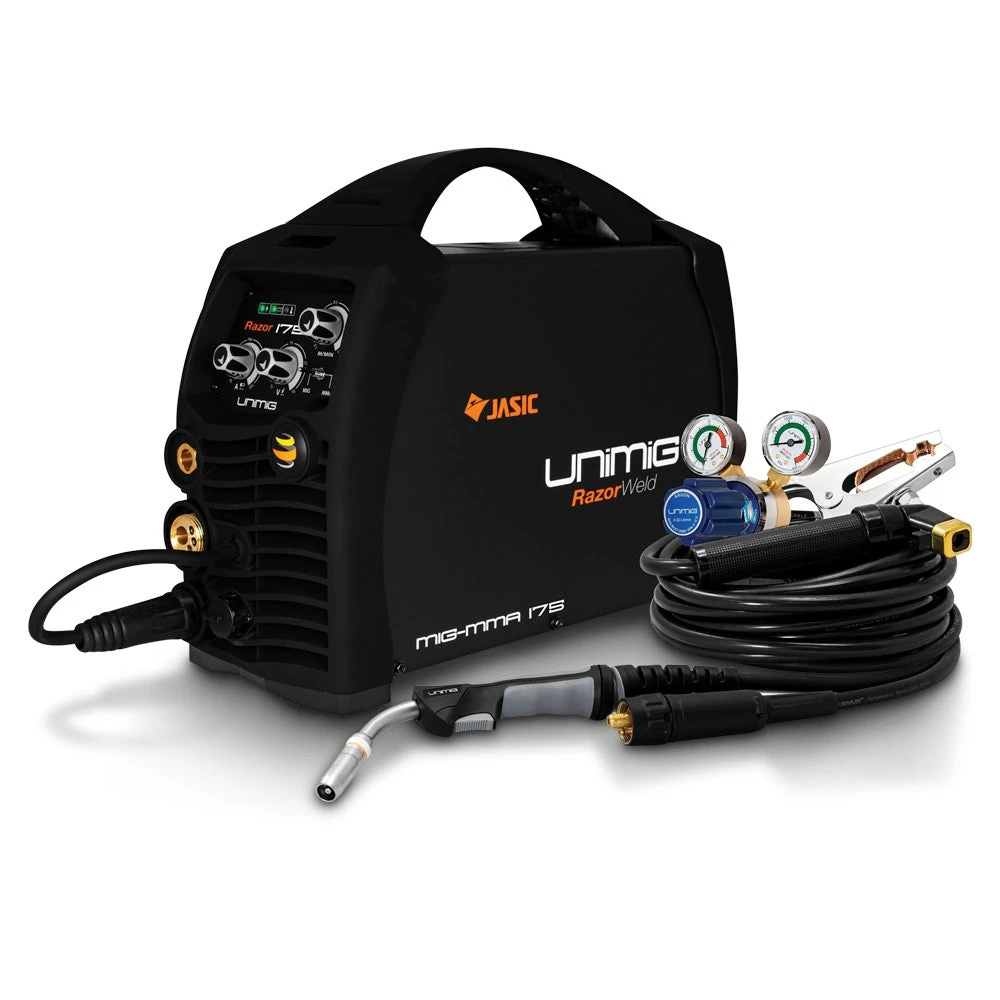

Includes:

• 1 x Razor MIG 175 Power Source
• 1 x SB25 3 metre Euro connect MIG torch
• 1 x 4 metre Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
• 1 x UNIMIG Twin Gauge Argon regulator
• Instruction Manual
