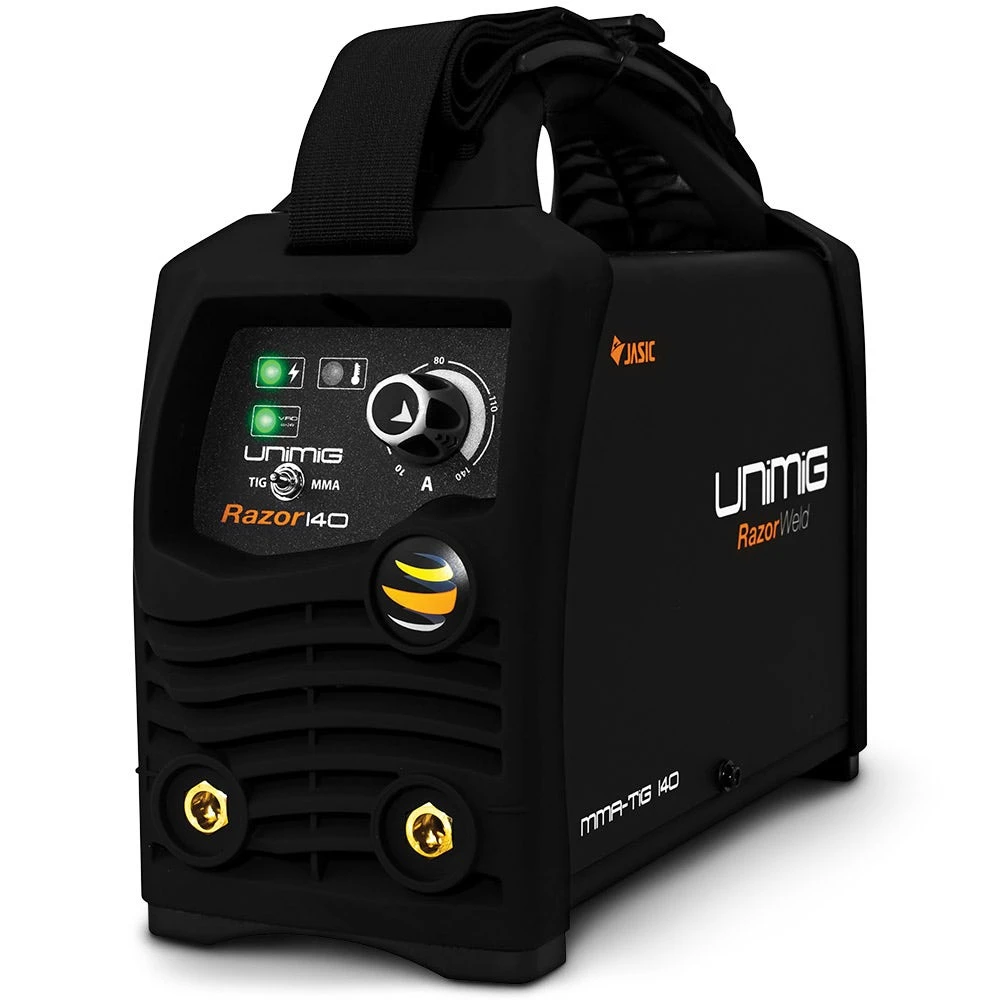

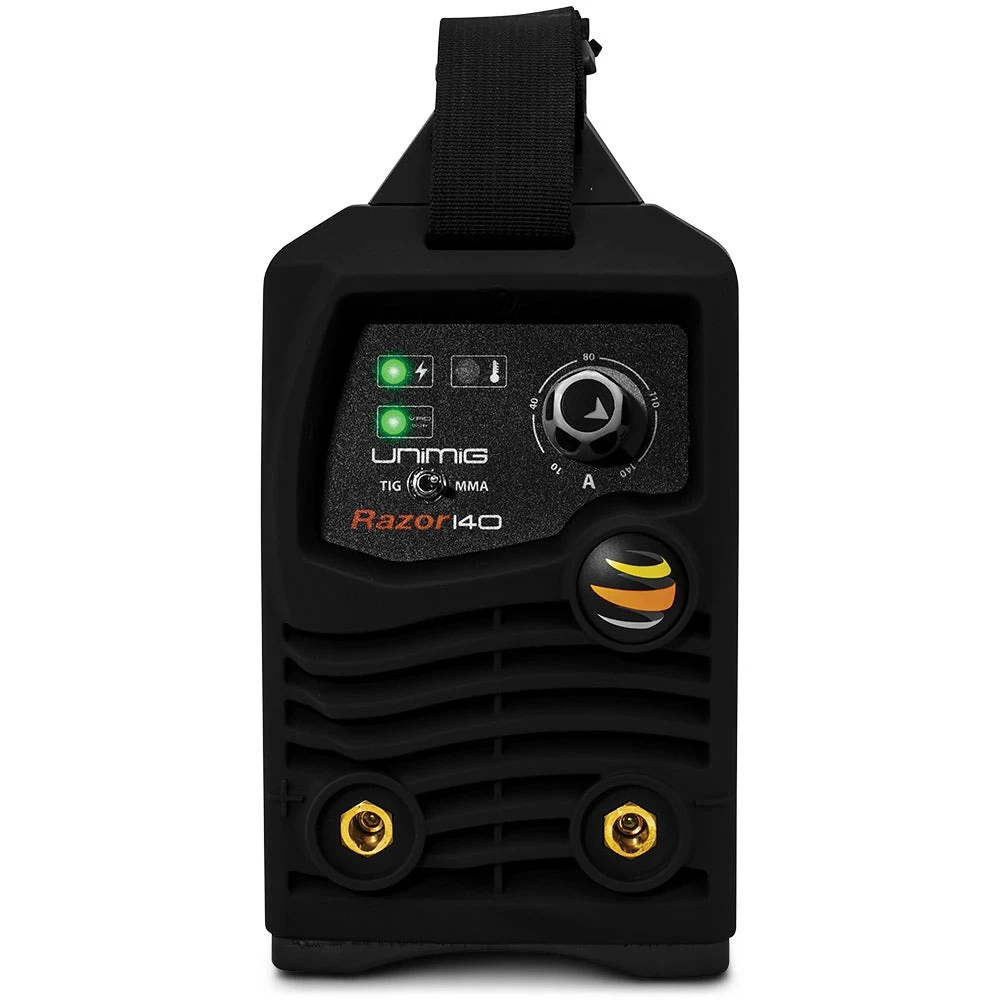

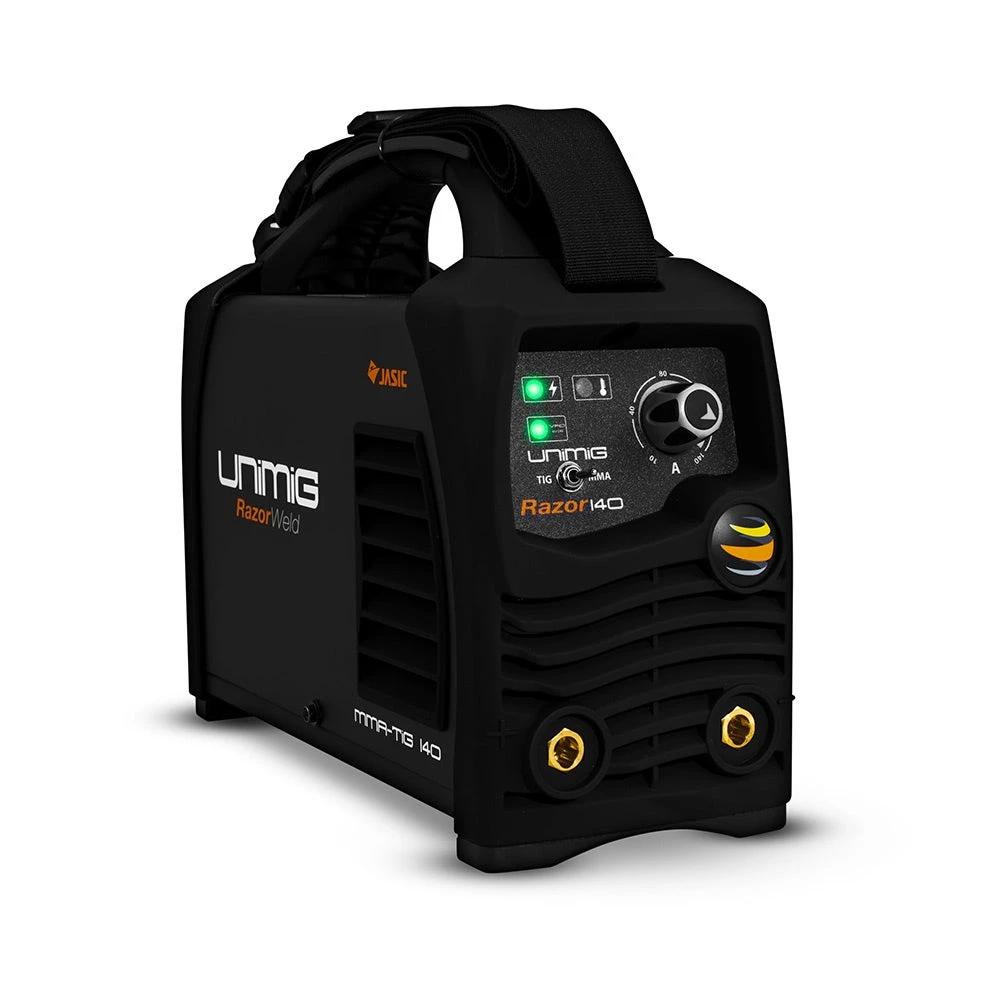

UNIMIG Razor 140A Stick/DC TIG Welder KUMJRRW140CA

The RAZOR™ ARC 140 is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 10 AMP plug, this machine is designed to be taken between the workshop and worksites with ease. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

• 10 AMP Plug
• STICK / DC Lift Arc TIG
• Keyable VRD Switch
• Thermal Overload Protection

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 Amp
• Rated Input Power (kVa): 7.0
• Ieff (A): 7.9
• Rated Output: 10-140A
• No Load Voltage (V): 78
• Protection Class: IP21S
• Insulation Class: F
• Minimum Generator (Kva): 8.0
• Dinse Connector: 10/25
• Standard: As/Nz60974-6
• Welds: Mild Steel, Stainless Steel, Copper, Cast Iron
• Tig Function Type: DC Lift Arc
• Tig Welding Current Range: 10-140A
• Tig Duty Cycle @ 40°C: 20% @ 140A
• Stick Welding Current Range: 10-140A
• Stick Duty Cycle @ 40°C: 15% @ 140A
• Stick Electrode Range: 2.5-3.2mm

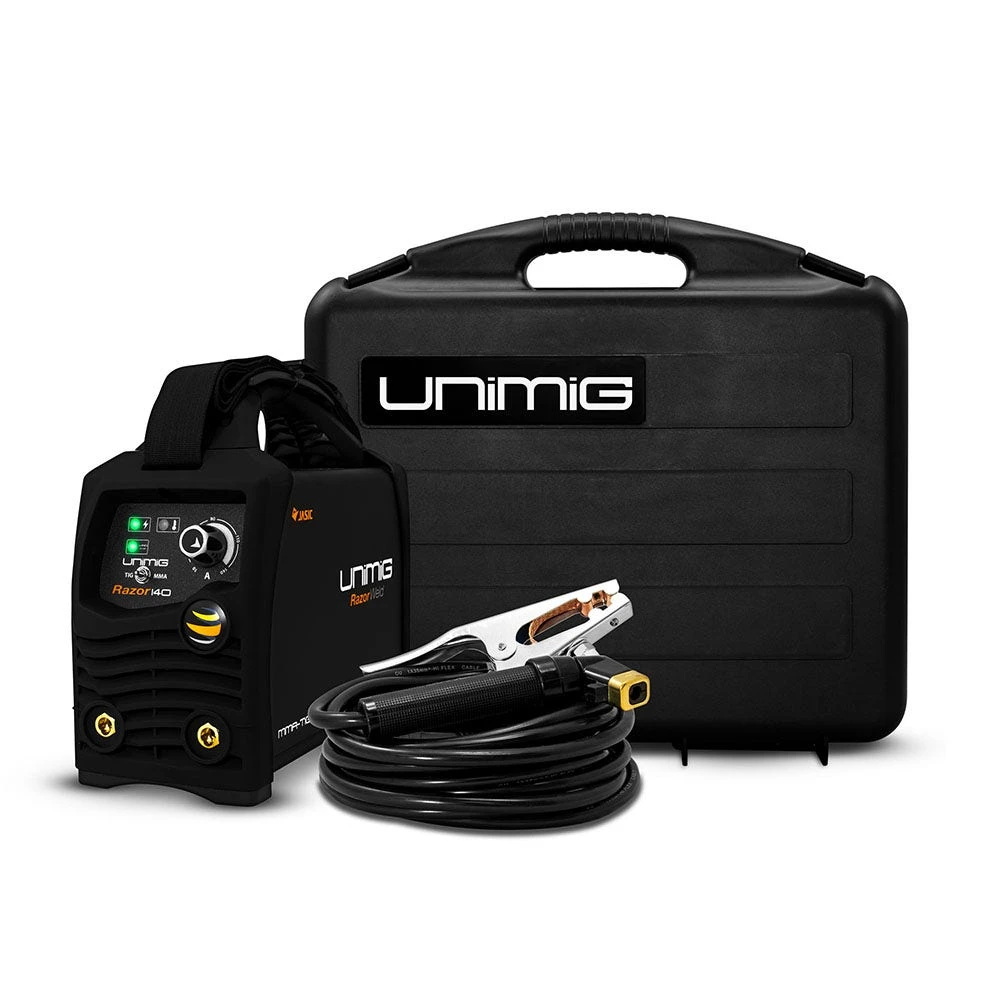

Includes:

• 1 x Razor Arc 140 DC MMA/TIG Power Source
• 1 x 4 metre Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
• 1 x Lightweight Heavy Duty PVC Carry Case
• 1 x Machine Carry Strap
• 1 x Instruction Manual
