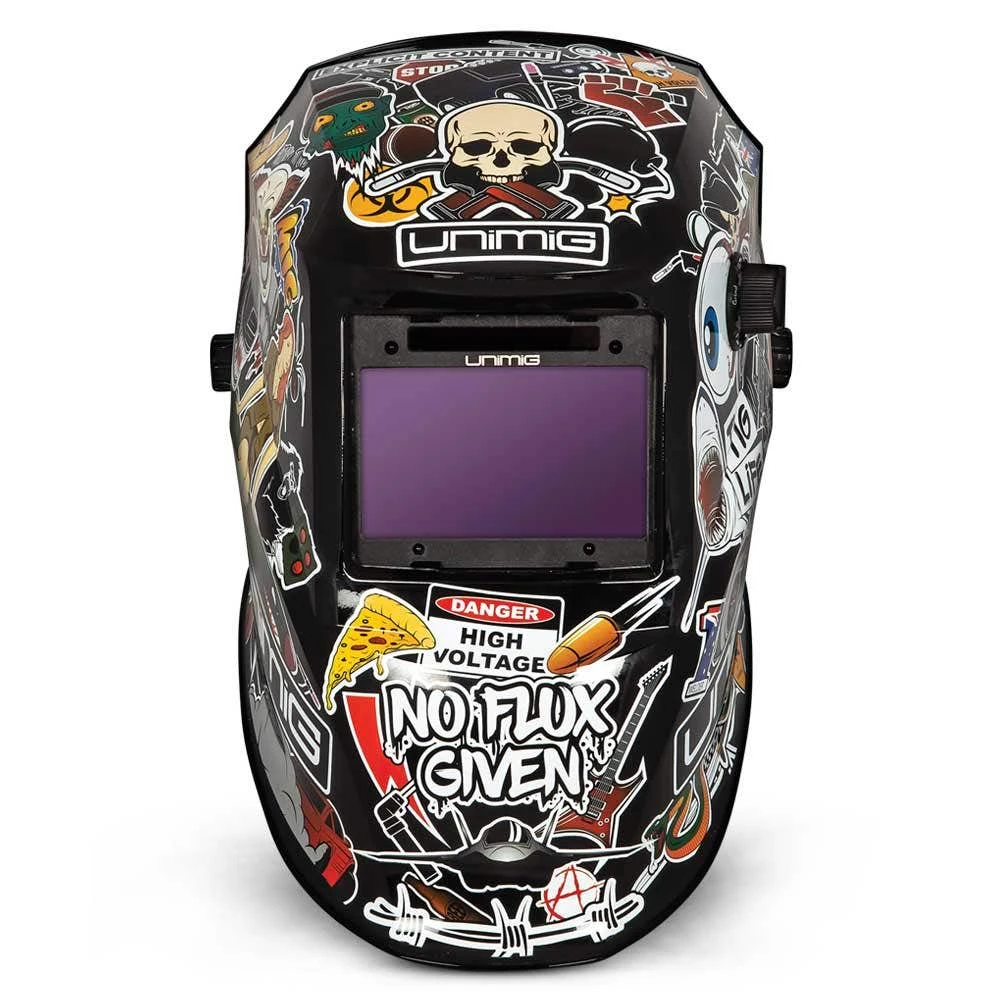

UNIMIG Chaos Automatic Welding Helmet UM-H-CHAOS

The CHAOS™ Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 4 arc sensors, the CHAOS™ Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding. A 100x60mm view allows for large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter. It is suitable for MIG, TIG (Minimum 3A), and STICK welding, as well as plasma cutting.

The CHAOS™ Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.

• 100x60mm: View size
• 9-13: Shade control
• 4 Arc Sensors: Constantly monitor the arc
• Grind Mode: For use when grinding

ELITEVISION™ Lens Technology
Greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.

Specifications

Helmet Specifications

• Filter Dimensions: 110x90x9mm
• View Size: 100x60mm
• Arc Sensors: 4
• Classification: 1/1/1/2
• Light State: 4
• Dark State: 9-13
• UV/IR Protection: DIN15
• Time From Light To Dark: 0.08ms
• Time From Dark To Light: 0.1-0.9s
• Sensitivity Delay: Adjustable (Internal)
• Power Supply: Solar Cells & CR2450 Replaceable Battery
• Operating Temperature: -10ËšC to 65ËšC
• Storage Temperature: -20ËšC to 85ËšC
• Shade Control: Yes (External)
• Grind Mode: Yes (External)
• Standards: CE, ANSI , CSA, AS/NZS
