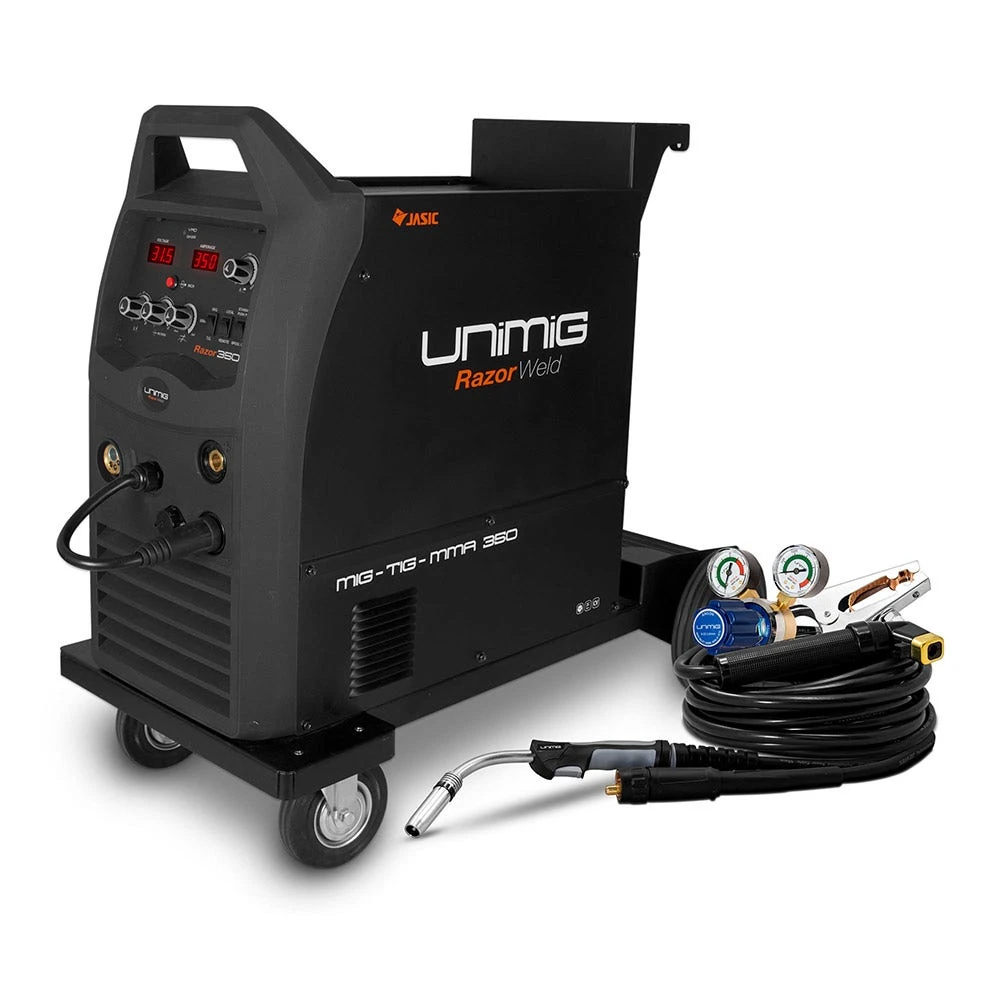

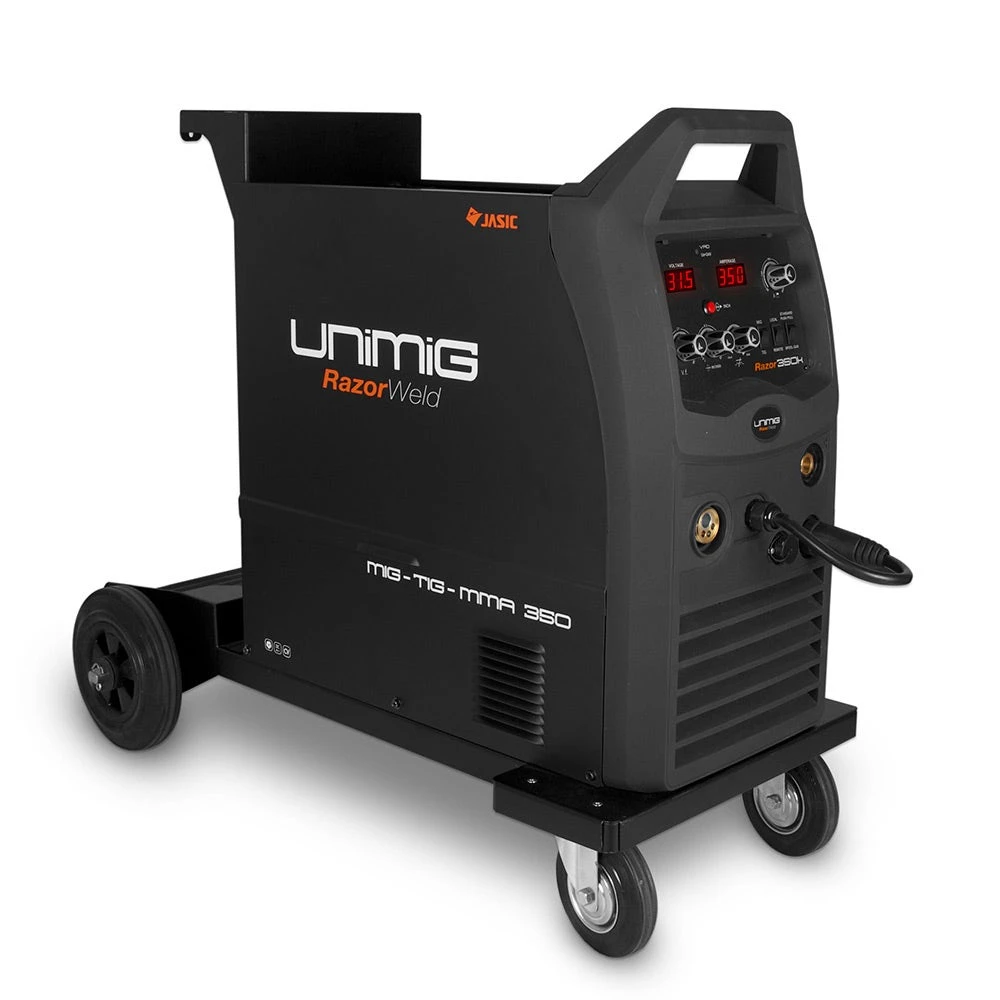

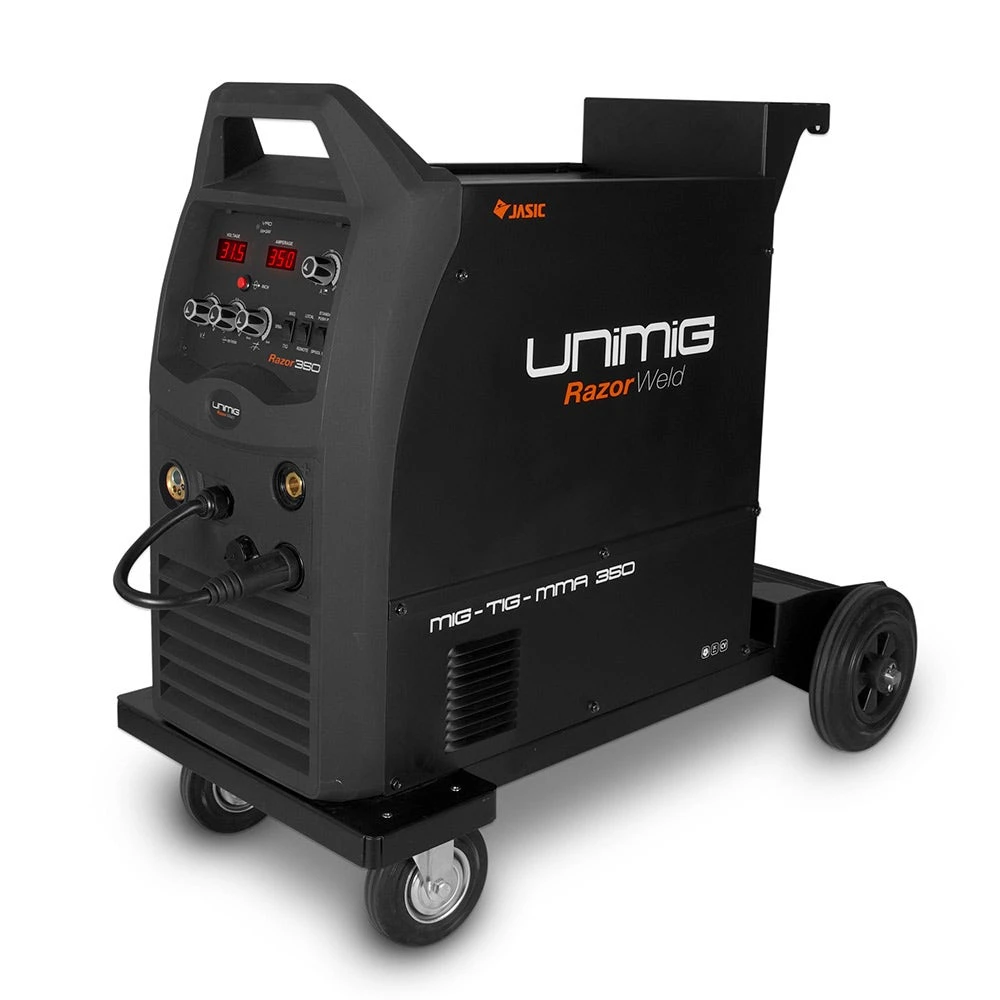

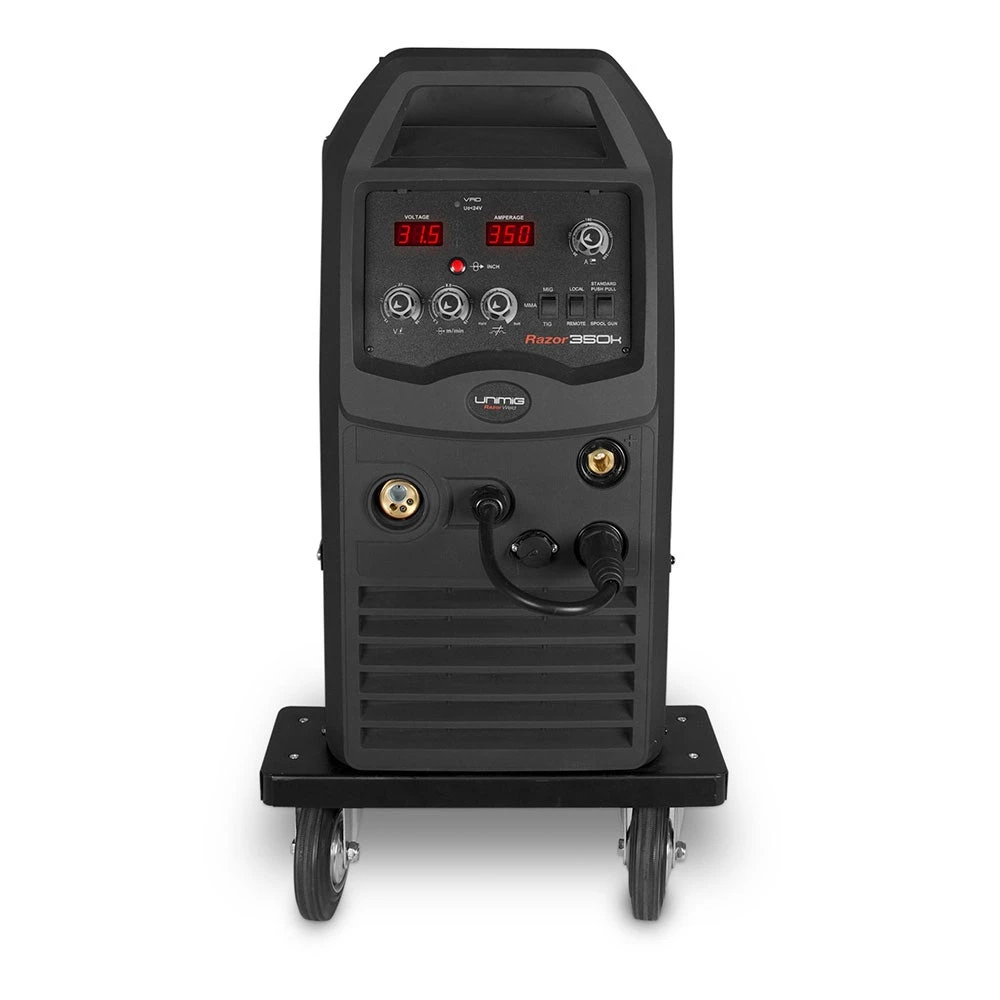

UNIMIG 350A Razor Compact MIG/TIG/Stick Welder KUMJR350K-SG

The RAZOR™ 350 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 350 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.

• 415V Three-Phase
• Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK
• Geared Wire Drive
• Spool Gun Ready
• Push-Pull Gun Ready

Specifications

• PRIMARY INPUT VOLTAGE: 415V Three Phase
• SUPPLY PLUG: No plug supplied (20 or 32 AMP Recommended)
• RATED INPUT POWER (kVA): 15.0
• Ieff (A): 13.3
• Imax (A): 21.0
• RATED OUTPUT: 50A/16.5V – 350A/31.5V
• NO LOAD VOLTAGE (V): 64
• PROTECTION CLASS: IP21S
• INSULATION: CLASS F
• POWER FACTOR: 0.93
• MINIMUM GENERATOR (kVA): 20.0
• DINSE CONNECTOR: 35/50
• STANDARD: AS/NZ60974-1
• WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• MIG
  • MIG WELDING CURRENT RANGE 50:-350A
  • MIG DUTY CYCLE @ 40°C “40%: @ 350A
  • 100% @: 221A”
  • MIG WIRE SIZE RANGE: 0.6-1.2mm
  • MIG WIRE SPOOL SIZE: 5kg / 15kg
  • MIG WELDING THICKNESS RANGE: 1-16mm
  • DRIVE ROLLER SIZE: 30/22 (x2)
• TIG
  • TIG FUNCTION TYPE DC: Lift Arc
  • TIG WELDING CURRENT RANGE: 20-350A
  • TIG DUTY CYCLE @ 40°C “40% @: 350A
  • 100% @: 221A”
  • TIG WELDING THICKNESS RANGE: 1-10mm
• Stick
  • STICK WELDING CURRENT RANGE: 20-350A
  • STICK DUTY CYCLE @ 40°C “40%: @ 350A
  • 100%: @ 221A”
  • STICK ELECTRODE RANGE: 2.5-6.0mm
  • STICK WELDING THICKNESS RANGE: 2-16mm
