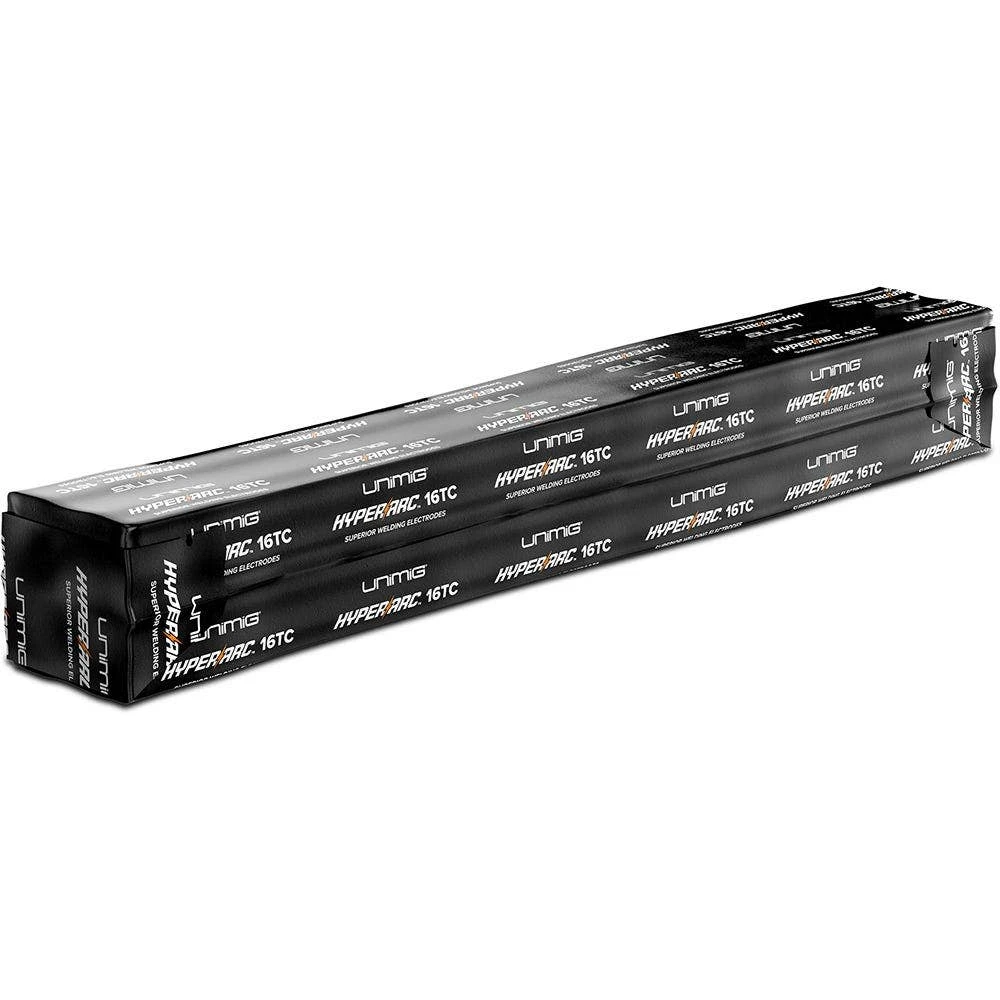

UNIMIG 2kg 4.0mm HYPERARC Low Hydrogen 16TC Electrode U63010

The HYPERARC 16TC is a Twin Coated 7016 Low Hydrogen electrode. With its all positional capabilities (except vertical down) it is the optimum choice when high quality welding is required.

• Excellent arc stability
• High penetration
• Less spatter and easy releasing slag
• Concentrated arc

Specifications

• Yield Stress: 470 MPa
• Tensile Strength: 583 MPa
• Elongation: 29%
• Impact Test: 93J @ -20°C
• Recommended Current: AC & DC+
• Current Range: 110-180A
• Classification:
• AS/NZS ISO 4855: B E4916 A U H10
• AWS A5.1: E7016

Applications

• Structural Steel Fabrication
• Pressure Vessel welding
• Pipe welding
• Repair work for Agriculture and machinery
• Earthmoving equipment repairs
• Layering, “Buttering”
