MICHIGAN Variable Shade True View Auto Darkening Welding Helmet MICADH8502

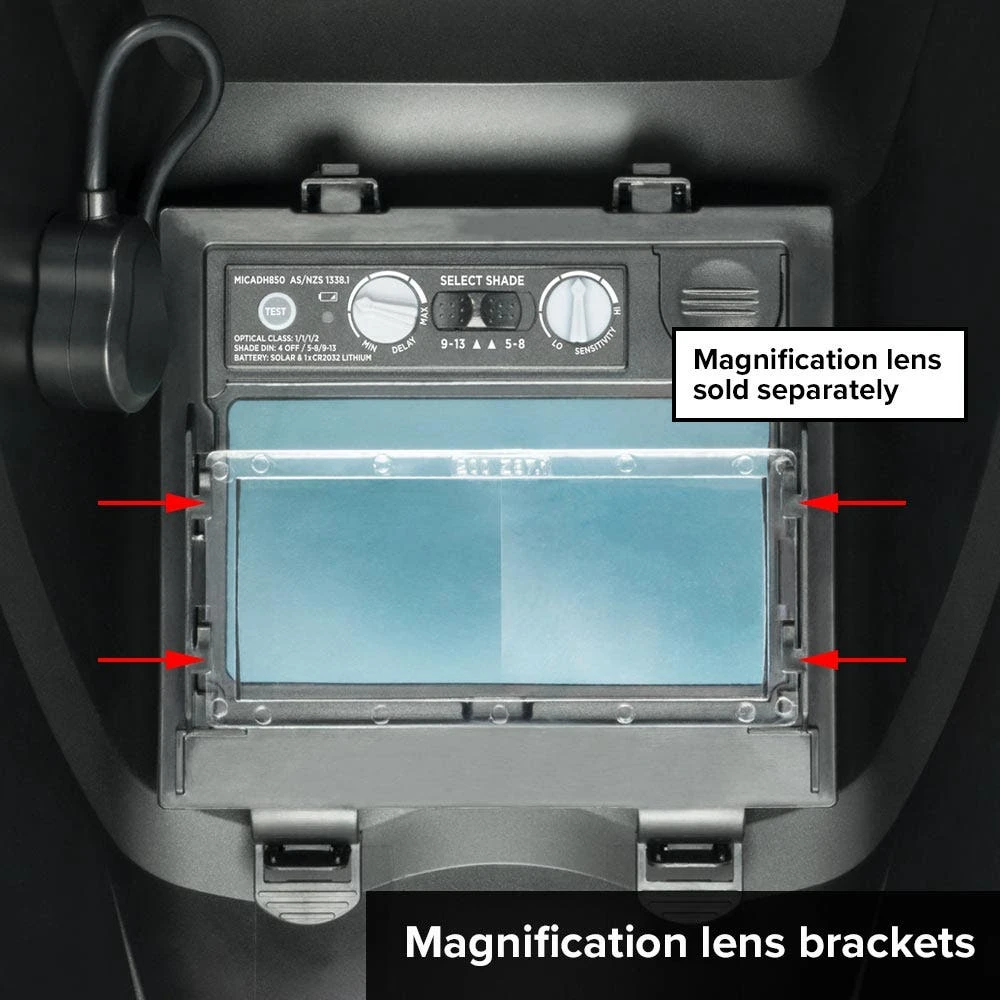

If you’re looking for a premium welding helmet with a budget price tag the MICHIGAN range of True View Auto Darkening welding helmets has you covered. Our latest range of helmets have some impressive features across the range including; variable shade controls, 1/1/1/2 optical clarity rating, magnifying/cheater lens brackets and grind mode. To top it off, all our helmets meet AS/NZS 1337.1-2012 & AS/NZS 1338.1-2012 standards for peace of mind.

Specifications

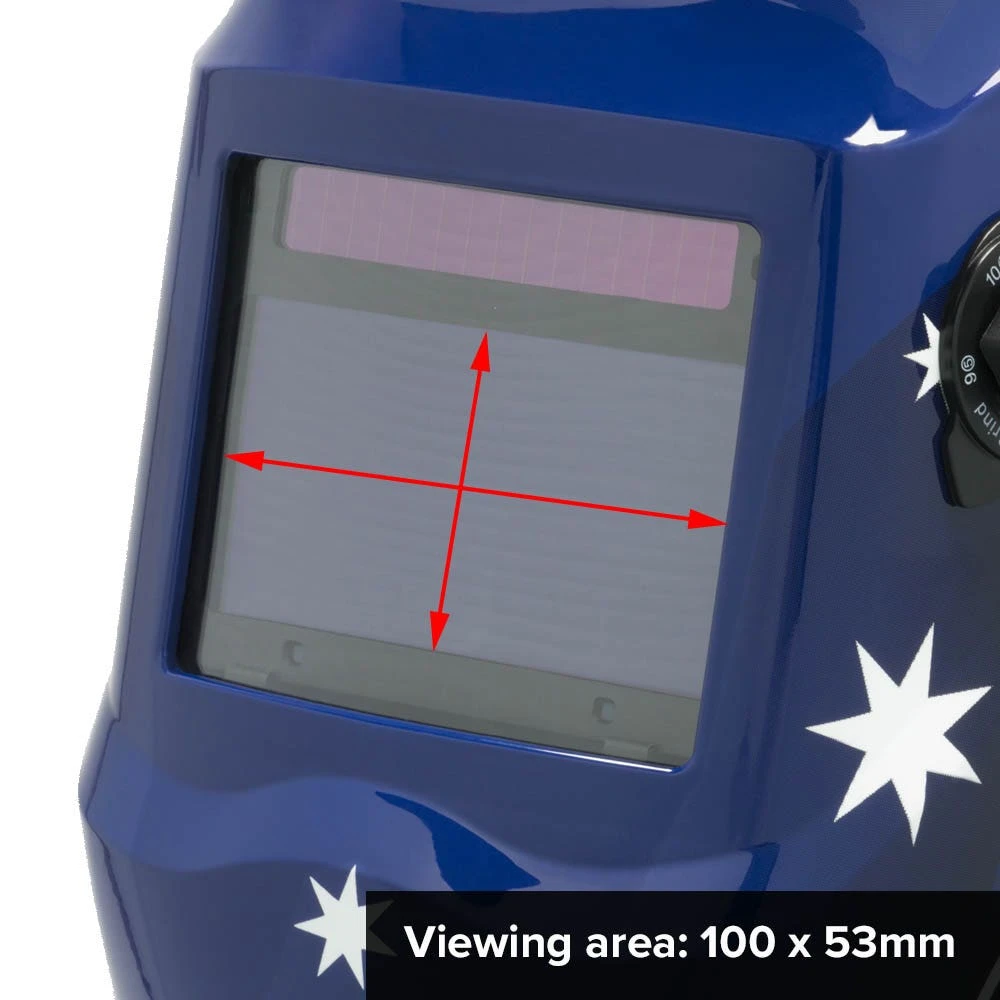

• Viewing Area: 100 x 53mm
• Cartridge Size: 110 x 90 x 10mm
• Light state: DIN 4
• Dark state: DIN 5-8/9-13
• Switch time: 1/30,000 seconds
• Dark to Light: Variable MIN to MAX 0.1-1.0 sec
• Shade Control: External
• Sensitivity Control: Variable LOW to HIGH
• Power on/off:
• Grind Mode turns the ADF off
• Automatic shut off after 10 mins idle
• Power supply: Solar cell and replaceable battery (1 x CR2032)
• UV/IR Protection: DIN 16
• Arc Sensor: 4
• Suitable for TIG: ≥ 5 amp
• Grinding Function: Yes (external control)
• Optical Class: 1/1/1/2
• Operating Temp: -5°C to 55°C
• Storing Temp: -20°C to 70°C
• Welding Processes: MMA, MIG, MAG/CO2, TIG and Plasma Welding. Arc Gouging & Plasma cutting.
• Helmet: AS/NZS 1337.1
• Lens: AS/NZS 1338.1
