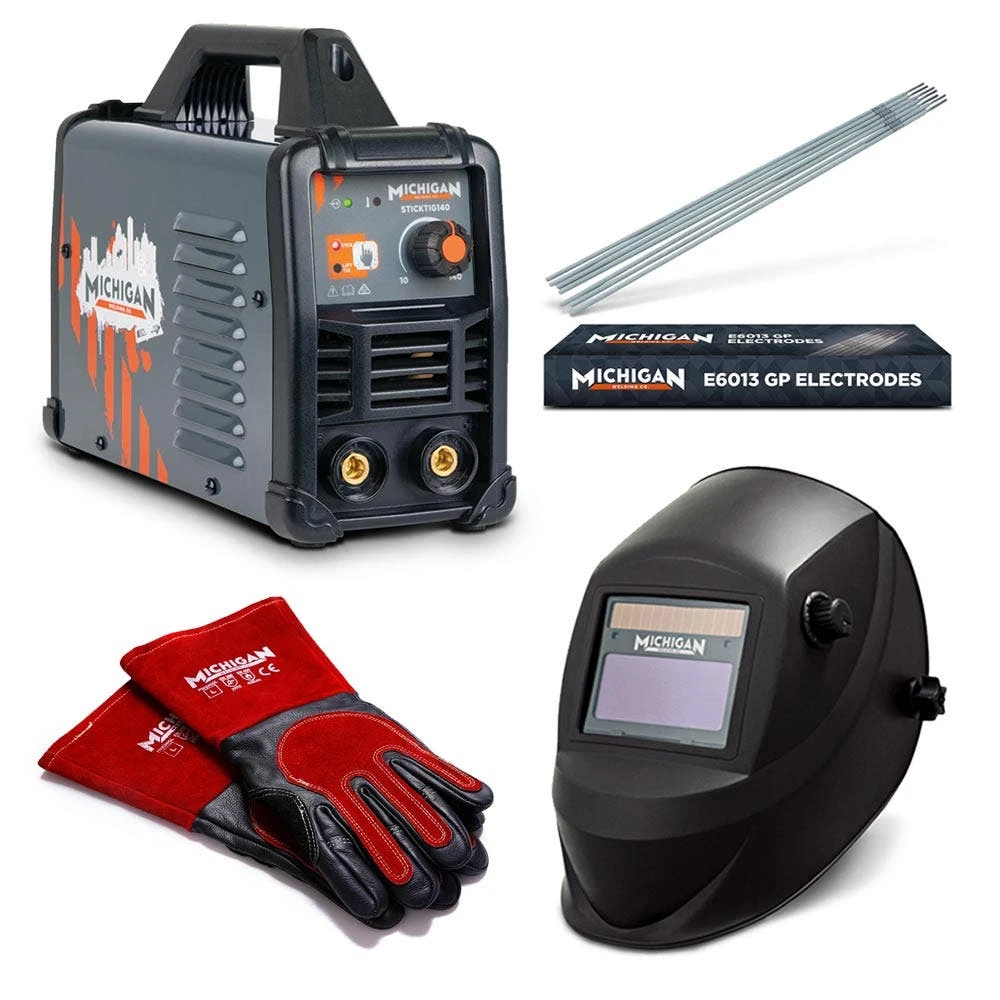

MICHIGAN Sticktig140 Welding Bundle TTKIT803

MICHIGAN 140A Stick DC TIG Welder STICKTIG140

• A compact & portable stick and DC TIG welder suitable for welding general purpose electrodes up to 3.2mm.
• Featuring hot start, arc force & anti stick functions making stick welding easy.
• With the addition of a TIG torch and selection of Lift TIG mode the STICKTIG140 becomes a versatile DC TIG welder.
• Featuring a 10amp plug, the latest IGBT inverter technology and a 3 year class leading warranty.
• Compact and portable STICK (MMA) welder, ideal for DIY projects
• 10-140amp DC STICK (MMA) welder for 2.0-3.2mmØ General Purpose (GP) Electrodes
• 10amp Plug and cable
• DC lift TIG function
• Features hot start, arc force & anti stick functions
• Professional twist-lock electrode holder with 3m lead
• Thermal overload switch prevents damage to internal components
• Fan cooled
• IGBT Inverter technology

Specifications:

• Input voltage: 240V/50Hz (+/- 15%)
• Plug & cable: 10A, 3G1.5mm2 Core (2m length)
• Output amp range: 10-140A
• 10-25 Dinse plug
• Recommended generator size: 6.5kVA
• OCV (Open Circuit Voltage): 92V (STICK), 14V (TIG)
• STICK (MMA) duty cycle at 40°C:15%@140A
• TIG duty cycle at 40°C:20%@140A
• Power source weight: 3.0kg
• IP rating IP21S
• Maximum size GP electrode 3.2mmØ
• Compliant to AS60974.1

MICHIGAN Heavy Duty Leather Welding Gloves MWG

• Premium grade cowhide split leather
• Seamless index finger
• Double layered cowhide palm
• Fleece lining for superior comfort & dexterity
• Kevlar stitched

MICHIGAN True View Variable Shade Auto Darkening Black Welding Helmet – Black MICADH380

If you’re looking for a premium welding helmet with a budget price tag the MICHIGAN range of True View Auto-Darkening welding helmets has you covered. Our latest range of helmets have some impressive features across the range including: variable shade controls, 1/1/1/2 optical clarity rating, magnifying/cheater lens brackets and grind mode. To top it off, all our helmets meet AS/NZS 1337.1-2012 & AS/NZS 1338.1-2012 standards for peace of mind.

• External shade control adjustable dark shade 9-13 and grind mode
• 92 x 42mm viewing area
• True vision clearview lens with 1/1/1/2 Optical class
• Automatic Arc Sensitivity and Delay
• Low amperage TIG ≥10amps (AC/DC)
• Magnification lens bracket
• Hinged filter bracket for quick change covers
• Lightweight helmet and comfortable headgear design
• Meets Australian AS/NZS 1337.1 and AS/NZS 1338.1 standards
• Includes replacement 1 exterior and 1 interior lens covers

Specifications

• Shade DIN: 4/9-13
• Lens Off DIN: 4
• UV/IR Protection DIN: 16
• Filter Optical Class: 1/1/1/2
• Arc Sensors: 2
• Lens Area: 92 x 42mm
• Arc Sensitivity: Automatic
• Delay adjustment (dark to light): Automatic 0.1-0.5sec
• Switching time (light to dark): 1/30,000 sec
• Power Source: Solar and battery
• Helmet Weight: 420g
• Helmet Standard: AS/NZS 1337.1
• Filter Standard: AS/NZS 1338.1

MICHIGAN 2.5mm E6013 Electrode ME60132525

• 2.5mm diameter
• Suitable for all positional welding, including vertical down
• Classification: AWSE6013, AS/NZS4855 B E4313A
• Approvals CE:ISO2560-A 35 O R, American Bureau of Shipping Grade 2, Lloyds Register Grade 2
• Yield Stress 420 MPa
• Tensile Strength 490 MPa
• Elongation 24%
• CVN Impact Value 70 J av @ 0?C
• Smooth welding action
• Length – 300mm
• Current Range 60-100amps
