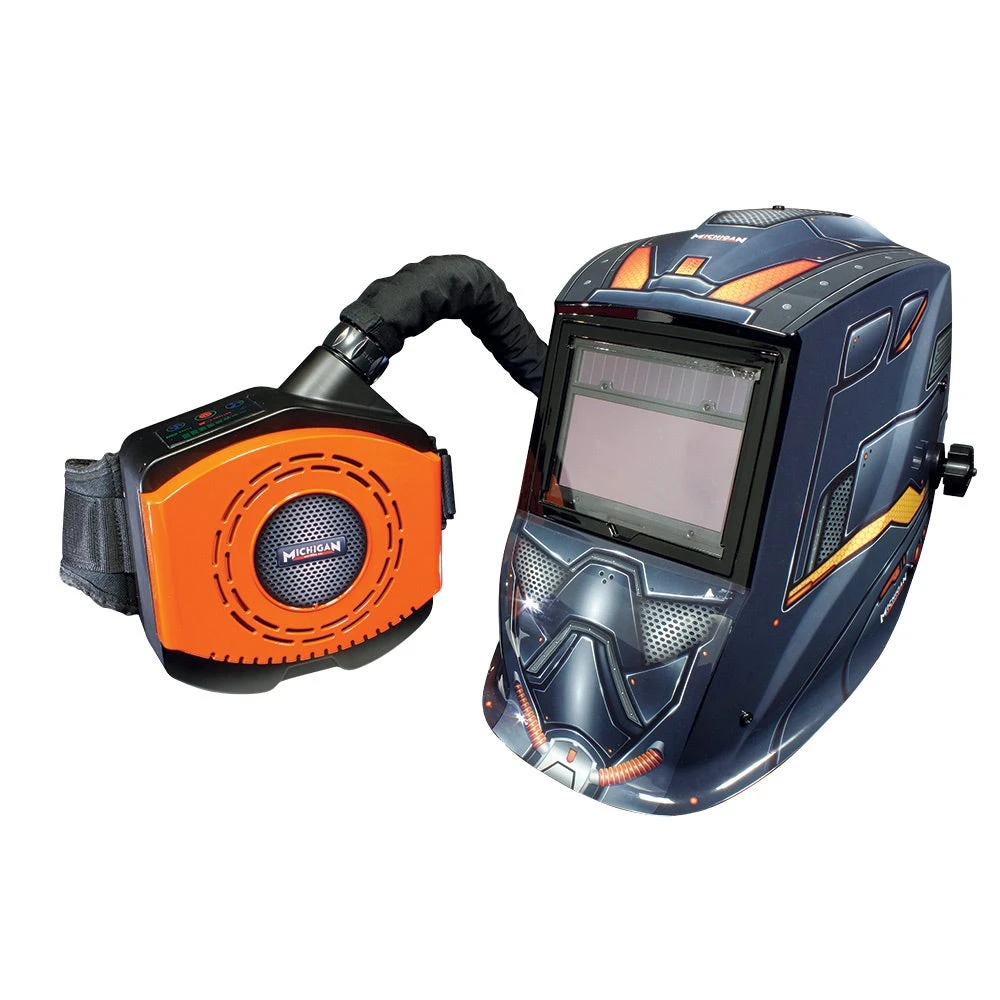

MICHIGAN PAPR Auto Darkening Welding Helmet MPAPR200

• PAPR approved to AS/NZS 1716:2012 P2, provides protection against harmful welding fumes

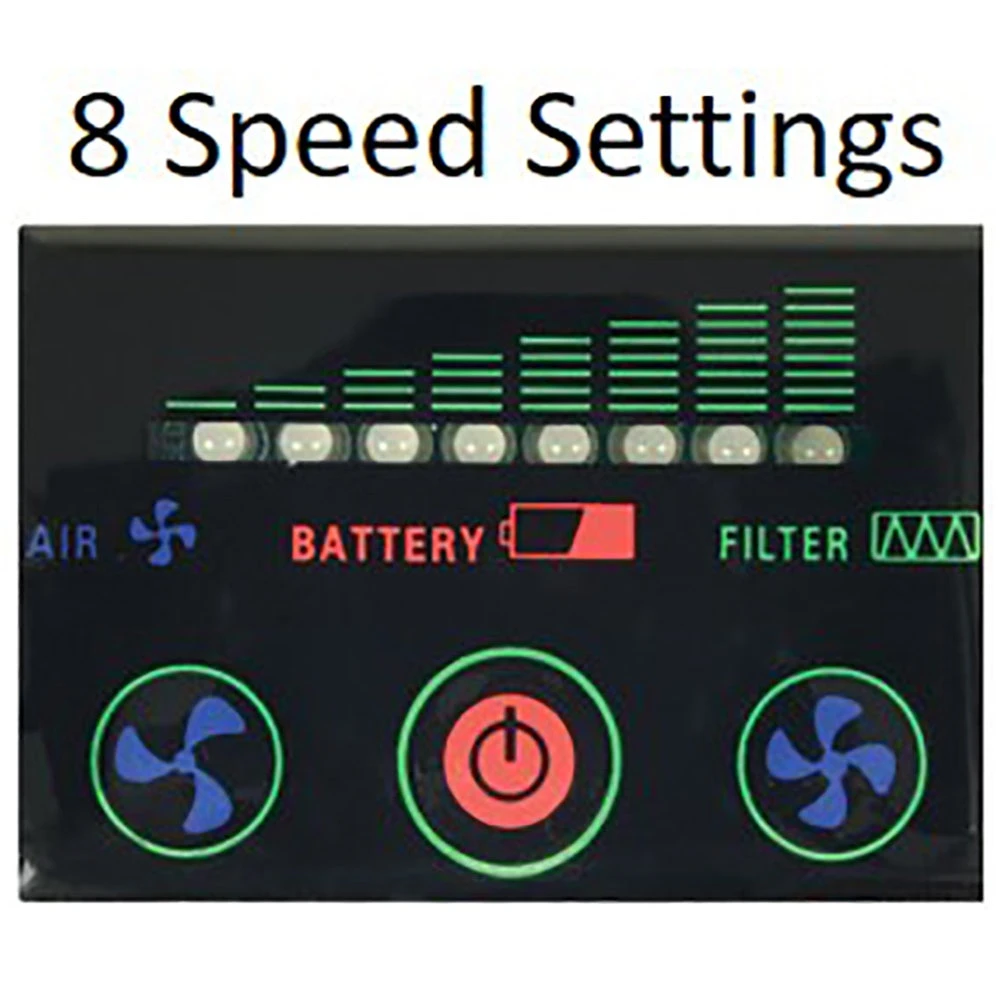

• Ergonomically designed 8 speed air pump (1.3kg) with rechargeable 5.2Ah Li-Ion battery runs up to 8hrs
• Quiet operation (66dB) with audio, visual and vibration low battery alarms
• True vision lens with 1/1/1/2 optical class provides clarity of the weld puddle and process
• Welding helmet approved to AS/NZS 1337.1, fitted with 100x50mm auto darkening lens, approved to AS/NZS 1338.1
• 4 arc sensors and 5-13 DIN adjustable shade

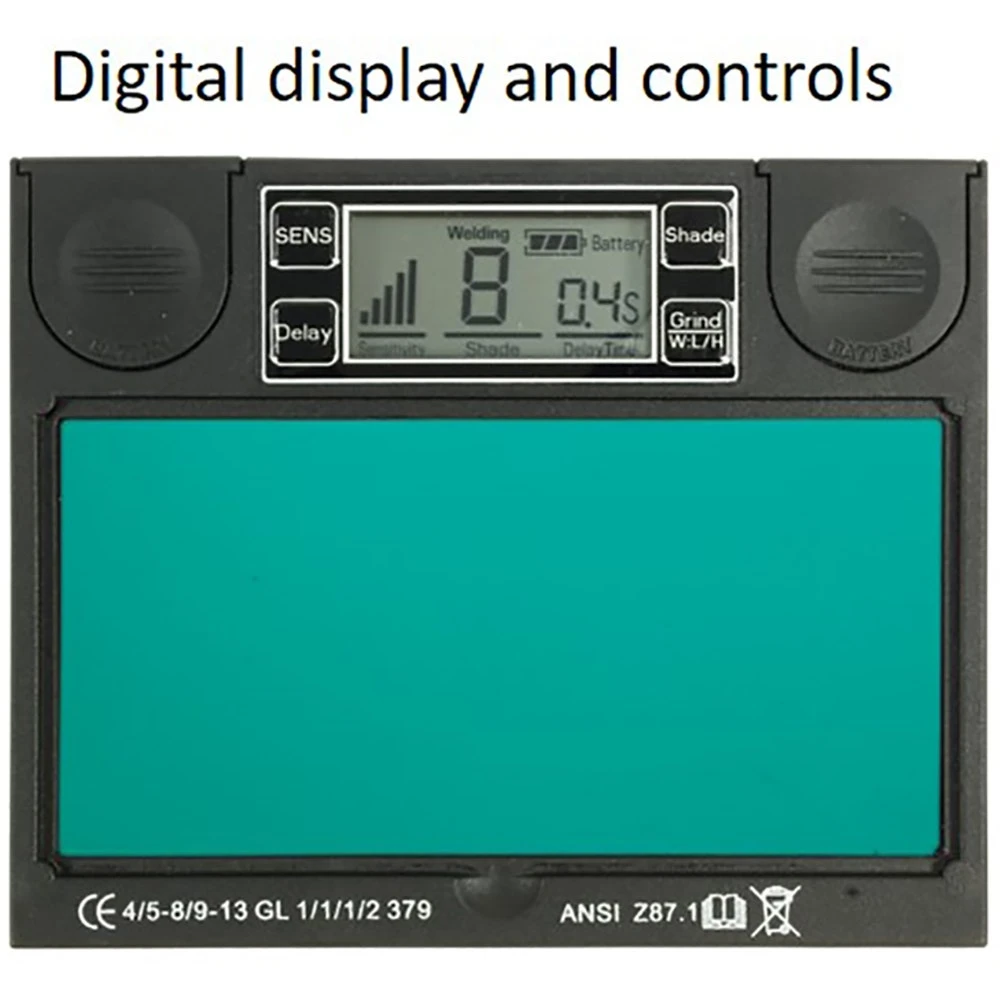

• Digital display with adjustable sensitivity, adjustable delay and grind function

Helmet Specifications:

• Lens Switching Speed (Sec): 0.07ms
• Variable Shade DIN (int/ext control): 5-8/9-13 (internal adjustment)
• Grind Mode Shade: 4 (internal)
• Light Sensitivity (Int/Ext Control): Continuous (internal)
• Delay Control Dark To Light (Sec): 0.1-1.9
• ARC Sensors: 4
• TIG AMP Rating: DC > 5 Amp, AC > 5 Amp
• Cartridge Size: 110 mm x 90 mm
• View Size: 100 mm x 50 mm
• Optical Class: 1/1/1/2
• Optical Colour: True view (blue)
• Test Button: Yes
• Helmet Standard: AS/NZS 1337.1
• ADF Standard: AS/NZS 1338.1
• Temperature Range Operating: -5°C – +55°C
• Temperature Range Storage: 0°C – +40°C
• Magnifying “Cheater” Capable Lens:
• Battery Replacement Type: CR2032 2EA,Replaceable
• Head Gear Adjustment knob : YES
• Head Gear angle settings: 5
• Head Gear Depth Settings: 3
• Sweatband Material: Terry/Foam

Respirator Specifications:

• Air Flow / Controls: 170 to 240 L/min with automatic/electronic airflow control to ensure constant flow rate regardless of filter clogging or battery charge level
• Warning / Alarms: Visual, audible & vibration – when flow rate is below minimum 170L/min &/or when filter requires replacement &/or when battery requires charging
• Battery Type: Replaceable & re-chargeable Li-ion 7.4V/5200mAh
• Operating Time:
  • On minimum flow rate (170L/min): 8-10 hours*
  • On maximum flow rate (240L/min): 6-8 hours*
• Charging Time: 4-6 hours
• Partial Charging: Suitable for partial charging (will not affect battery charge memory). Approx 1 hour charge = 4 hours run time
• Approx 2 hour charge = 8 hours run time
• Charging Cycles: >350
• Filter Type: Particle P R SL
• Protection Class: Class TH2P R SL
• Filter Life: Will vary depending on many factors, including how much fume is generated in the working environment within a given time. Dual filter design & powerful motor ex-tends filter life. Pre-filters should always be used and will extend filter life.
• Noise Level: 65dba
• Weight: weight with filter 920g
• Belt size: 127cm circumference
• Standards Compliance: AS1716 – Tested by SAI GLOBAL
• Recommended Temperature: Operating-5°C – +55°C / Storage 0°C – +40°C
• Recommended Humidity: Operating & Storage: >75% RH
• Materials: Material/Plastics: PA, ABS, PU, PC, PES / Electronics: PC Board / Battery: Li-Ion

*With a new filter and fully charged battery in a clean environment
*With a new filter and fully charged battery in a clean environment, at 170L/min

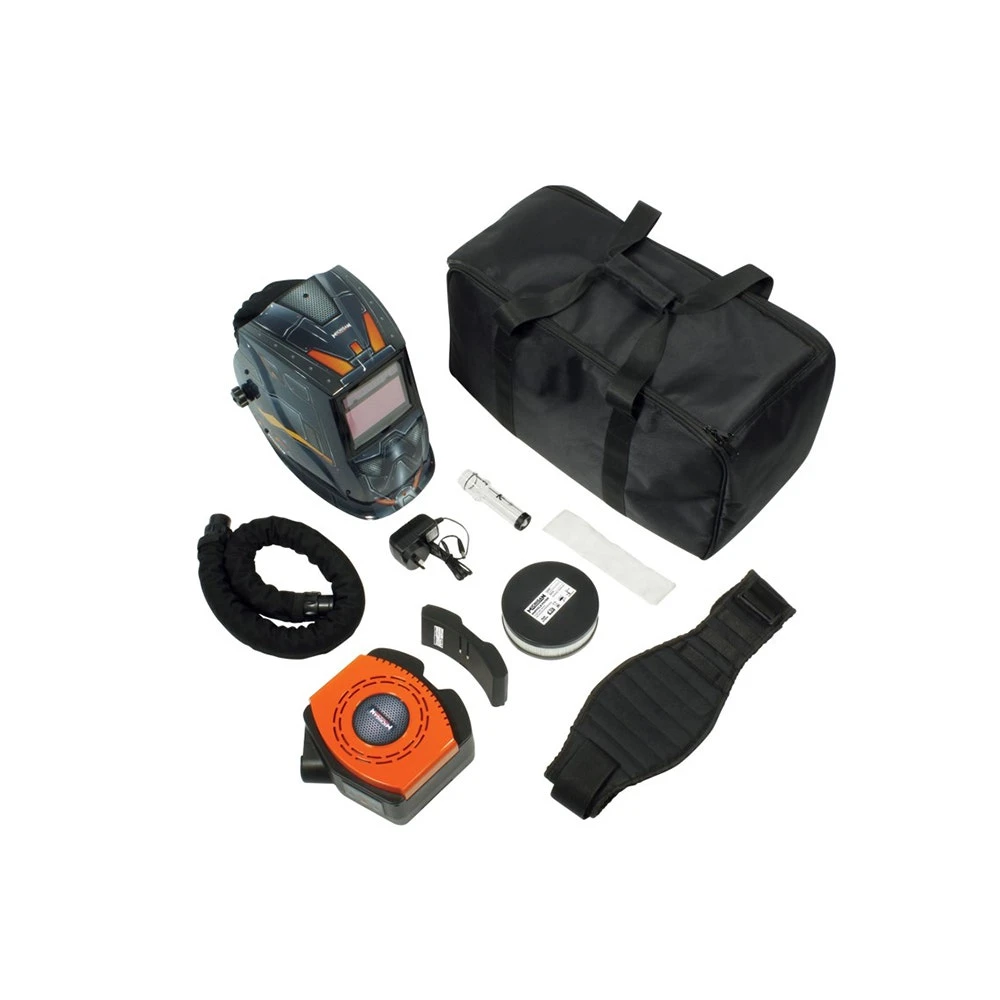

Includes:

• Air pump unit
• Li-Ion battery
• Charging unit
• Waist belt
• Hose
• Flowmeter
• Filter & pre-filter
• Helmet & lens
• Face seal
• Carry bag
