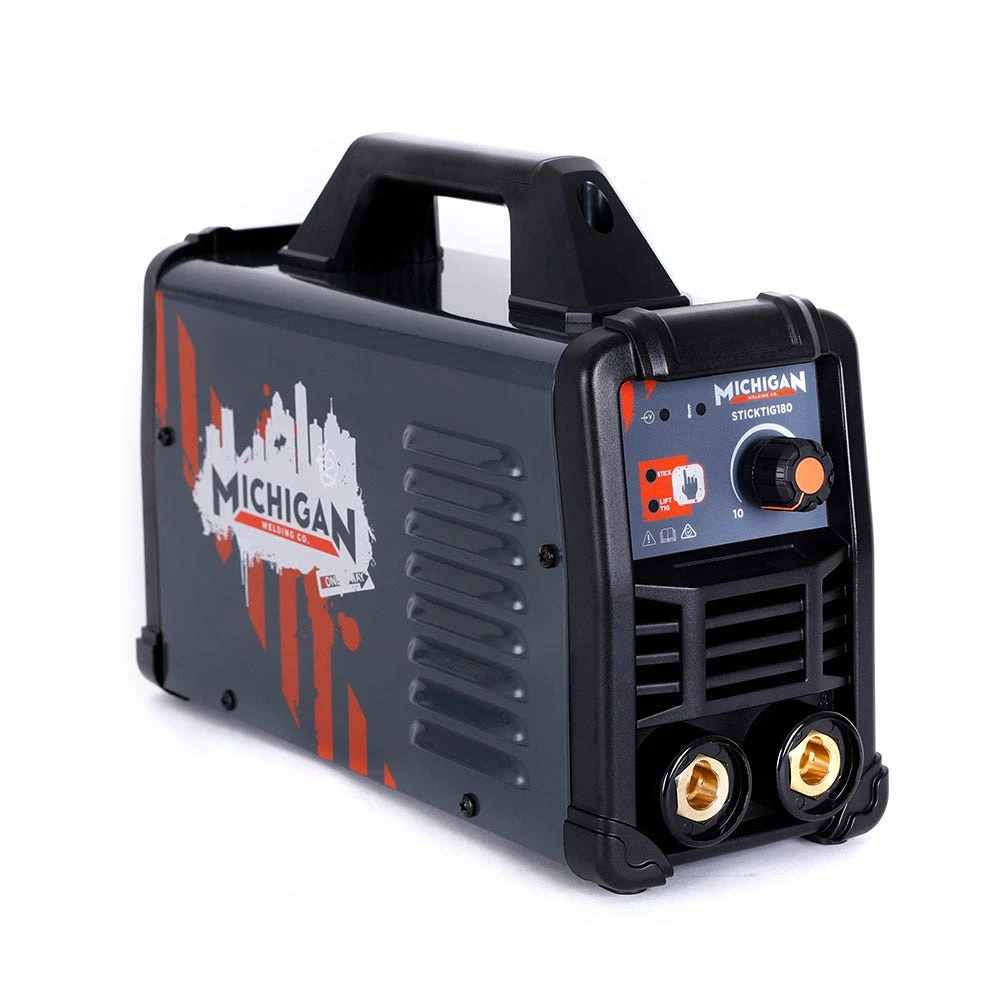

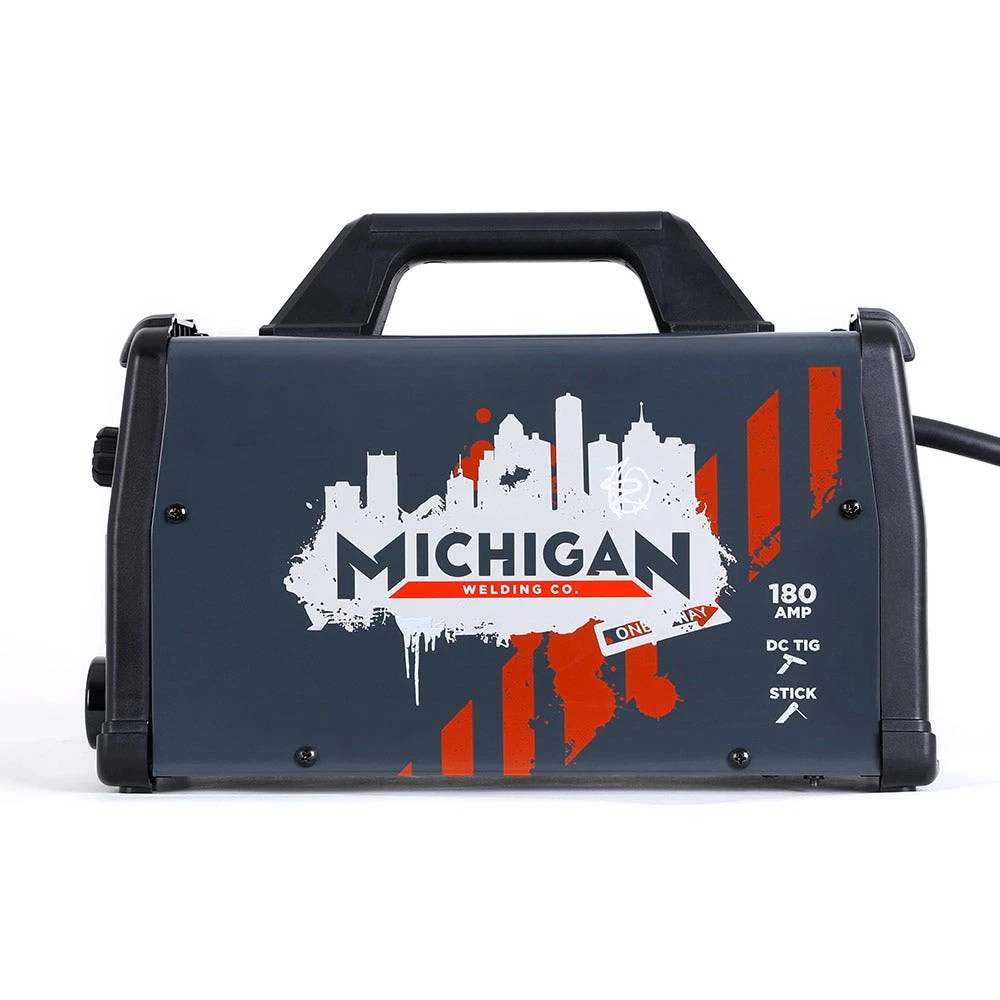

MICHIGAN 180A Stick DC TIG Welder STICKTIG180

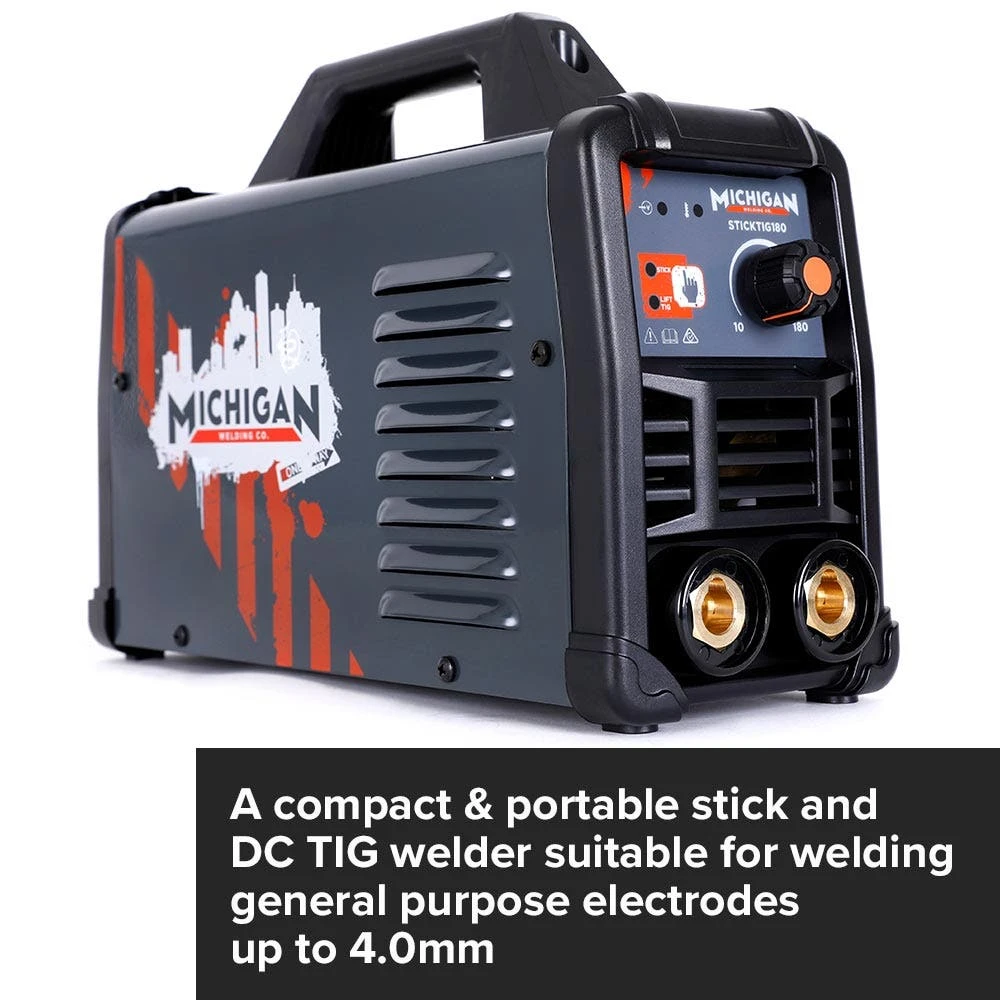

• A compact & portable stick and DC TIG welder suitable for welding general purpose electrodes up to 4.0mm.

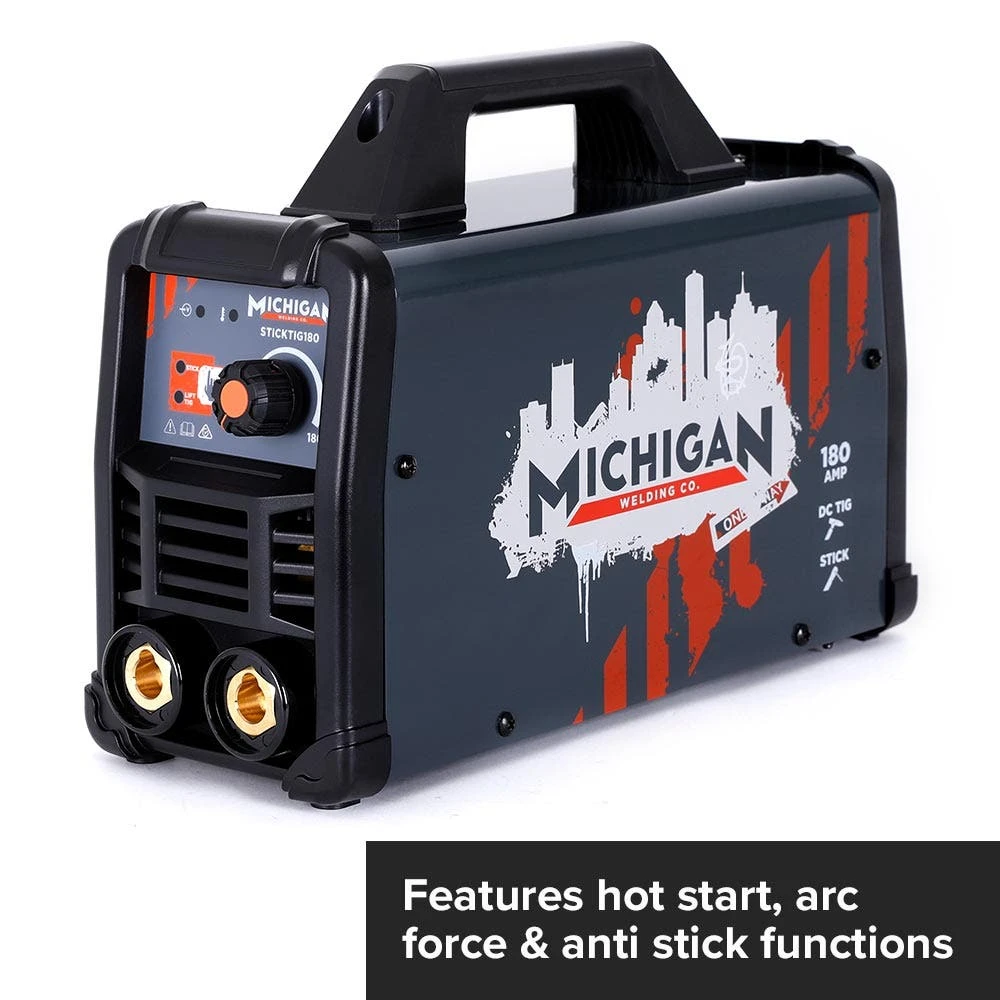

• Featuring hot start, arc force & anti stick functions making stick welding easy.

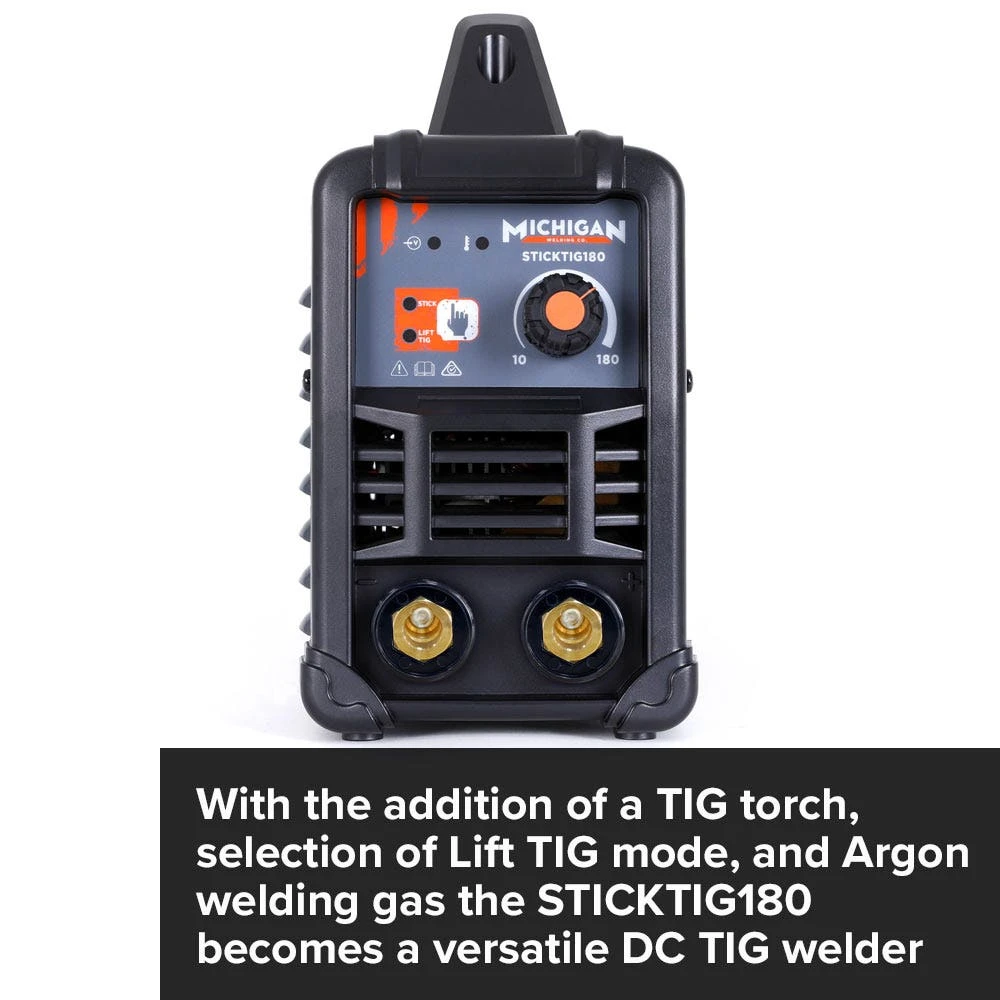

• With the addition of a TIG torch and selection of Lift TIG mode the STICKTIG180 becomes a versatile DC TIG welder.

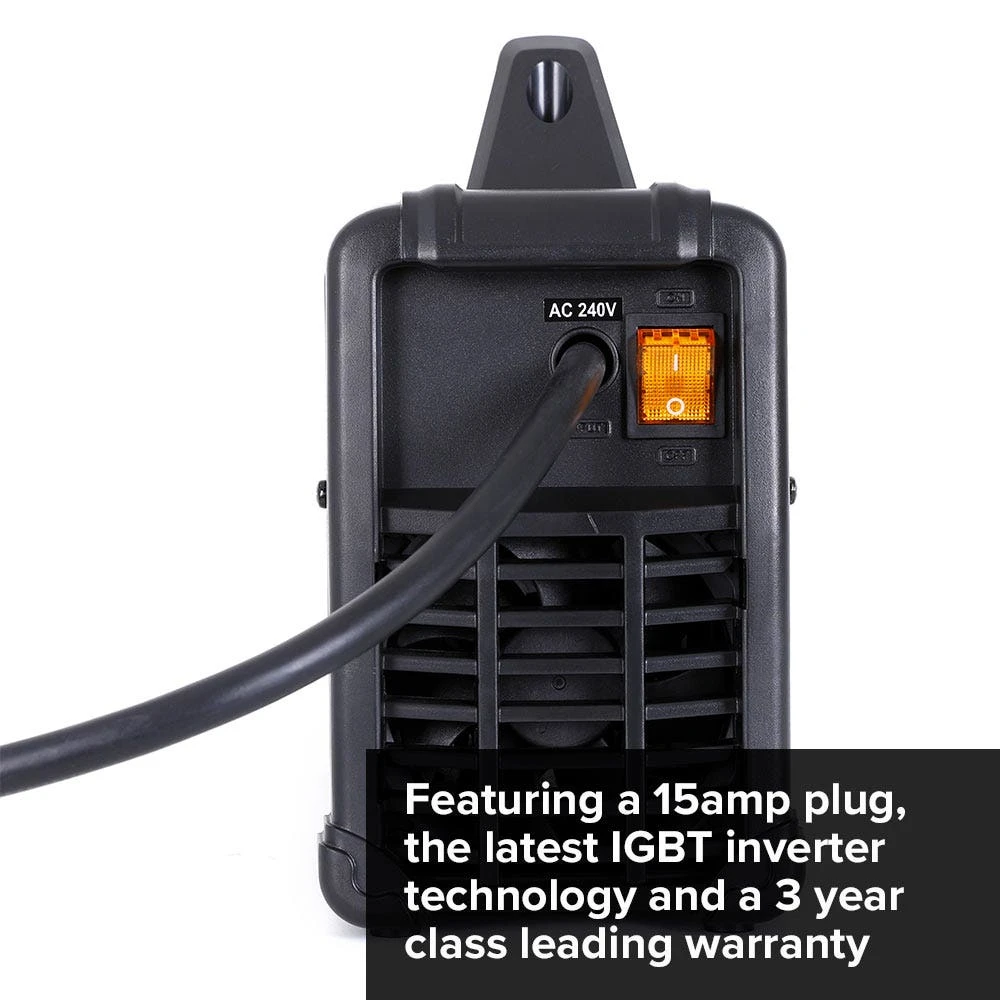

• Featuring a 15amp plug, the latest IGBT inverter technology and a 3 year class leading warranty.
• Compact and portable STICK (MMA) welder, ideal for DIY projects
• 10-180amp DC STICK (MMA) welder for 2.0-4.0mmØ General Purpose (GP) Electrodes
• 15amp Plug and cable
• DC lift TIG function
• Features hot start, arc force & anti stick functions

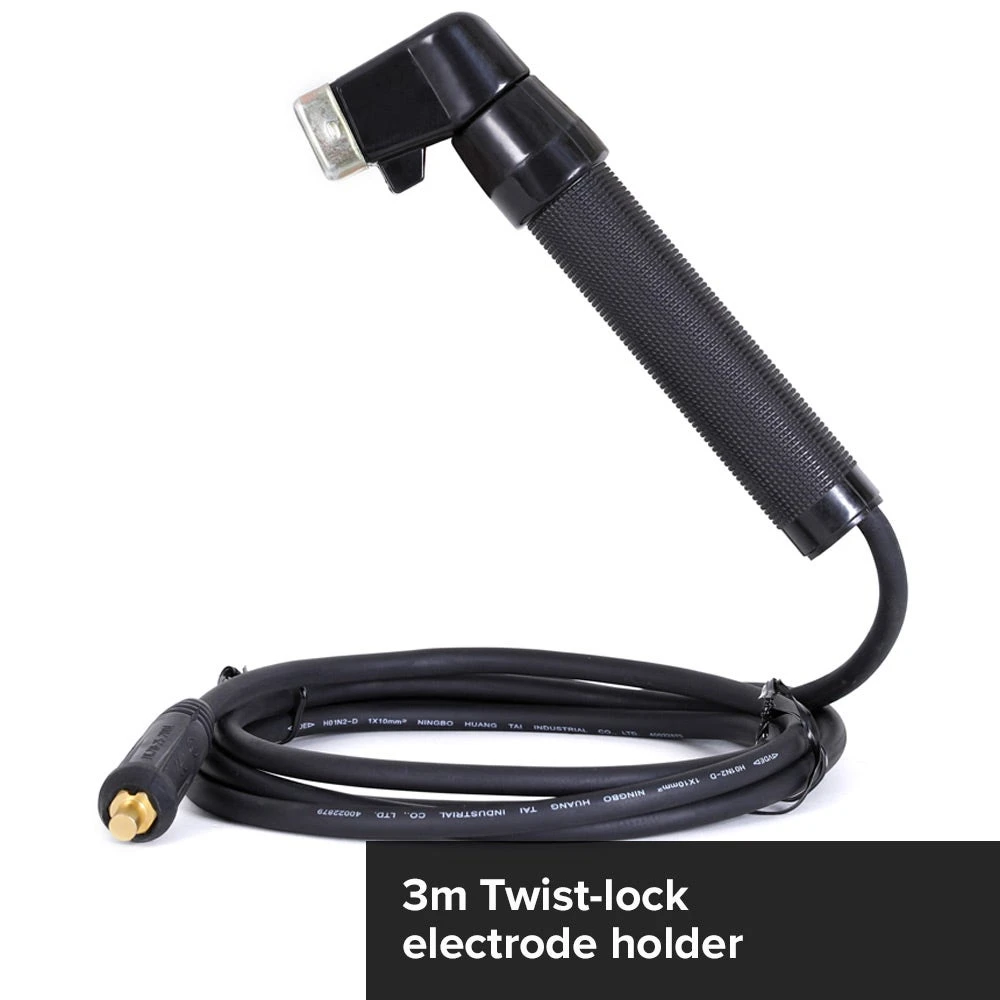

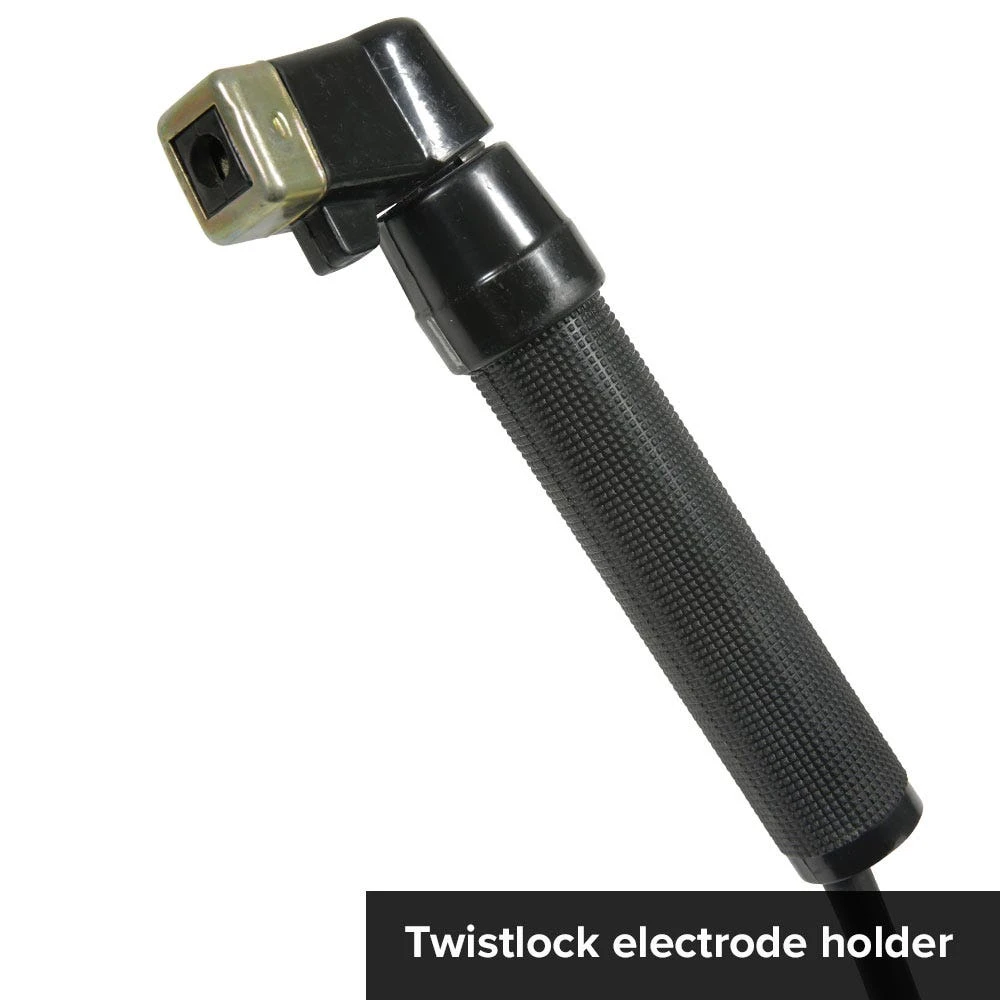

• Professional twist-lock electrode holder with 3m lead
• Thermal overload switch prevents damage to internal components
• Fan cooled
• IGBT Inverter technology

Specifications:

• Input voltage: 240V/50Hz (+/- 15%)
• I1e (input eective amps): 14.2A (STICK), 9.9A (TIG)
• Plug & cable: 15A, 3G2.5mm2 Core (2m length)
• I1max (max eective amps): 31.7A (STICK), 22.1A (TIG)
• Output amp range: 10-180A
• 30-50 Dinse plug
• Recommended generator size: 8kVA
• OCV (Open Circuit Voltage): 92V (STICK), 14V (TIG)
• STICK (MMA) duty cycle at 20%@180A
• TIG duty cycle at 20%@180A
• Power source weight: 4.0kg
• IP rating IP21S
• Maximum size GP electrode 4.0mmØ
• Compliant to AS60974.1

Includes:

• 180A STICK DC TIG Welder

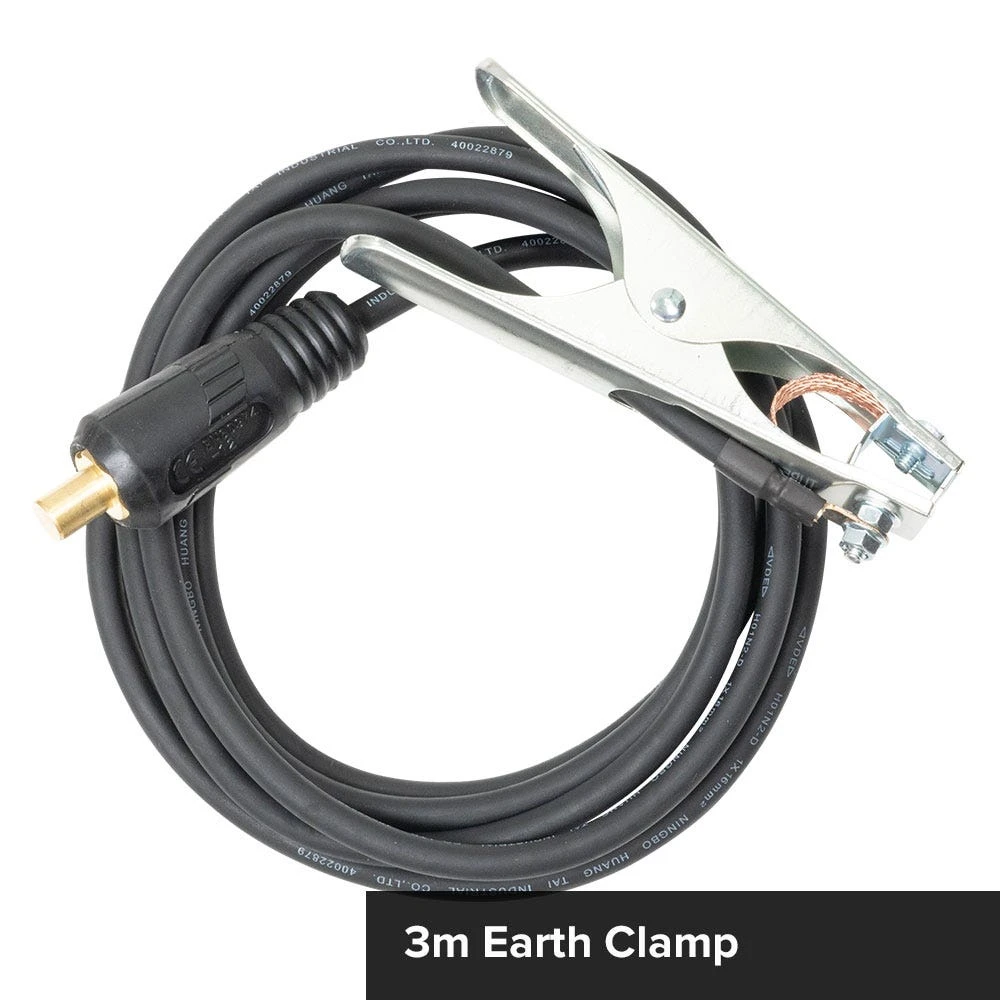

• 3m Earth clamp
• 3m Twist-lock electrode holder
• Operating manual
