MICHIGAN 180A Multi Process Welder MULTI180LCD

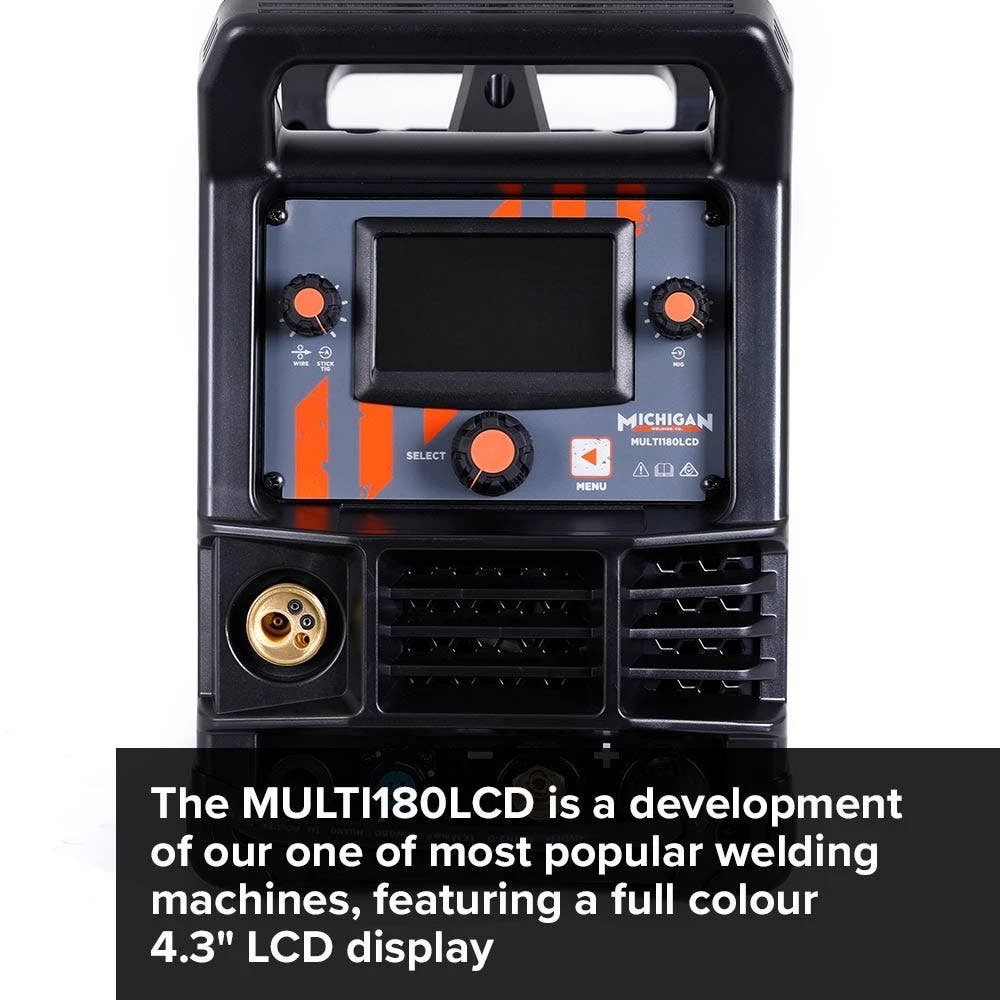

• The MULTI180LCD is a development of our one of most popular welding machines, featuring a full colour 4.3″ LCD display.

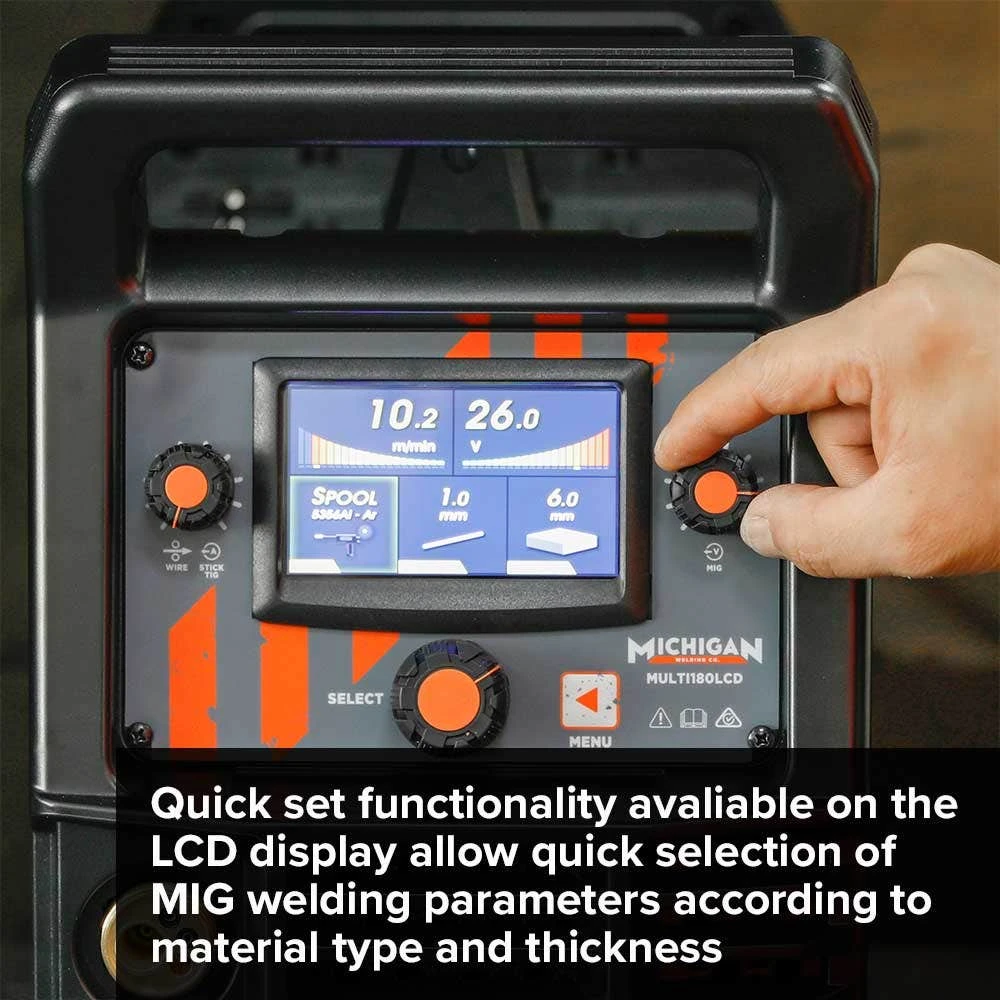

• Quick set functionality avaliable on the LCD display allow quick selection of MIG welding parameters according to material type and thickness.

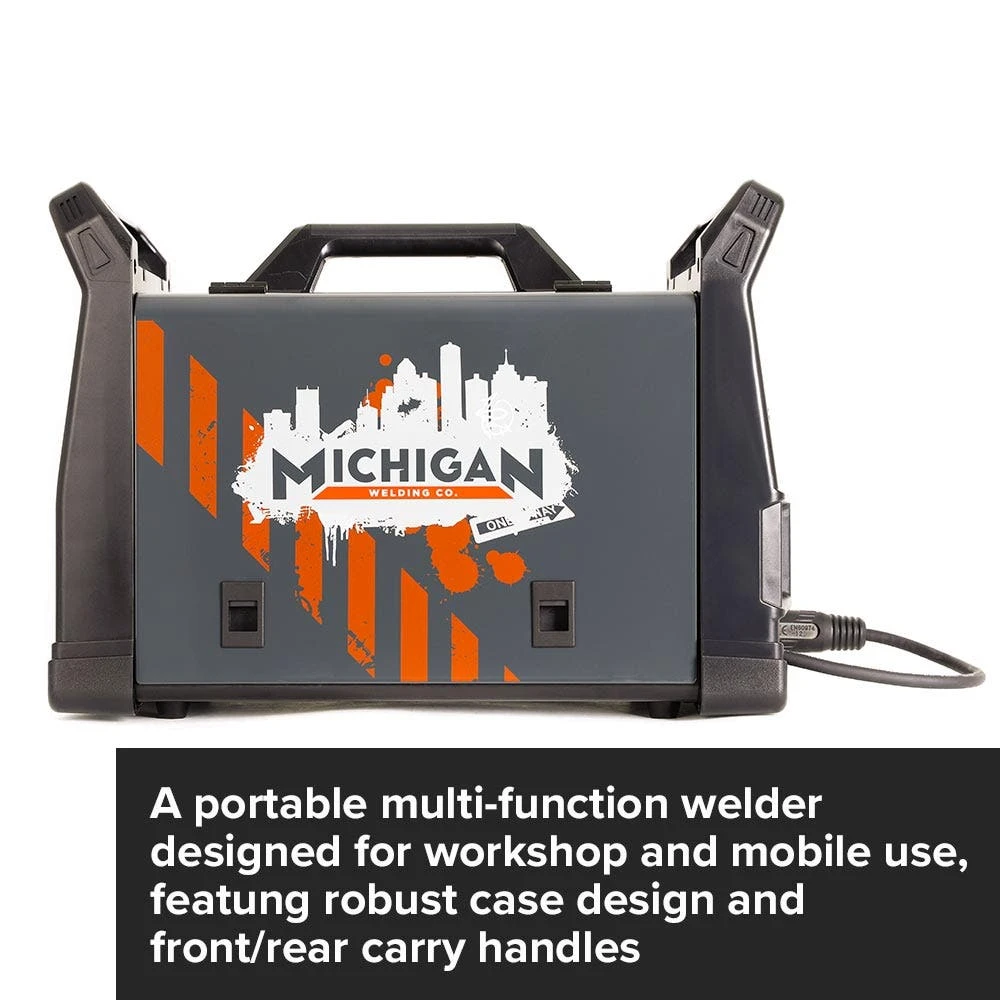

• A portable multi-function welder designed for workshop and mobile use, featung robust case design and front/rear carry handles.
• Capable of welding MIG, STICK (MMA) and DC TIG, from 30 to 180 amps(MIG), the MULTI180LCD is the perfect all round welding machine for everyday use.
• Featuring a 10amp Plug and compatibility with 1kg and 5kg wire spools.

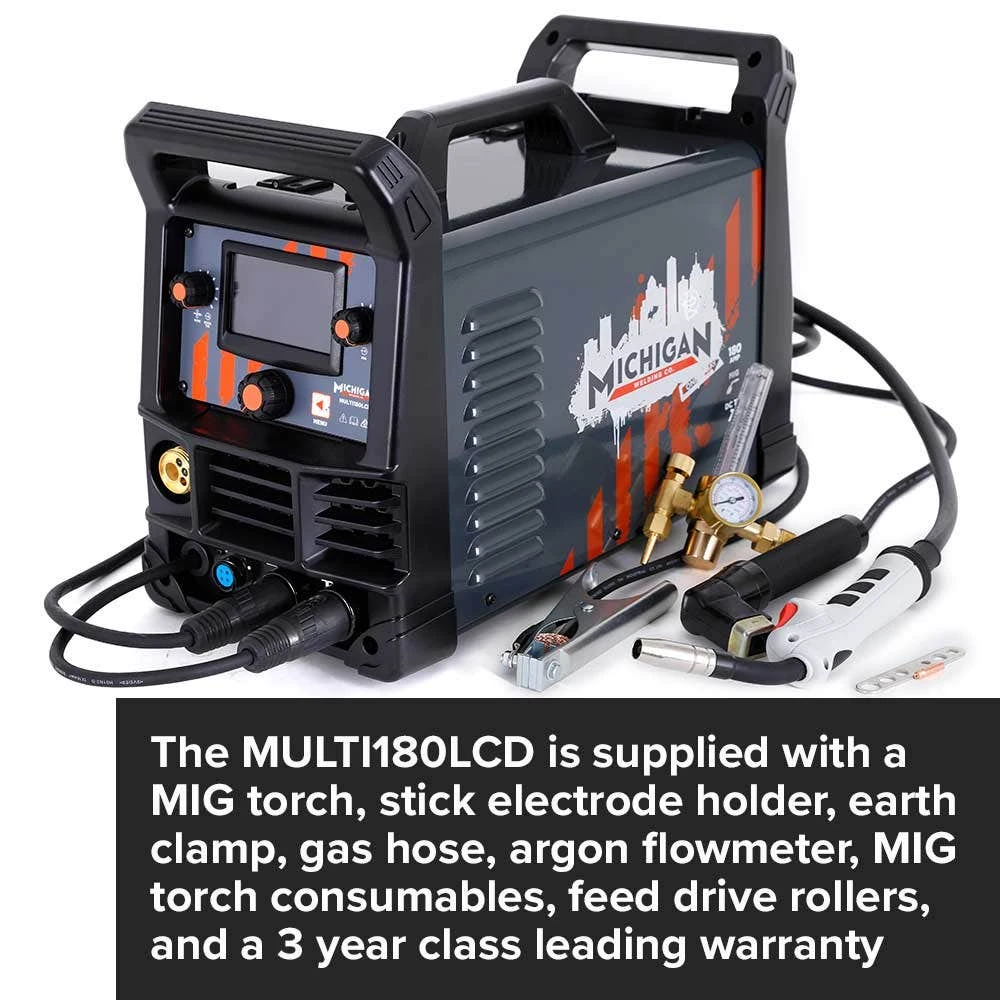

• The MULTI180LCD is supplied with a MIG torch, stick electrode holder, earth clamp, gas hose, argon flowmeter, MIG torch consumables, feed drive rollers, and a 3 year class leading warranty.
• Stepless voltage and wire feed control
• Synergic Auto Set function for MIG welding
• 4.3″ Colour LCD display
• 2 Touch (2T) and 4 Touch (4T) MIG trigger function
• Spool gun capable
• Adjustable wire speed run in time, burn back, spot time and inductance in MIG mode
• VRD – Voltage Reduction Device in STICK (MMA) mode
• Suits 1kg and 5kg wire spools

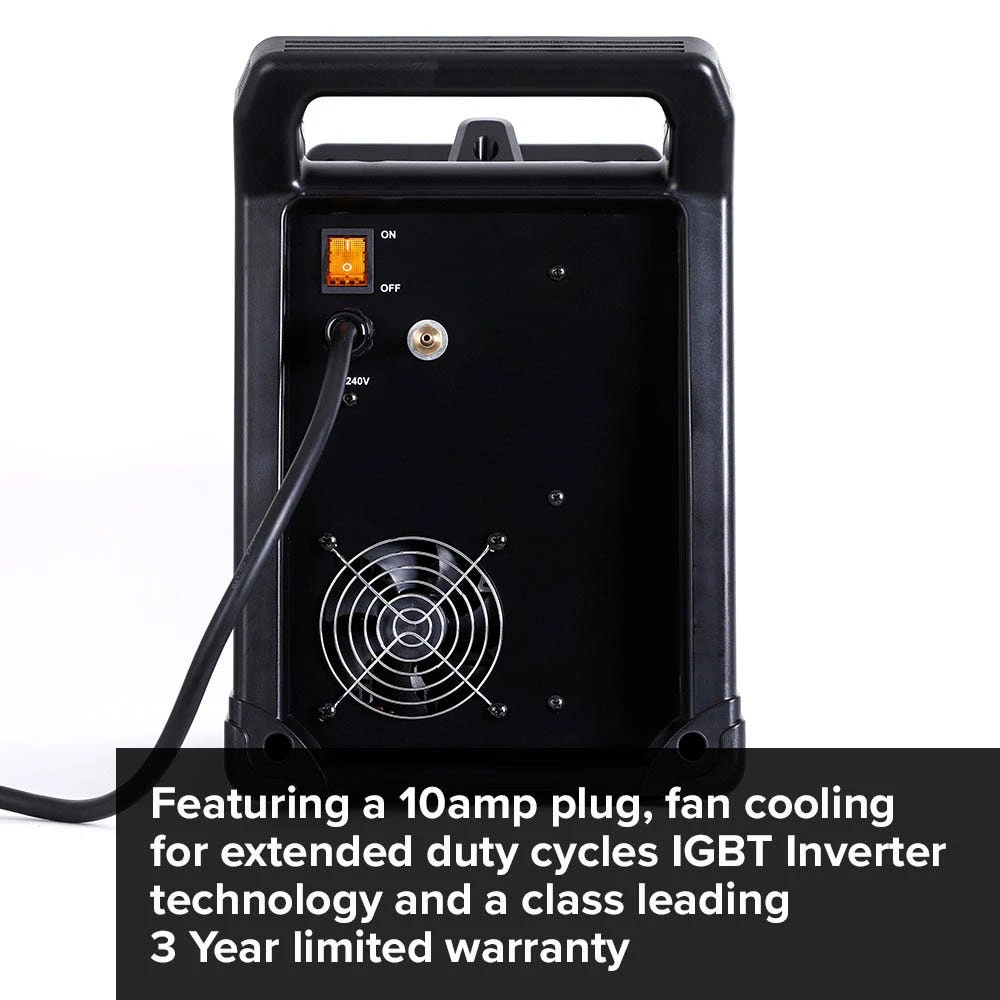

• Fan cooled for extended duty cycles
• IGBT Inverter technology

Specifications

• Voltage Hertz: 240V50hz (+/- 15%)
• Plug & cable: 10A, 3G2.5mm2 Core (2m length)
• MIG function output amp range: 30-180A
• MIG duty cycle at 40°C -10% @ 180A
• STICK (MMA) function output range 10-160A
• STICK (MMA) duty cycle at 40°C -10% @ 160A
• TIG function output 10-160A
• TIG duty cycle at 40°C -20%@ 160A
• Power Source Weight 12.9kg
• Recommended generator size -12Kva
• Suits 0.6 – 1.0mmØ solid MIG wire
• Suits 0.8-1.0mm flux core wire
• Maximum size GP electrode 3.2mmØ
• IP Rating IP21S
• Compliant to AS60974.1

Includes

• 180A Multi Process Welder

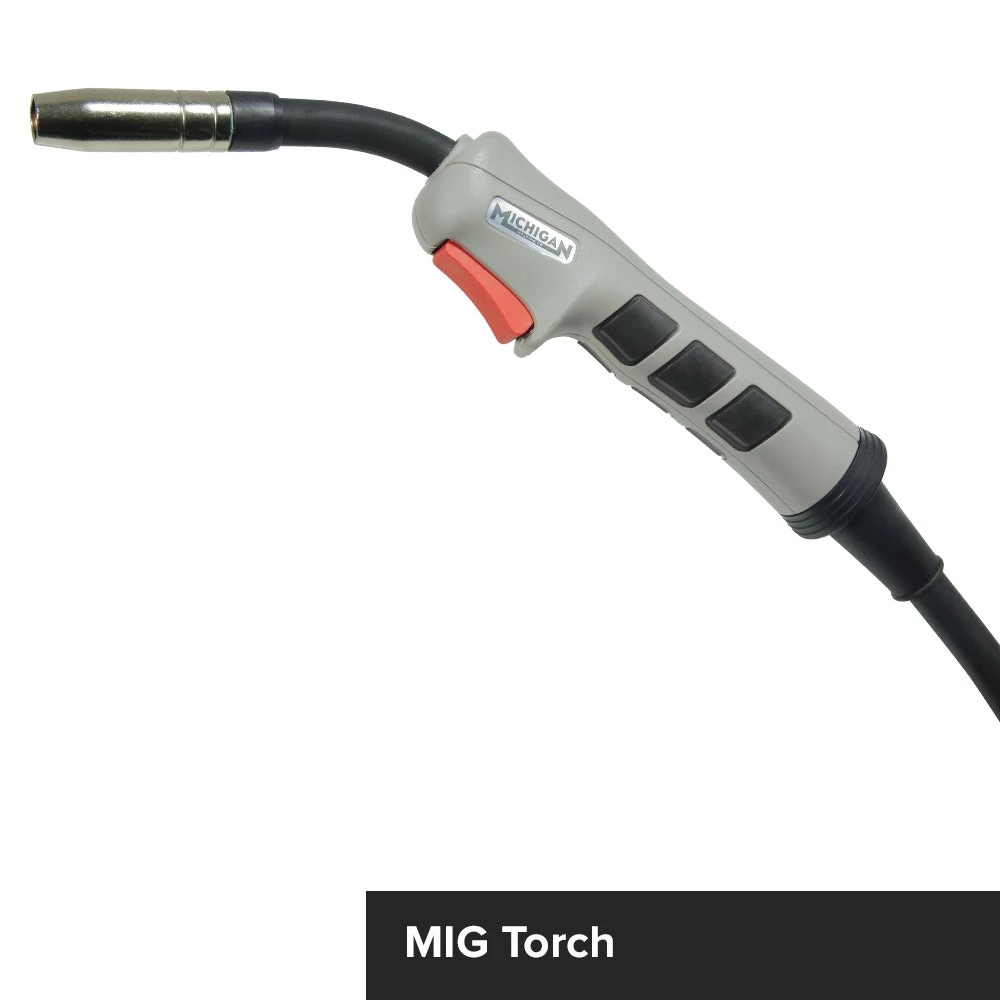

• 3m MIG Torch with Euro Connector

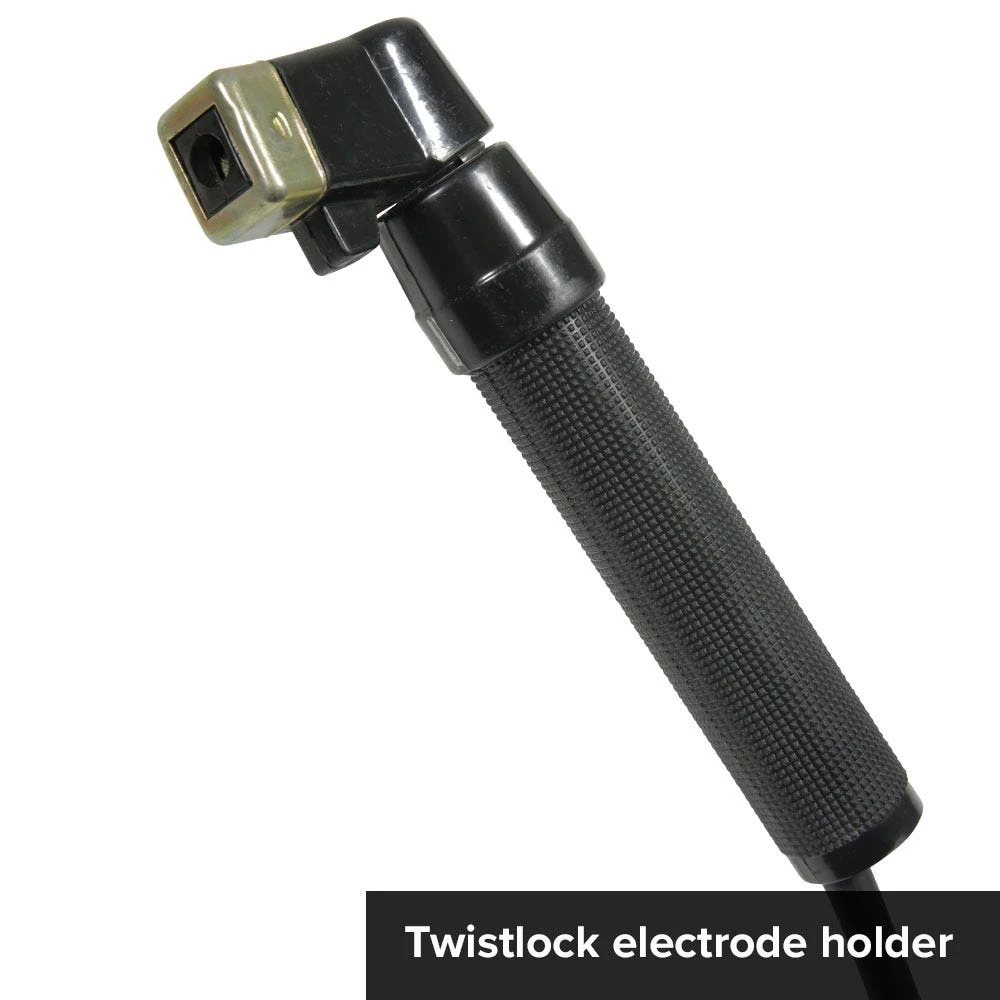

• 3m Twist-lock electrode holder

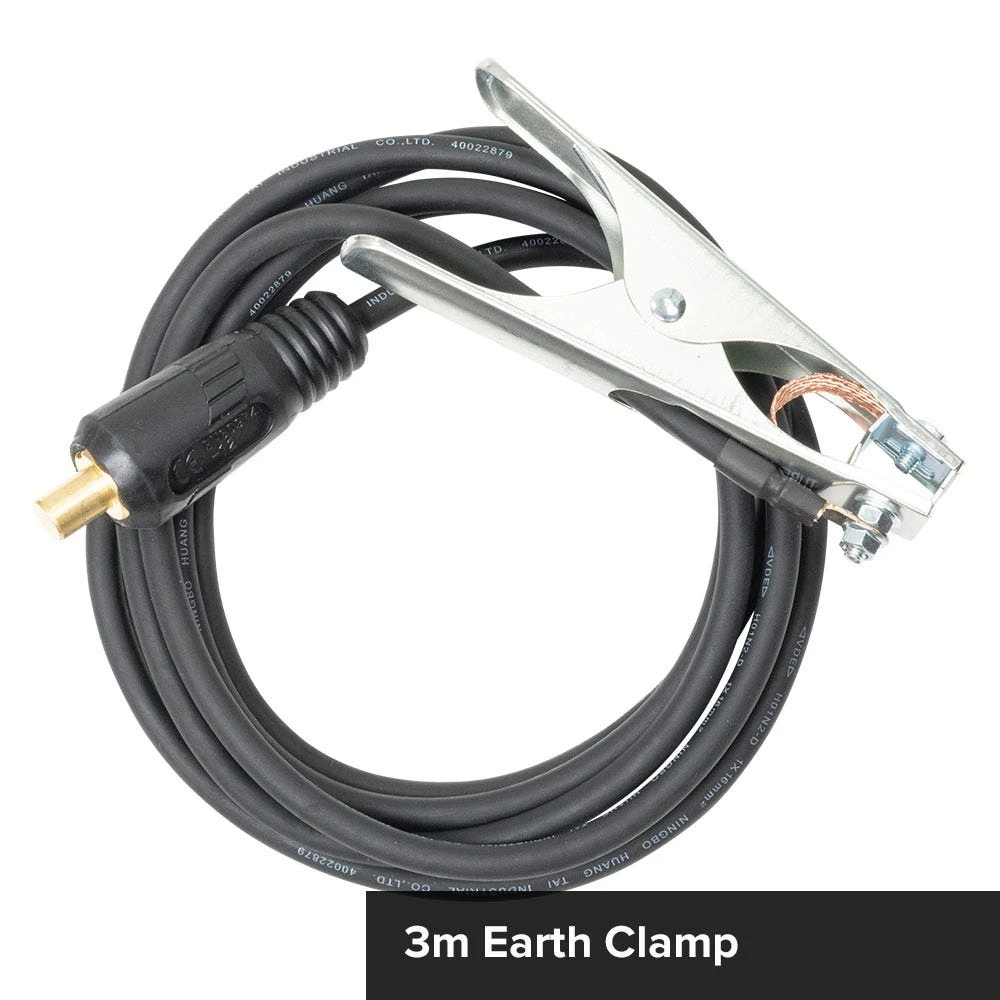

• 3m Earth clamp

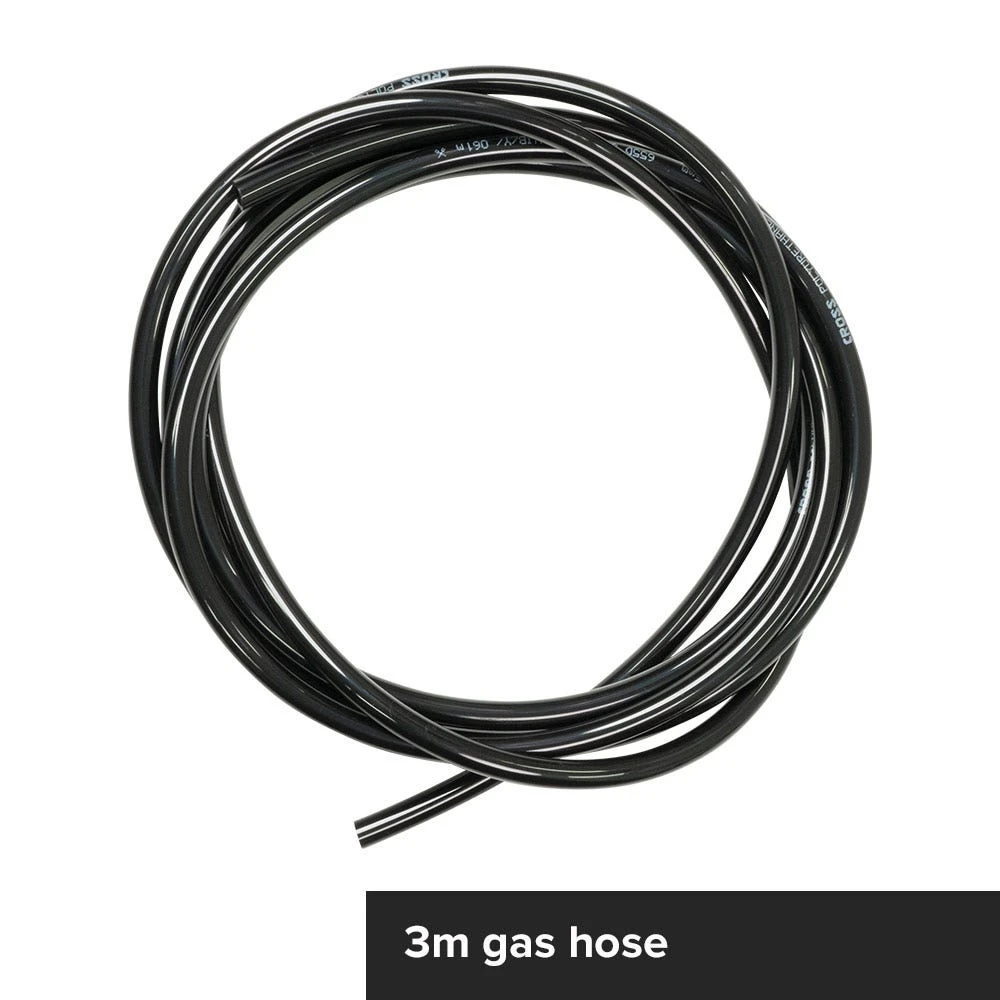

• 3m Gas hose

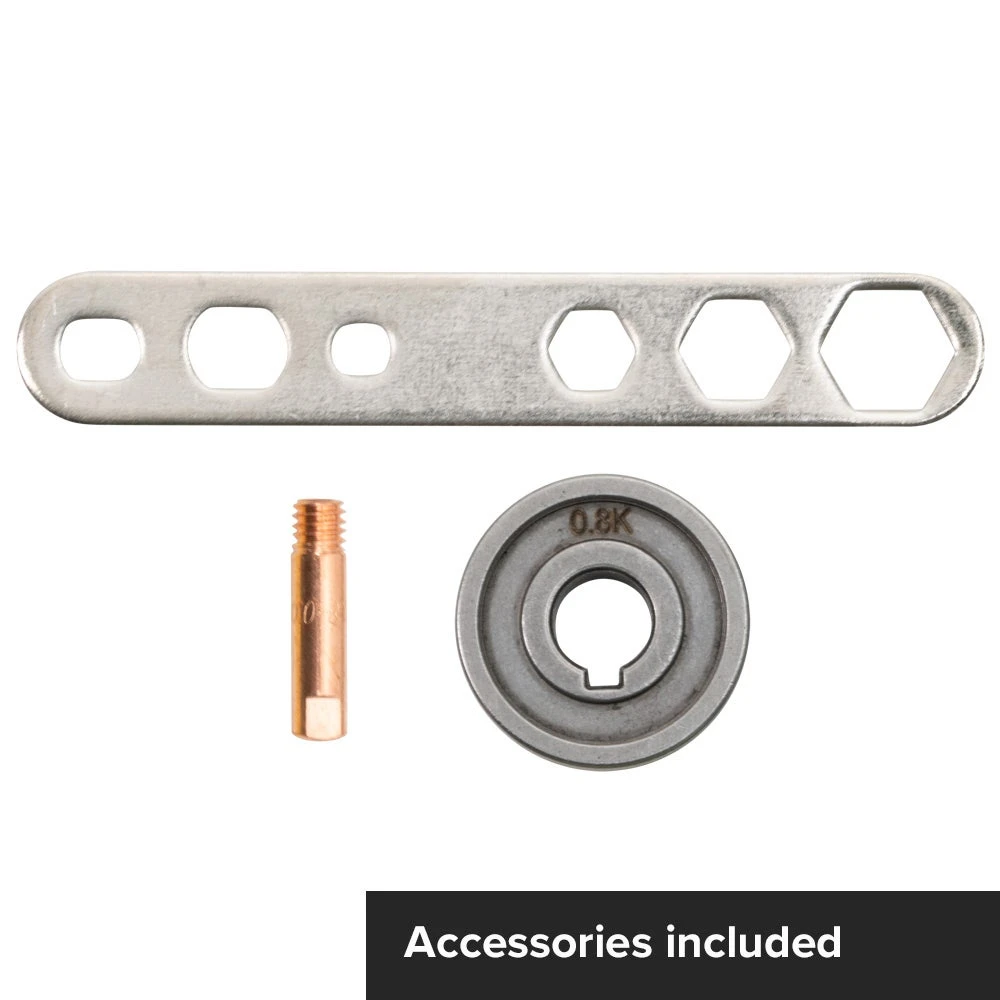

• Contact tips 0.8, 0.9 (installed)
• Gas Shroud (Installed)
• V Roller 0.8-0.9mm (Solid) (installed)
• Knurled Roller 0.8-0.9mm (Gasless)
• Large dinse 35-50
• 10amp Plug & cable

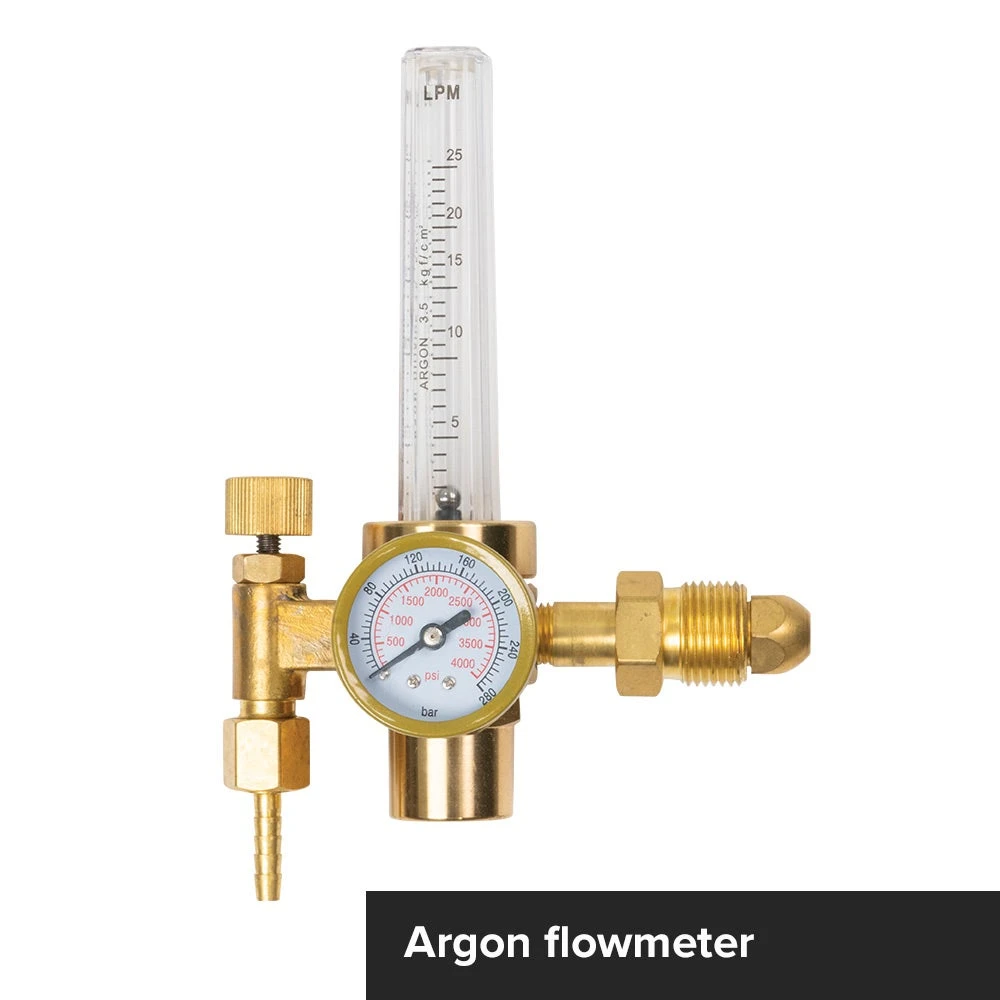

• Argon flowmeter
• Operating manual
