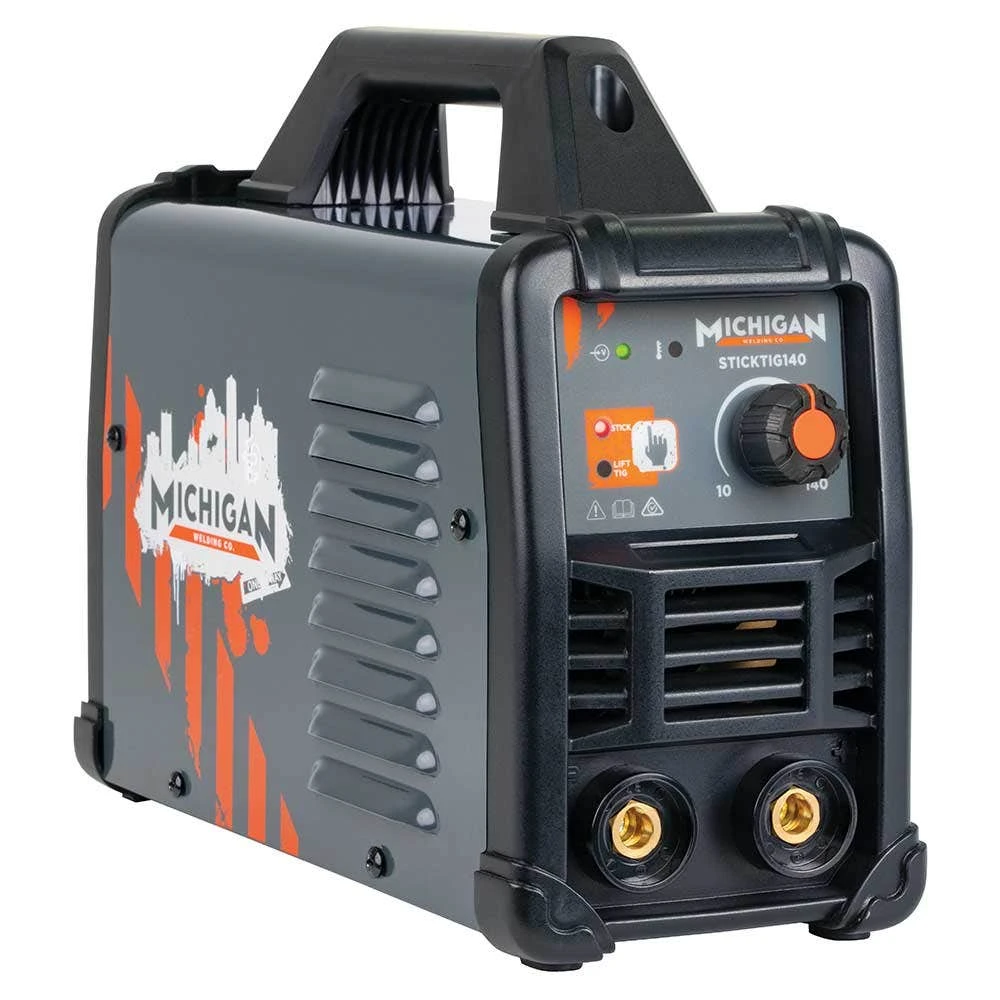

MICHIGAN 140A Stick DC TIG Welder STICKTIG140

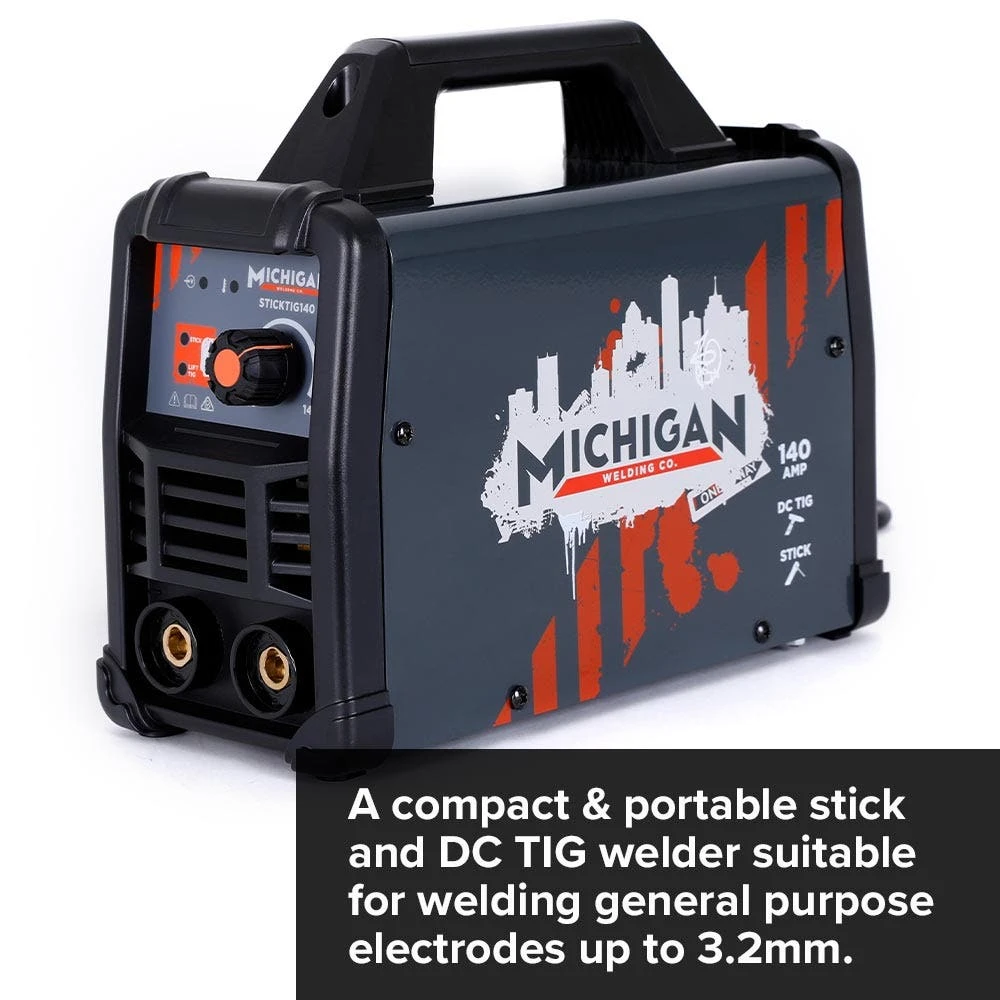

• A compact & portable stick and DC TIG welder suitable for welding general purpose electrodes up to 3.2mm.

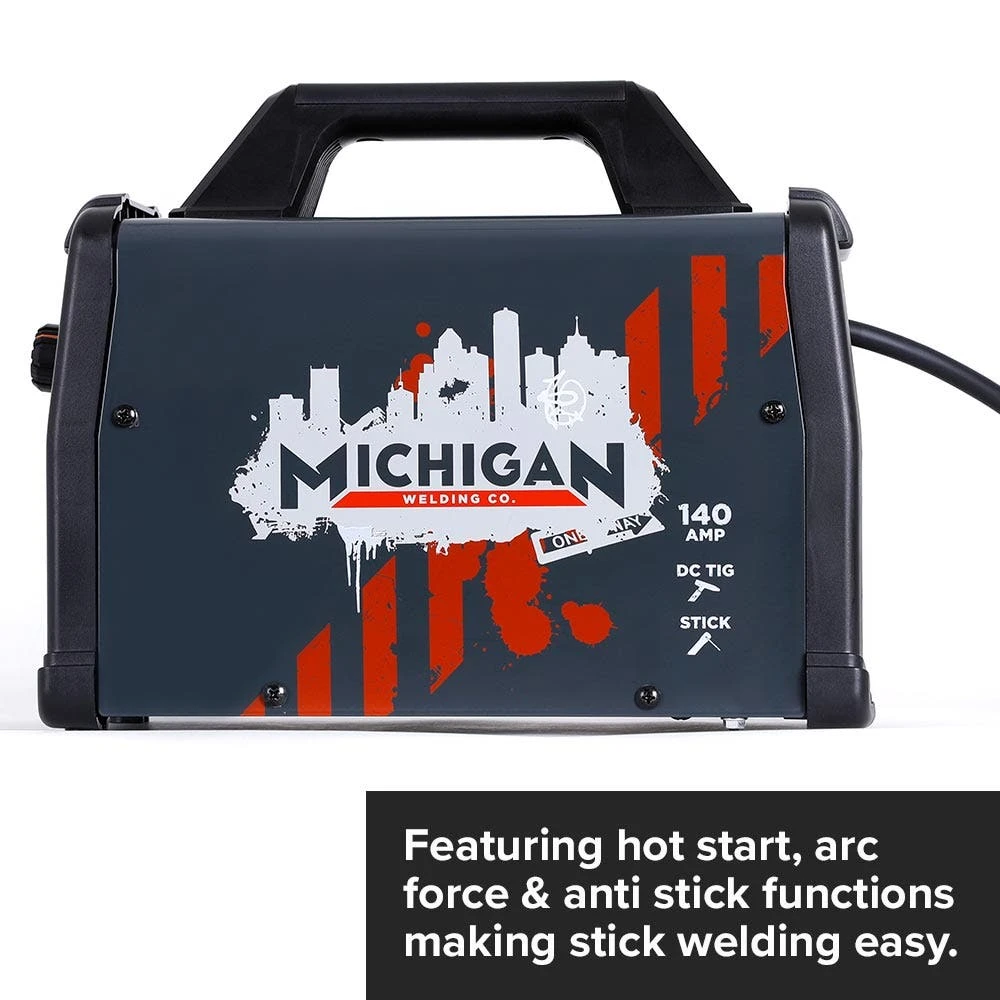

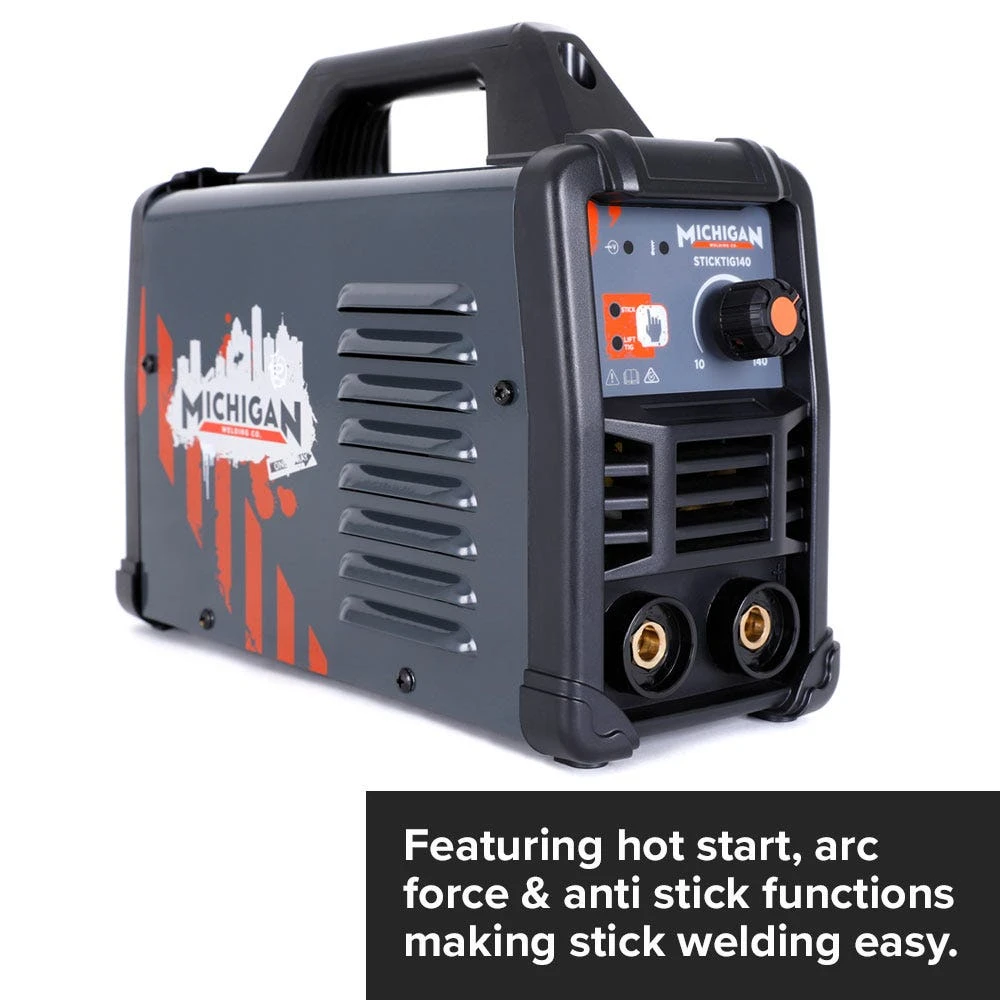

• Featuring hot start, arc force & anti stick functions making stick welding easy.

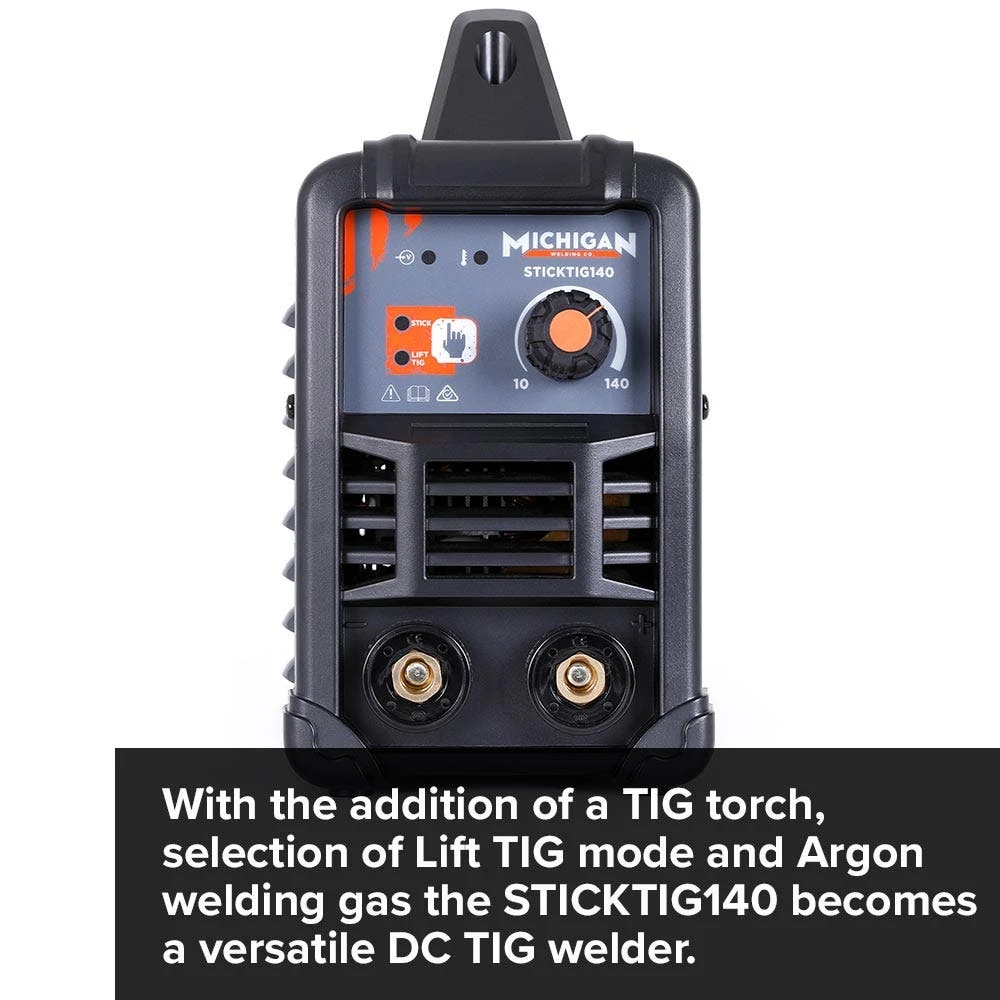

• With the addition of a TIG torch and selection of Lift TIG mode the STICKTIG140 becomes a versatile DC TIG welder.

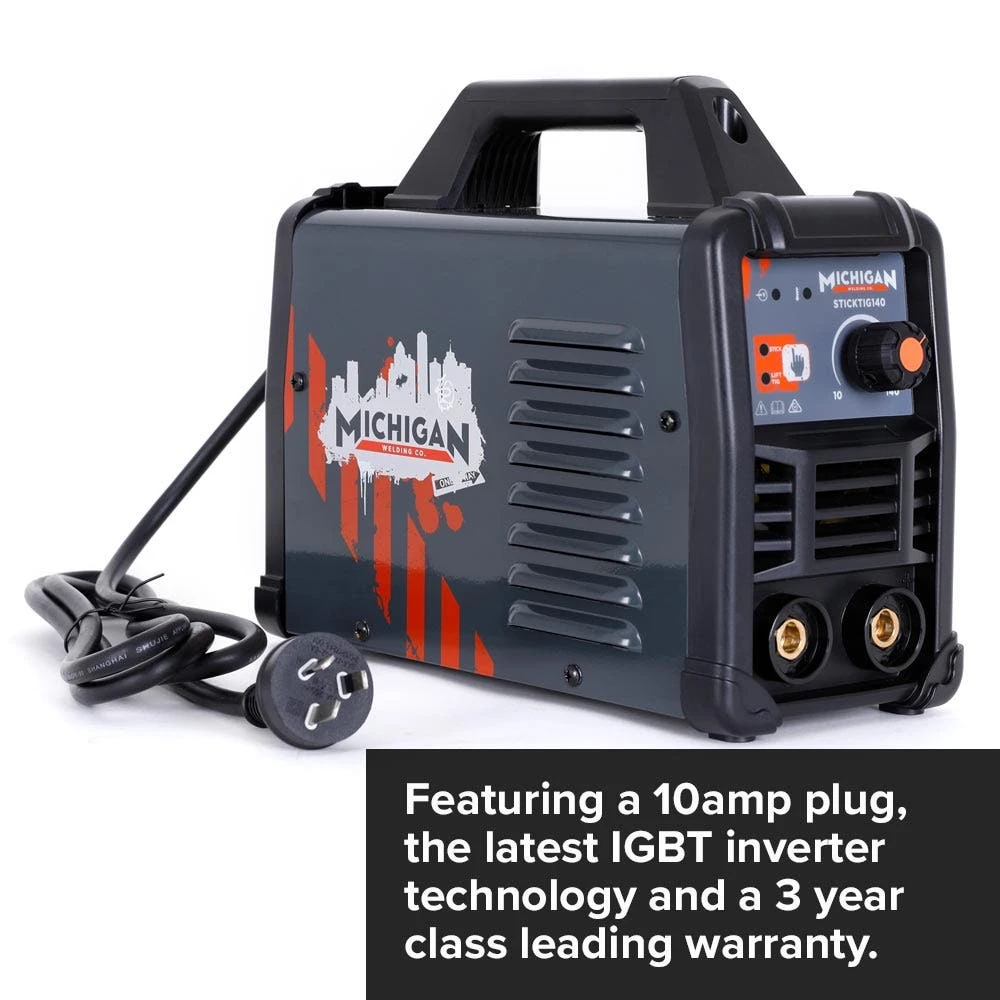

• Featuring a 10amp plug, the latest IGBT inverter technology and a 3 year class leading warranty.
• Compact and portable STICK (MMA) welder, ideal for DIY projects
• 10-140amp DC STICK (MMA) welder for 2.0-3.2mmØ General Purpose (GP) Electrodes
• 10amp Plug and cable
• DC lift TIG function
• Features hot start, arc force & anti stick functions

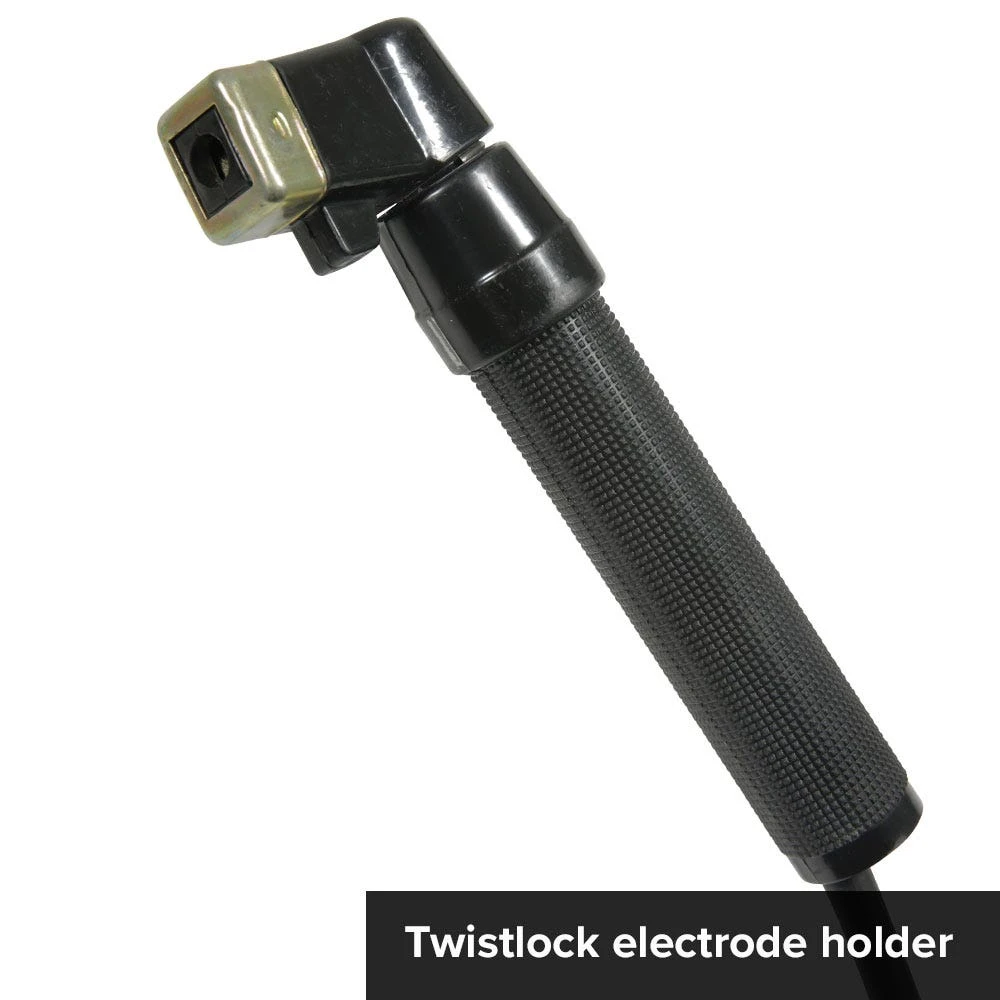

• Professional twist-lock electrode holder with 3m lead

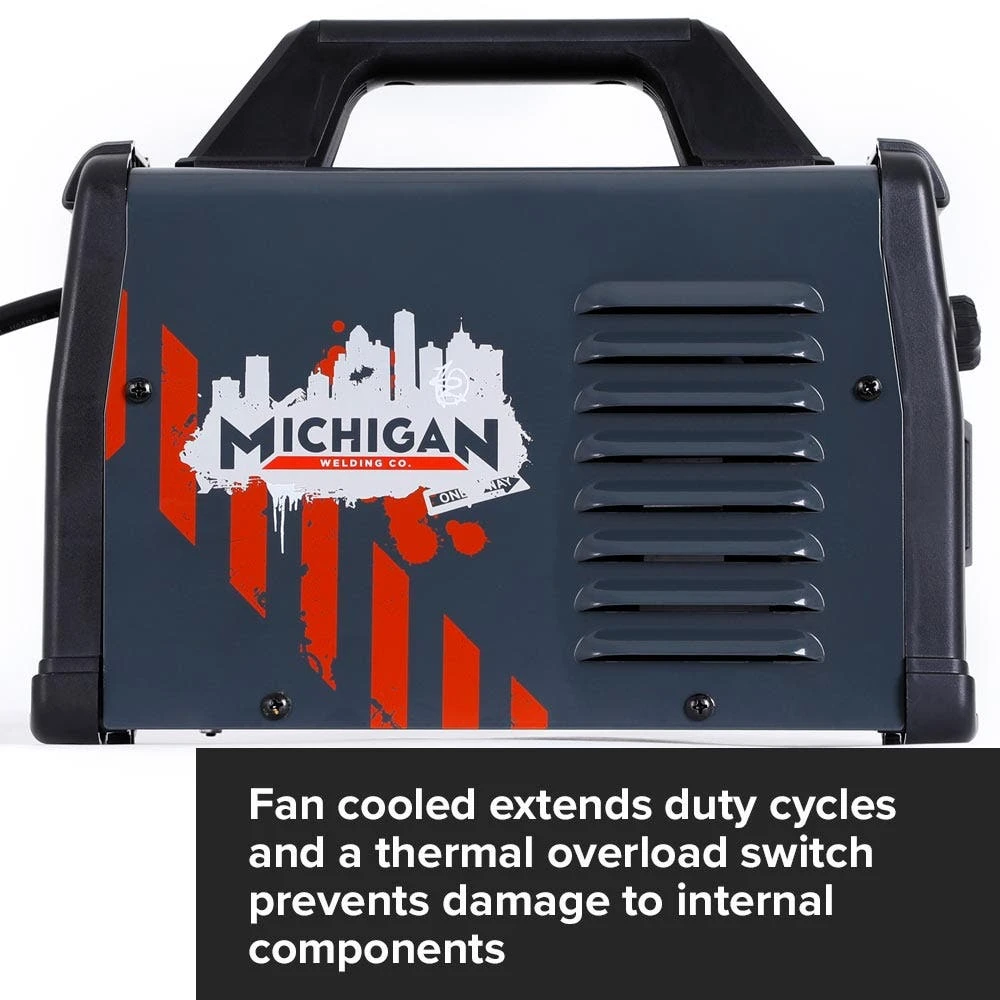

• Thermal overload switch prevents damage to internal components
• Fan cooled
• IGBT Inverter technology

Specifications:

• Input voltage: 240V/50Hz (+/- 15%)
• Plug & cable: 10A, 3G1.5mm2 Core (2m length)
• Output amp range: 10-140A
• 10-25 Dinse plug
• Recommended generator size: 6.5kVA
• OCV (Open Circuit Voltage): 92V (STICK), 14V (TIG)
• STICK (MMA) duty cycle at 40°C:15%@140A
• TIG duty cycle at 40°C:20%@140A
• Power source weight: 3.0kg
• IP rating IP21S
• Maximum size GP electrode 3.2mmØ
• Compliant to AS60974.1

Includes:

• 140A STICK DC TIG Welder

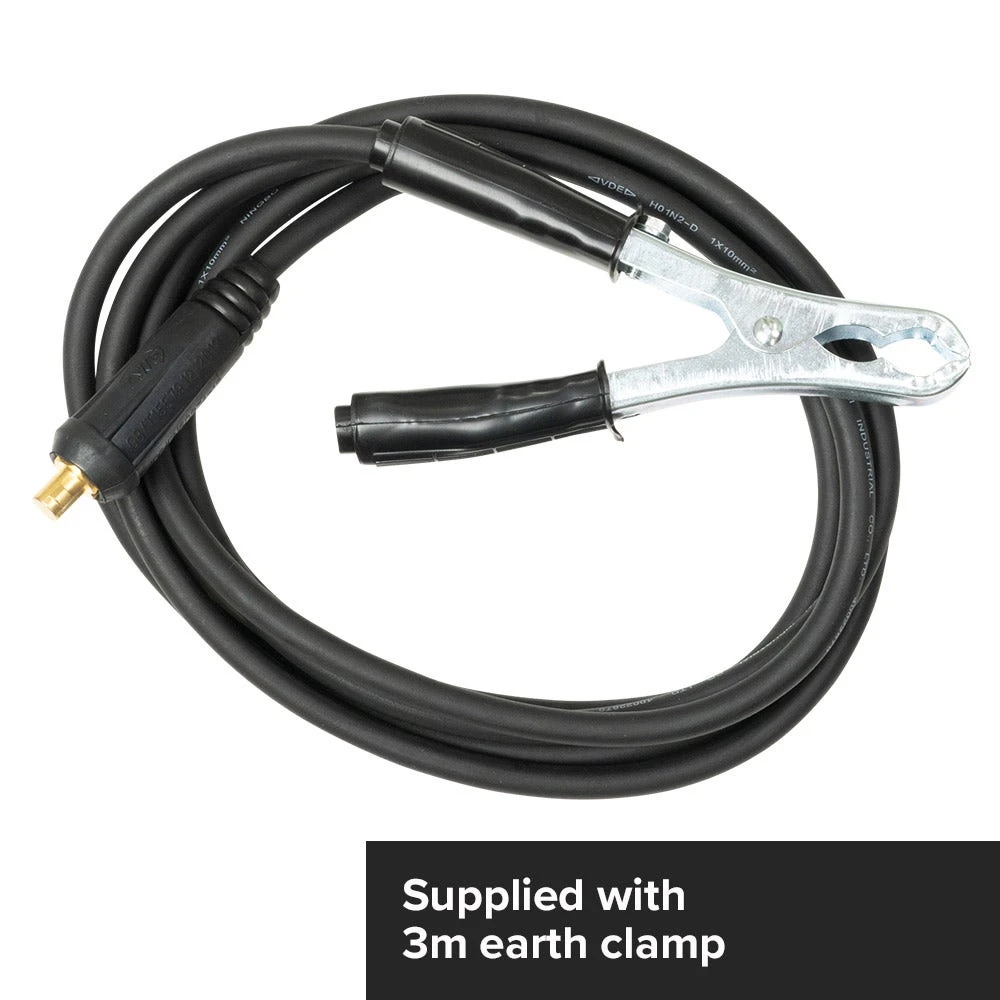

• 3m Earth clamp

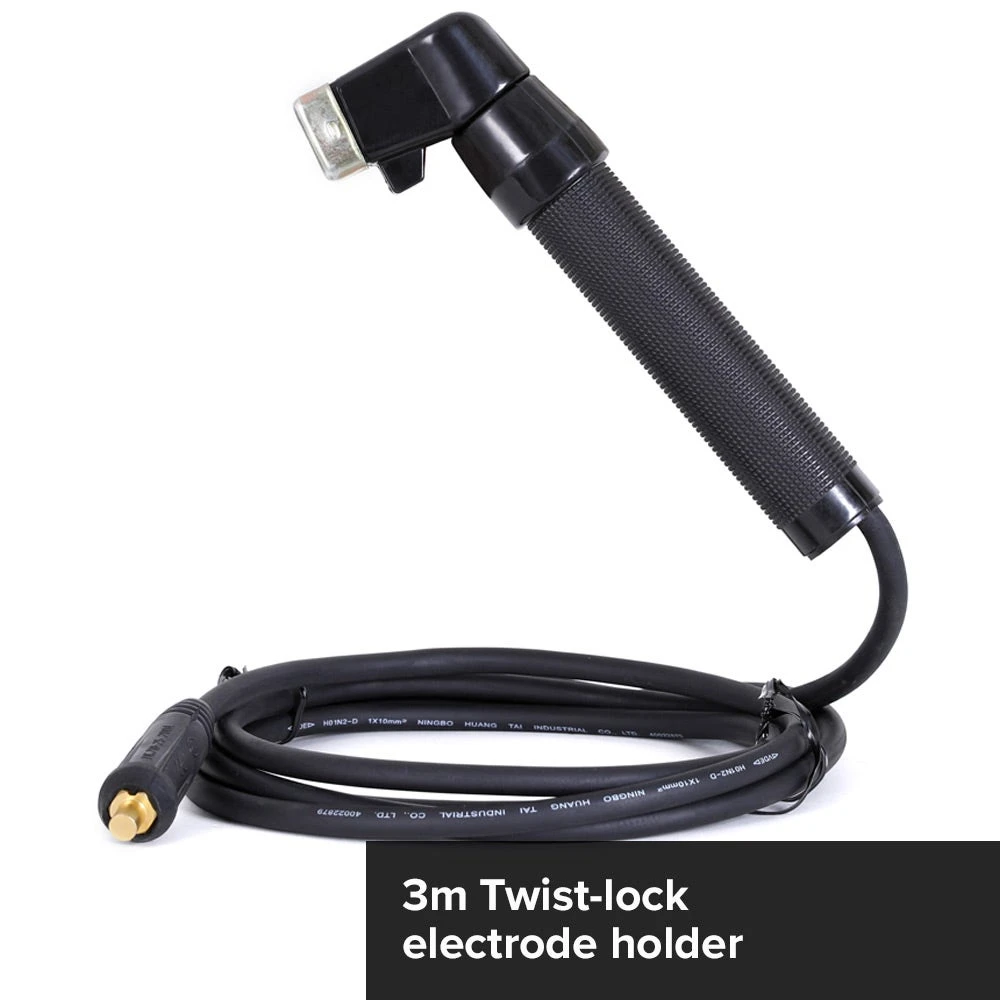

• 3m Twist-lock electrode holder
• Operating manual
