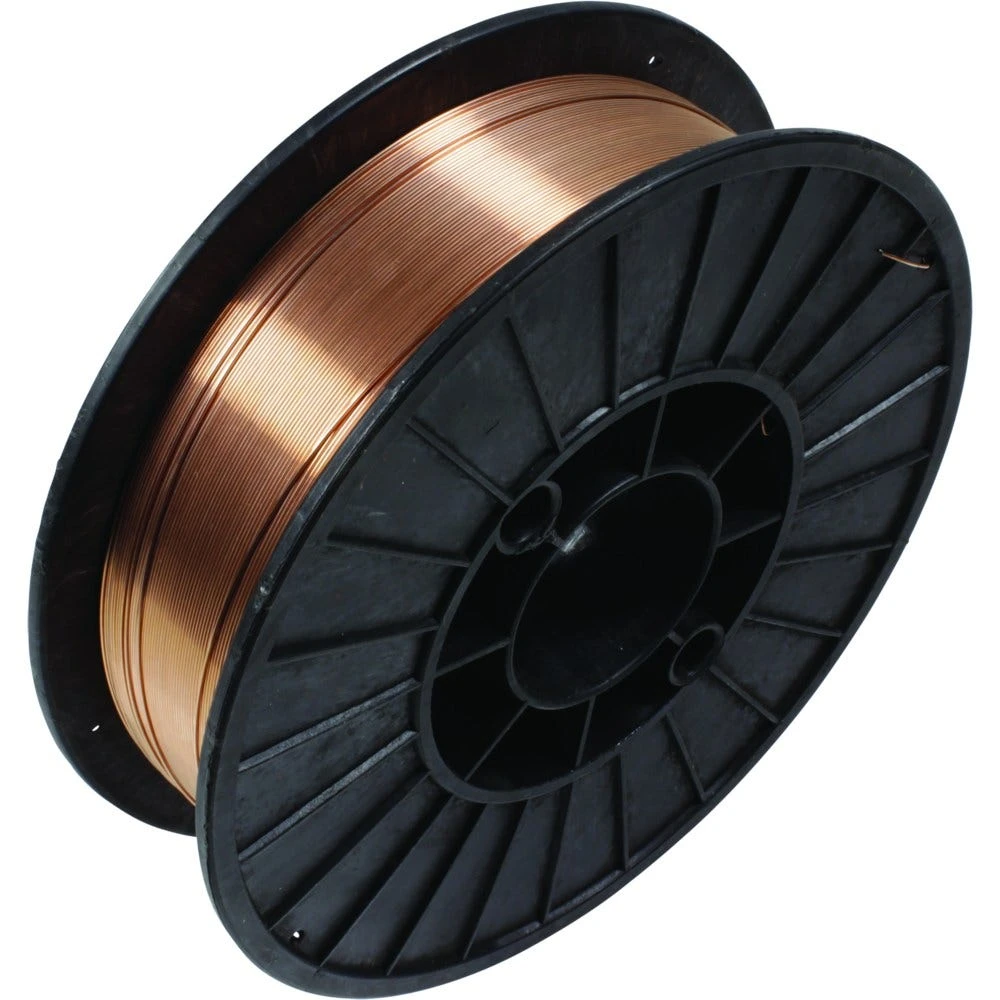

MICHIGAN 0.9mm 5kg Mild Steel Mig Wire MER70S60905

• A general purpose mild steel welding wire suitable for MIG (GMAW) applications, including multipass.
• Higher manganese and silicone content assists in de-oxidising base materials.
• Higher silicone content provides better wetting, flatter beed shapes and lower spatter than other grades of wire.
• DC EP – DC current, electrode positive polarity.
• Copper coated precision layer wound.

Specifications:

Recomended gases:

• 80% Argon / 20% CO2
• 92% Argon / 5% CO2 / 2% O2
• 100% 02

Classifications:

• ISO14341-A-G3Si1
• AS/NZS 14341:2012
• AWS A5:18
• ER70S-6

Typical Mechanical Properties Welding Grade C02:

• Yield Stress- 440 Mpa
• Tensile Strength 545 MPa
• Elongation 28%
• CVN Impact 91J (-30˚C)

Typical Mechanical Properties Welding Grade Argon & 10-25% CO2:

• Yield Stress- 450 Mpa
• Tensile Strength 560 MPa
• Elongation 28%
• CVN Impact 87J (-20˚C)

Approvals:

• Lloyds Register to Grade 3YS (Co2)
• Lloyds Register to Grade 4YS (80% Argon/20% CO2)
• American Bureau of Shipping to 4YSA
• DB Systemtechnik Germany
• Vd TUV

Spool dia – 200mm
